Baldor  |  SKU: BALAFL3524A

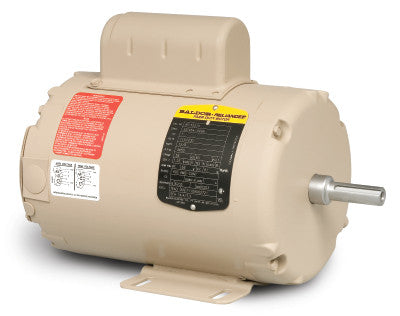

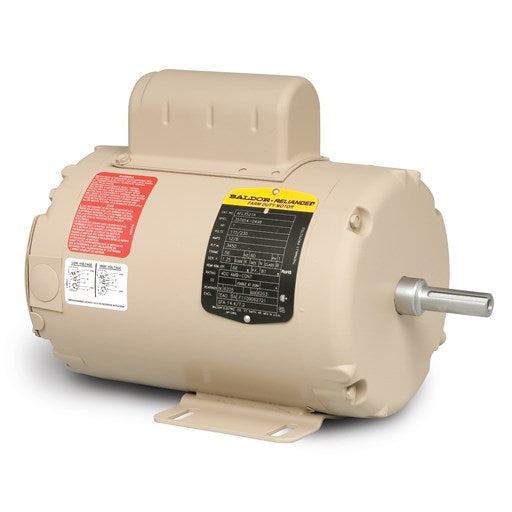

Baldor AFL3524A 3HP, 1PH, 230V TEAO Aeration Fan Motor

$831.74
Contact Us

Baldor AFL3524A 3 HP 3450 RPM TEAO Single Phase Fan Motor

Lubrication fittings on Nema T frames for easy on-site maintenance, Ball bearings, Corrosion protected with epoxy finish, Normally-closed thermostats on three phase motors, 52 pounds

Specifications:

  • SPEC. NUMBER | 35T906Y039
  • CATALOG NUMBER | AFL3524A
  • FL AMPS | 15
  • BEARING-DRIVE-END | 6205
  • BEARING-OPP-DRIVE-END | 6203
  • ENCLOSURE | TEAO
  • FRAME | 145TZ
  • HERTZ | 60
  • INSULATION-CLASS | B
  • KVA-CODE | H
  • SPEED [rpm] | 3450
  • OUTPUT [hp] | 3 AIR OVER
  • PHASE | 1
  • RATING | 40C AMB-CONT
  • SERVICE FACTOR | 1.00
  • VOLTAGE | 230



PLEASE NOTE, IMPORTANT INFORMATION:

  • Manufacturer's Warranty Only
  • By purchasing this item, you agree to Baldor's Terms and Conditions.
