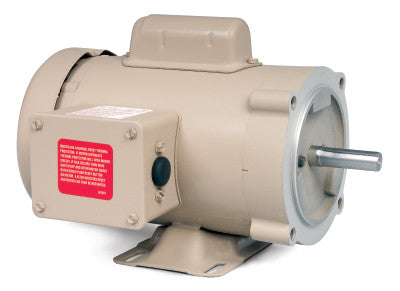

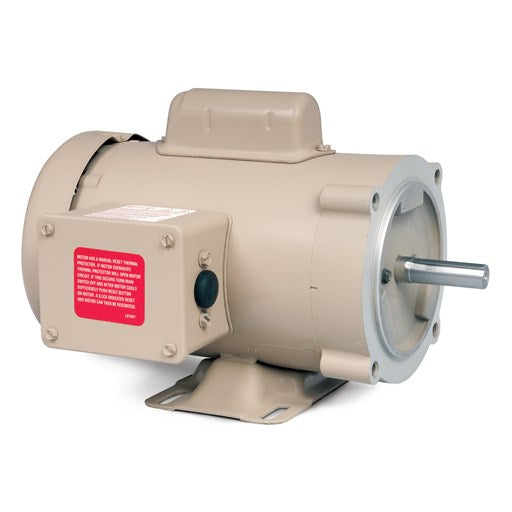

Baldor CFDL3514M 1 1/2 HP 1725 RPM Farm Duty Electric Motor

Features:

• High pressure grain drying and storage as well as a wide variety of commercial and farm duty applications
• Ball bearings lubricated with high temperature moisture-resistant grease.
• Condensation drains
• Gasketed cast conduit boxed.
• Farm duty epoxy paint for protection from harsh environments, 1.00 Service Factor
• Motors now have sealed bearings that are greased for life and provide superior protection against contaminant ingress
• Addition of V-ring slinger and contact lip seal on output shaft extension provide an extra measure of protection to keep contaminants out
• Tan epoxy paint protects motor from harsh environments
• Mobil Polyrex EM moisture resistant super premium grease
• 2-year limited warranty

Specifications:

• SPEC. NUMBER | 35E2322N451G1
• CATALOG NUMBER | CFDL3514M
• FL AMPS | 12.4/6.8-6.2
• 208V AMPS | --
• BEARING-DRIVE-END | 6205
• BEARING-OPP-DRIVE-END | 6203
• DESIGN CODE | L
• DOE-CODE | --
• FL EFFICIENCY | 80
• ENCLOSURE | TEFC
• FRAME | 56CH
• HERTZ | 60
• INSULATION-CLASS | B
• KVA-CODE | J
• SPEED [rpm] | 1725
• OUTPUT [hp] | 1.5
• PHASE | 1
• POWER-FACTOR | 96
• RATING | 40C AMB-CONT
• SERVICE FACTOR | 1.00
• VOLTAGE | 115/208-230
• WEIGHT | 51 lbs


PLEASE NOTE, IMPORTANT INFORMATION:

• Picture May Vary From Actual Product
• Manufacturer's Warranty Only!
