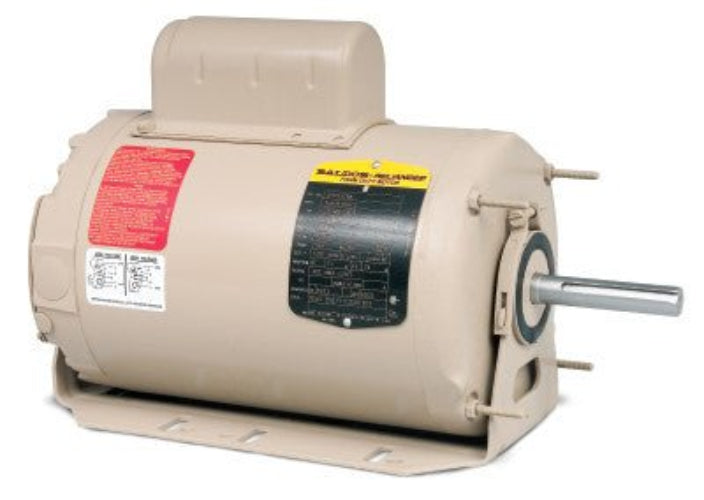

Baldor CHC3417A 1/3 HP 1100 RPM TEAO 1 PH HVAC Motor

This Baldor motor has double sealed ball bearings, rugged steel frame, corrosion resistant epoxy finish. 1" extended thru bolts. Permanent split capacitor.

Specifications:

SPEC. NUMBER | 34K52-5633
CATALOG NUMBER | CHC3417A
FL AMPS | 5.6/2.8
208V AMPS | --
BEARING-DRIVE-END | 6203
BEARING-OPP-DRIVE-END | 6203
DESIGN CODE | -
DOE-CODE | --
FL EFFICIENCY | 54
ENCLOSURE | TEAO
FRAHM | 48Z
HERTZ | 60
INSULATION-CLASS | B
KVA-CODE | F
SPEED [rpm] | 1100
OUTPUT [hp] | .33
PHASE | 1
POWER-FACTOR | 67
RATING | 40C AMB-CONT
SERIAL-NUMBER | --
SERVICE FACTOR | 1.00
VOLTAGE | 115/230
