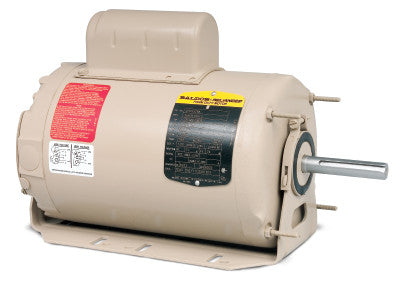

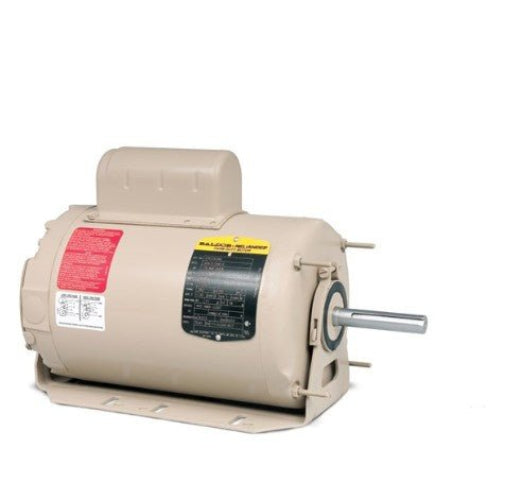

Baldor CHC3525A 1/2 HP 1100 RPM TEAO Single Phase HVAC Motor

This TEAO unit has a rugged steel frame, double sealed ball bearings, corrosion resistant expoxy finish, 1" extended thru bolts and permanent spit capacitor. Confinement houses, exhaust fans, air handling fans, unit heaters. 1/2 HP, 1100RPM, 1PH, 60HZ, 56Z, 3528C, TEAO, F1. Weight 28 pounds.

Specifications:

• SPEC. NUMBER | 35H317N460G1
• CATALOG NUMBER | CHC3525A
• FL AMPS | 5.2/2.6
• BEARING-DRIVE-END | 6203
• BEARING-OPP-DRIVE-END | 6203
• FL EFFICIENCY | 70
• ENCLOSURE | TEAO
• FRAME | 56Z
• HERTZ | 60
• INSULATION-CLASS | B
• KVA-CODE | C
• SPEED [RPM] | 1100
• OUTPUT [hp] | .5 AIR OVER
• PHASE | 1
• POWER-FACTOR | 92
• RATING | 40C AMB-CONT
• SERVICE FACTOR | 1.00
• VOLTAGE | 115/230

PLEASE NOTE, IMPORTANT INFORMATION:

Manufacturer's Warranty Only! By purchasing this item you agree to Baldor's Terms and Conditions.
