Baldor  |  SKU: BALCHC3526A

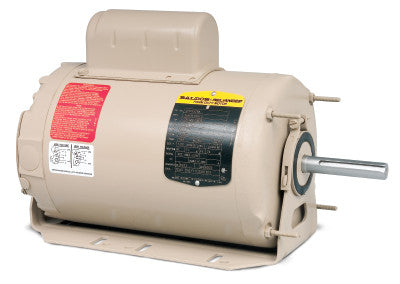

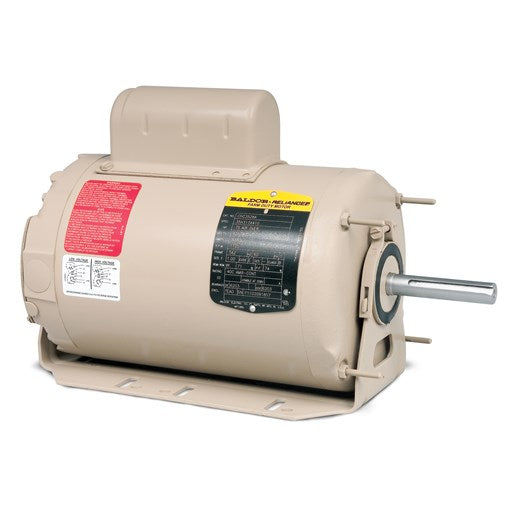

Baldor CHC3526A .5HP, 1PH, 115/230V TEAO Direct Drive Fan

$773.85
Contact Us

Baldor CHC3526A .5HP 825RPM 1PH TEAO

This Baldor motor has double sealed ball bearings, rugged steel frame, corrosion resistant epoxy finish. 1" extended thru bolts. Permanent split capacitor.

Specifications:

  • SPEC. NUMBER | 35H317X411
  • CATALOG NUMBER | CHC3526A
  • FL AMPS | 9.2/4.6
  • 208V AMPS | --
  • BEARING-DRIVE-END | 6203
  • BEARING-OPP-DRIVE-END | 6203
  • DESIGN CODE | -
  • DOE-CODE | --
  • FL EFFICIENCY | 50
  • ENCLOSURE | TEAO
  • FRAME | 56Z
  • HERTZ | 60
  • INSULATION-CLASS | B
  • KVA-CODE | F
  • SPEED (RPM) |825
  • OUTPUT (HP) | .5 AIR OVER
  • PHASE | 1
  • POWER-FACTOR | 68
  • RATING | 40C AMB-CONT
  • SERIAL-NUMBER | --
  • SERVICE FACTOR | 1.00
  • VOLTAGE | 115/230

PLEASE NOTE, IMPORTANT INFORMATION:

  • Manufacturer's Warranty Only!
