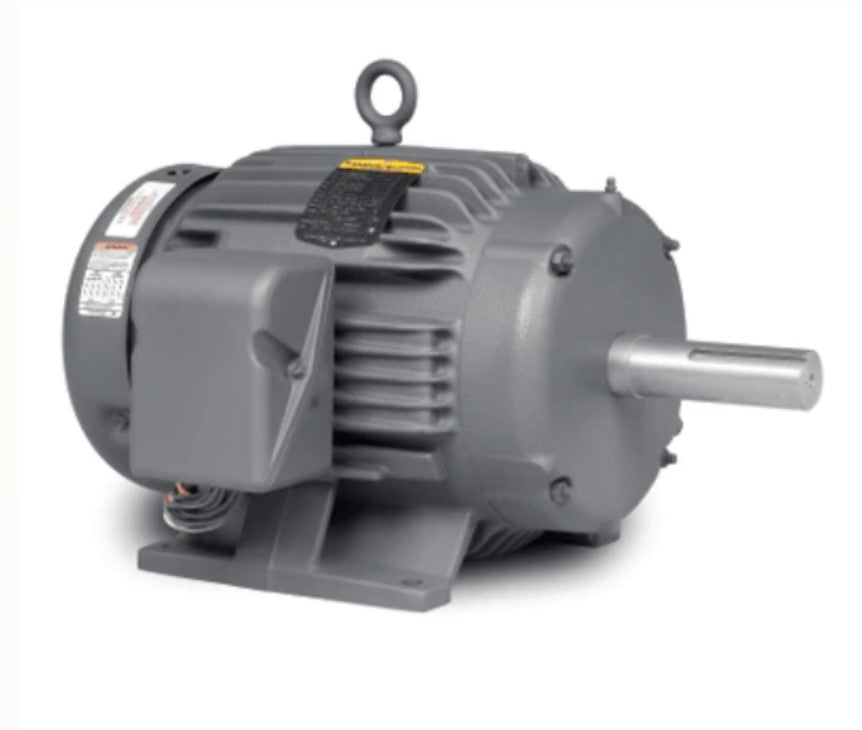

Baldor EGDM3615T 5HP, 1750RPM, 3PH, 60HZ, 184TZ, 3642M, TEFC, F1 Farm Motor

High pressure grain drying and storage, as well as a wide variety of commercial and farm duty applications, Ball bearings, lubricated with high temperature moisture-resistant grease Condensation drains, Gasketed cast conduit boxed, Farm duty epoxy paint for protection from harsh environments, 1.00 Service Factor, Motors now have sealed bearings that are greased for life and provide superior protection against contaminant ingress, Addition of V-ring slinger and contact lip seal on output shaft extension provide an extra measure of protection to keep contaminants out, Tan epoxy paint protects motor from harsh environments, Mobil Polyrex EM moisture resistant super premium grease, 2 year limited warranty

Specifications:

• ENCLOSURE | TEFC
• FRAME | 184TZ
• FRAME MATERIAL | STEEL
• FREQUENCY | 60 Hz
• OUTPUT @ FREQUENCY | 5 HP @ 60 HZ
• PHASE | 3
• SYNCHRONOUS SPEED @ FREQUENCY | 1800 RPM @ 60 HZ
• VOLTAGE @ FREQUENCY | 208V @ 60 HZ // 460 V @ 60 HZ // 230 V @ 60 HZ
• AMBIENT TEMPERATURE | 40°  C
• AUXILLARY BOX | NO
• BASE INDICATOR | RIGID
• BEARING GREASE TYPE | Polyrex EM (-20F + 300F)
• BLOWER | NONE
• CURRENT @ VOLTAGE | 6.700 A @ 460 // 13.900 A @ 208V // 13.400 A @ 230 V
• DESIGN CODE | B
• DUTY RATING | CONT
• EFFICIENCY @ 100% LOAD | 89.5%
• ELECTRICALLY ISOLATED BEARING | NOT ELECTRICALLY ISOLATED
• FEEDBACK DEVICE | NO
• FRONT FACE CODE | STANDARD
• FRONT SHAFT INDICATOR | NONE
• HEATER INDICATOR | NO HEATER
• HIGH VOLTAGE FULL LOAD AMPS | 6.7 a
• INSULATION CLASS | F
• INVERTER CODE | INVERTER READY
• KVA CODE | J
• LIFTING LUGS | No LIFT LUGS
• LOCKING BEARING INDICATOR | NO LOCKED BEARING
• MOTOR LEAD EXIT | Ko BOX
• MOTOR LEAD QUANTITY / WIRE SIZE | 9 @ 16 AWG
• MOTOR LEAD TERMINATION | FLYING LEADS
• MOTOR STANDARDS | NEMA
• MOTOR TYPE | 3642M
• MOUNTING ARRANGEMENT | F1
• NUMBER OF POLES | 4
• OVERALL LENGTH | 19.05 IN
• POWER FACTOR | 83
• PRODUCT FAMILY | GENERAL PURPOSE
• PULLEY END BEARING TYPE | SEALED BEARING
• PULLEY FACE CODE | STANDARD
• PULLEY SHAFT INDICATOR | STANDARD
• RODENT SCREEN | NONE
• SERVICE FACTOR | 1.15
• SHAFT DIAMETER | 1.125"
• SHAFT EXTENSION LOCATION | PULLEY END
• SHAFT ROTATION | REVERSIBLE
• SHAFT SLINGER INDICATOR | SHAFT SLINGER
• SPEED | 1750 RPM
• SPEED CODE | SINGLE SPEED
• STARTING METHOD | DIRECT ON LINE

PLEASE NOTE, IMPORTANT INFORMATION:

• This Baldor Grinder ships by truck and the shipping charges calculated are to a commercial address only. If non-commercial, check the residential shipping option above.

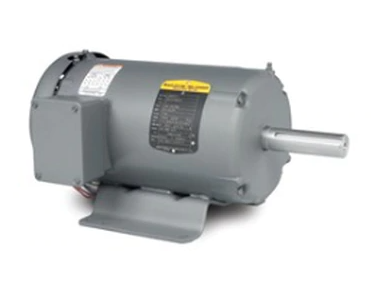

• ** IMAGE SHOWN IS JUST FOR REPRESENTATION, ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN **
• Manufacturer's Warranty Only!
• By purchasing this item you agree to Baldor's Terms and Conditions.
