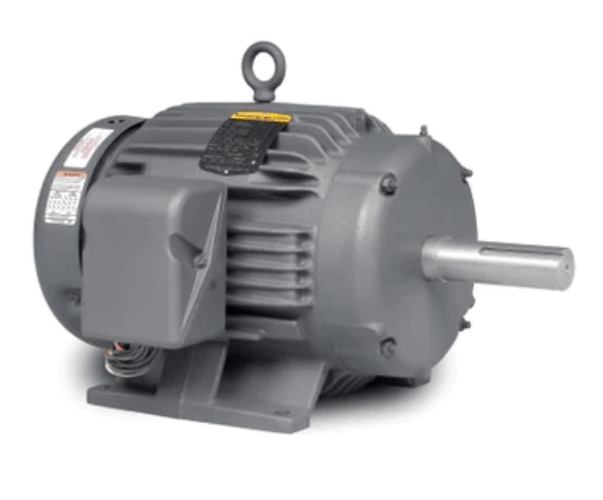

Baldor Egdm 4115t 50hp, 1775rpm, 3ph, 60hz, 326tz, 1272m, Tefc, F Farm Motor

High Pressure Grain Drying And Storage, As Well As A Wide Variety Of Commercial And Farm Duty Applications, Ball Bearings, Lubricated With High Temperature Moisture-Resistant Grease Condensation Drains, Gasketed Cast Conduit Boxed, Farm Duty Epoxy Paint For Protection From Harsh Environments, 1.00 Service Factor, Motors Now Have Sealed Bearings That Are Greased For Life And Provide Superior Protection Against Contaminant Ingress, Addition Of V-Ring Slinger And Contact Lip Seal On Output Shaft Extension Provide An Extra Measure Of Protection To Keep Contaminants Out, Tan Epoxy Paint Protects Motor From Harsh Environments, Mobil Polyrex Em Moisture Resistant Super Premium Grease, 2 Year Limited Warranty.

Specification

• Enclosure | Tefc
• Frahm | 326tz
• Frahm Material | Iron
• Frequency | 60 Hz
• Output @ Frequency | 50.000 Hp @ 60 Hz
• Phase | 3
• Synchronous Speed @ Frequency | 1800 Rpm @ 60 Hz
• Voltage @ Frequency | 460.0 V @ 60 Hz // 230.0 V @ 60 Hz
• Xp Class And Group | Na
• Ambient Temperature | 40° C
• Auxillary Box | No Auxillary Box
• Base Indicator | Rigid
• Bearing Grease Type | Polyrex Em (-20f + 300f)
• Current @ Voltage | 116.000 A @ 230.0 V // 128.000 A @ 208.0 V // 58.000 A @ 460.0 V
• Design Code | A
• Drip Cover | No Drip Cover
• Duty Rating | Cont
• Efficiency @ 100% Load | 94.5%
• Electrically Isolated Bearing | Not Electrically Isolated
• Front Face Code | Standard
• High Voltage Full Load Amps | 58.0 A
• Insulation Class | F
• Inverter Code | Invert Ready
• Kva Code | H
• Lifting Lugs | Standard Lifting Lugs
• Locked Bearing Indicator | Locked Bearing
• Motor Lead Exit | Ko Box
• Motor Lead Quanity / Wire Size | 9 @ 6 Awg
• Motor Lead Termination | Flying Leads
• Motor Standards | Nema
• Motor Type | 1272m
• Mounting Arrangement | F1
• Number Of Poles | 4
• Overall Length | 31.28 In
• Power Factor | 85
• Product Family | General Purpose
• Pulley End Bearing Type | Sealed Bearing
• Pulley Face Code | Standard
• Pulley Shaft Indicator | Standard
• Sevice Factor | 1.15
• Shaft Diameter | 2.125 In
• Shaft Extension Location | Pulley End
• Shaft Ground Indicator | No Shaft Grounding
• Shaft Rotation | Reversible
• Shaft Slinger Indicator | Shaft Slinger
• Speed | 1775 Rpm
• Speed Code | Single Speed
• Starting Method | Direct On Line

Please Note, Important Information:

• This Baldor Grinder Ships By Truck And The Shipping Charges Calculated Are To A Commercial Address Only. If Non-Commercial, Check The Residential Shipping Option Above.
• Manufacturer's Warranty Only!
• By Purchasing This Item You Agree To Baldor's Terms And Conditions.
