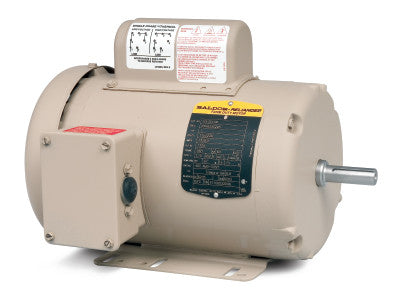

Baldor FDL3510TM TEFC Single Phase Farm Duty Motor

Applications:

• Wide variety of agri-duty and industrial applications.

Features:

• Sealed ball bearings, Lubricated with high temperature moisture resistant grease
• Drive end seal and v-ring slinger to prevent moisture and contaminant ingress
• Condensation drains, gasketed cast conduit boxes
• Epoxy paint protects motor from harsh environments

Specifications:

• Catalog Number | FDL3510TM
• Enclosure | TEFC
• Frame | 143T
• Frame Material | Steel
• Output @ Frequency | 1.000 HP @ 60 HZ
• Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ
• Voltage @ Frequency:
• 230.0 V @ 60 HZ
• 115.0 V @ 60 HZ
• XP Class and Group | None
• XP Division | Not Applicable
• Agency Approvals:
• CSA
• UR
• Auxillary Box | No Auxillary Box
• Auxillary Box Lead Termination | None
• Base Indicator | Rigid
• Bearing Grease Type | Polyrex EM (-20F +300F)
• Blower | None
• Current @ Voltage | 13.000 A @ 115.0 V
• Inverter Code | Not Inverter
• KVA Code | K
• Lifting Lugs | No Lifting Lugs
• Locked Bearing Indicator | No Locked Bearing
• Motor Lead Quantity/Wire Size | 4 @ 16 AWG, A&J
• Motor Lead Exit | Ko Box
• Motor Lead Termination | Flying Leads
• Motor Type | 3524L
• Mounting Arrangement | F1
• Power Factor | 73
• Product Family | General Purpose
• Product Type | FARM DUTY
• Pulley End Bearing Type | Sealed Bearing
• Pulley Face Code | Standard
• Pulley Shaft Indicator | Standard
• Rodent Screen | None
• Shaft Extension Location | Pulley End
• Shaft Ground Indicator | No Shaft Grounding
• Design Code | L
• Drip Cover | No Drip Cover
• Duty Rating | CONT
• Electrically Isolated Bearing | Not Electrically Isolated
• Feedback Device | NO FEEDBACK
• Front Face Code | Standard
• Front Shaft Indicator | None
• Heater Indicator | No Heater
• Insulation Class | F
• Shaft Rotation | Reversible
• Shaft Slinger Indicator | Shaft Slinger
• Speed Code | Single Speed
• Motor Standards | NEMA
• Starting Method | Direct on line
• Thermal Device - Bearing | None
• Thermal Device - Winding | None
• Vibration Sensor Indicator | No Vibration Sensor
• Winding Thermal 1 | Manual Thermal Overload
• Winding Thermal 1 Location | KO
• Winding Thermal 2 | None

PLEASE NOTE, IMPORTANT INFORMATION:

• Picture May Vary From Actual Product
• Manufacturer's Warranty Only!
