Baldor  |  SKU: BALIR3507M

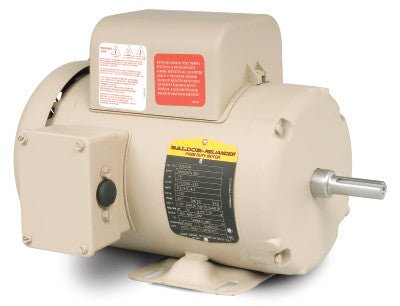

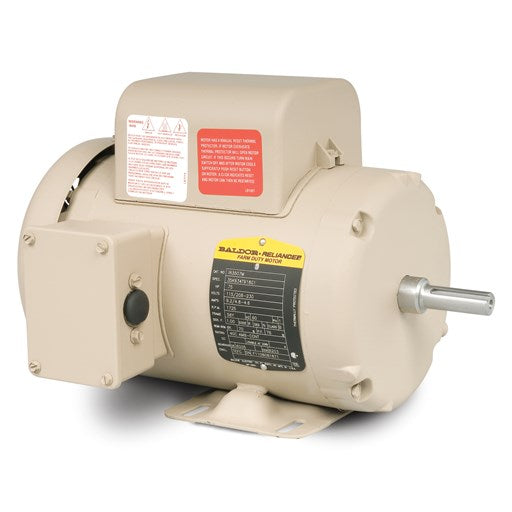

Baldor IR3507M 3/4HP, 1PH, 115/208-230V TEFC Instant Reversing Motor

$679.41
Contact Us

Baldor IR 3507M 3/4 HP 1725 RPM TEAO Single Phase Instant Reversing Motors

Farm Duty epoxy paint protects motor from harsh environment, Manual thermal with cover mountedin conduit box for protection Ball bearings, Condensation drains, Heavy gauge steel construction.

Specifications:

  • SPEC. NUMBER | 35K634T918G1
  • CATALOG NUMBER | IR3507M
  • FL AMPS | 9.2/8-4.6
  • BEARING-DRIVE-END | 6205
  • BEARING-OPP-DRIVE-END | 6203
  • DESIGN CODE | N
  • FL EFFICIENCY | 70
  • ENCLOSURE | TEFC
  • FRAME | 56Y
  • HERTZ | 60
  • INSULATION-CLASS | B
  • KVA-CODE | K
  • SPEED [rpm] | 1725
  • OUTPUT [hp] | .75
  • PHASE | 1
  • POWER-FACTOR | 76
  • RATING | 40C AMB-CONT
  • SERVICE FACTOR | 1.00
  • VOLTAGE | 115/208-230

PLEASE NOTE, IMPORTANT INFORMATION:

  • This Baldor Grinder ships by truck and someone will need to be present when delivered. Check one of the boxes above for Residential/Farm or Liftgate if needed
  • Manufacturer's Warranty Only! By purchasing this item you agree to Baldor's Terms and Conditions.
