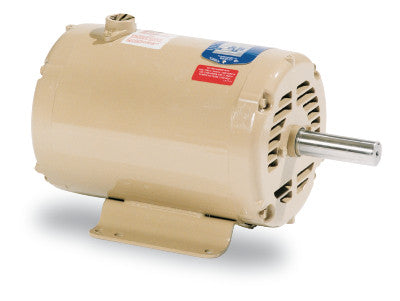

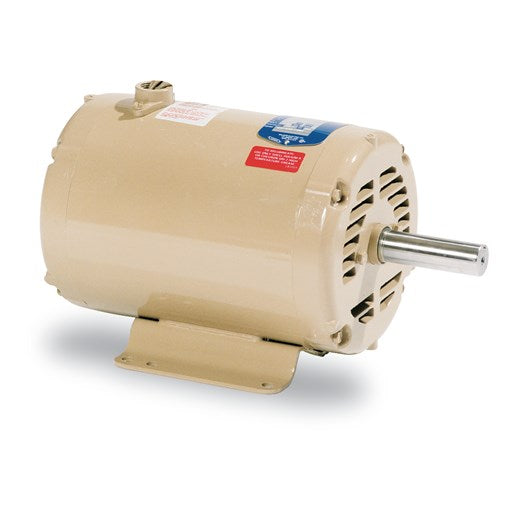

Baldor UCC5700 5-7 HP 3450 RPM OPAO Single Phase OPAO Universal Crop Dryer Motors

Specifically engineered for use on vane axial fan crop dryers, TEAO design prevents entrance of rodents, insects and other foreign matter, High full load efficiency forreduced operating cost, No mechanical switch to wear, No noise and vibration from regeneration, Less sensitive to voltage variations, Soft start, Thermostats, Epoxy paint, 1.00 Service Factor

Specifications:

• VOLTAGE | 230
• SERVICE FACTOR | 1.00
• RATING | 40C AMB-CONT
• POWER-FACTOR | 97
• PHASE | 1
• OUTPUT [hp] | 5-7 AIR OVER
• SPEED [rpm] | 3450
• KVA-CODE | C
• INSULATION-CLASS | F
• HERTZ | 60
• FRAME | 184TZ
• ENCLOSURE | OPEN
• FL EFFICIENCY | 79
• BEARING-OPP-DRIVE-END | 6205
• BEARING-DRIVE-END | 6206
• FL AMPS | 19.5-29
• CATALOG NUMBER | UCC5700
• SPEC. NUMBER | 36F548W873
