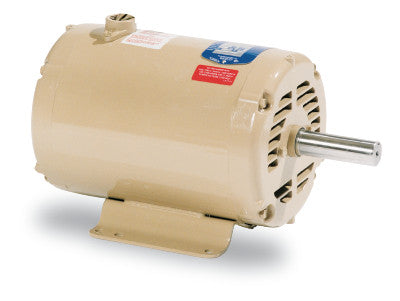

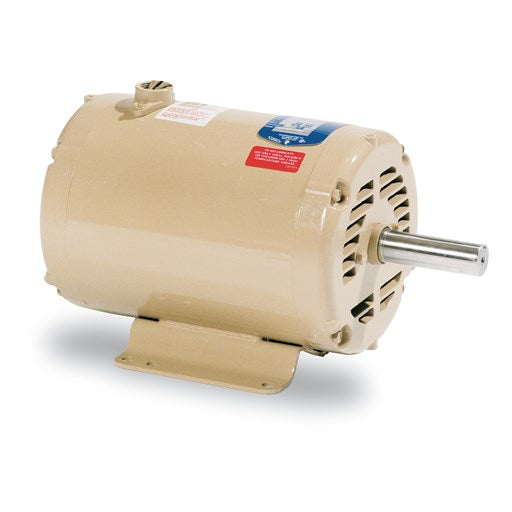

Baldor UCC7100 7.5-10 HP 3450 RPM Single Phase OPAO Universal Crop Dryer Motors

TEAO design prevents entrance of rodents, insects and other foreign matter, High full load efficiency forreduced operating cost, No mechanical switch to wear, No noise and vibration from regeneration, Less sensitive to voltage variations, Soft start, Thermostats, Epoxy paint 1.00 Service Factor 78 pounds.

Specifications:

• VOLTAGE | 230
• SERVICE FACTOR | 1.00
• RATING | 40C AMB-CONT
• POWER-FACTOR | 95
• PHASE | 1
• OUTPUT [hp] | 7.5-10 AIR OVER
• SPEED [rpm] | 3450
• KVA-CODE | D
• INSULATION-CLASS | F
• HERTZ | 60
• FRAME | 184TZ
• ENCLOSURE | OPEN
• FL EFFICIENCY | 85.5
• BEARING-OPP-DRIVE-END | 6205
• BEARING-DRIVE-END | 6206
• FL AMPS | 28-39
• CATALOG NUMBER | UCC7100
• SPEC. NUMBER | 36F548W881
