Baldor | SKU:
BALUCL345

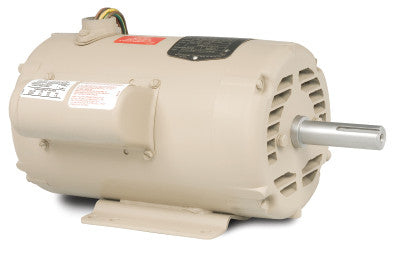

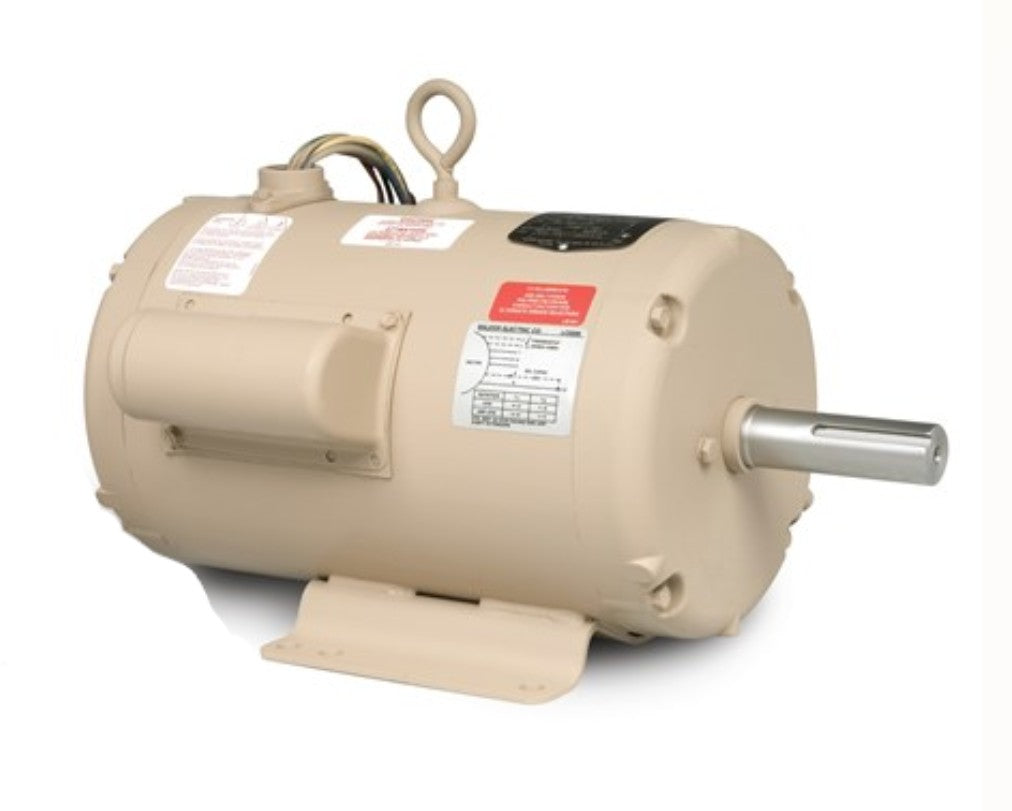

Baldor UCL345 3/4.5HP, 1PH, 230V OPAO Grain Dryer/Vane Axial Fan
$1,089.49
Unit price
/
Unavailable
Baldor UCL345 3/4.5HP, 1PH, 230V OPAO Grain Dryer/Vane Axial Fan is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Baldor UCL345 3-4.5 HP 3450 RPM Single Phase OPAO Grain Dryer Vane Axial Fan Motors
Features:
- Specifically engineered for use on vane axial fan crop dryers
- Shaft 3/4" longer than NEMA standard
- Shaft keyed, drilled and tapped with internal 1/4-20 tap1" deep 1.00 Service Factor
- Thermostats
- Epoxy paint
Specifications:
- VOLTAGE | 230
- SERVICE FACTOR | 1.00
- RATING | 40C AMB-CONT
- POWER-FACTOR | 86
- PHASE | 1
- OUTPUT [hp] | 3-4.5 AIR OVER
- SPEED [rpm] | 3450
- KVA-CODE | F
- INSULATION-CLASS | F
- HERTZ | 60
- FRAME | 182Z
- ENCLOSURE | OPEN
- FL EFFICIENCY | 74
- DESIGN CODE | L
- BEARING-OPP-DRIVE-END | 6205
- BEARING-DRIVE-END | 6206
- FL AMPS | 22
- CATALOG NUMBER | UCL345
- SPEC. NUMBER | 36F549-2510
- WEIGHT | 72 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This Baldor Grinder ships by truck and someone will need to be present when delivered. Check one of the boxes above for Residential/Farm or Liftgate if needed.
- Manufacturer's Warranty Only!
- By purchasing this item you agree to Baldor's Terms and Conditions.
