Baldor | SKU:
BALUCME1014
Baldor UCME1014 10/14HP, 3PH, 208-230/460V OPAO Grain Dryer/Vane Axial Fan
$1,512.37
Unit price
/
Unavailable
Baldor UCME1014 10/14HP, 3PH, 208-230/460V OPAO Grain Dryer/Vane Axial Fan is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

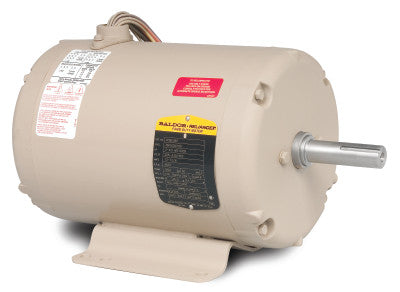

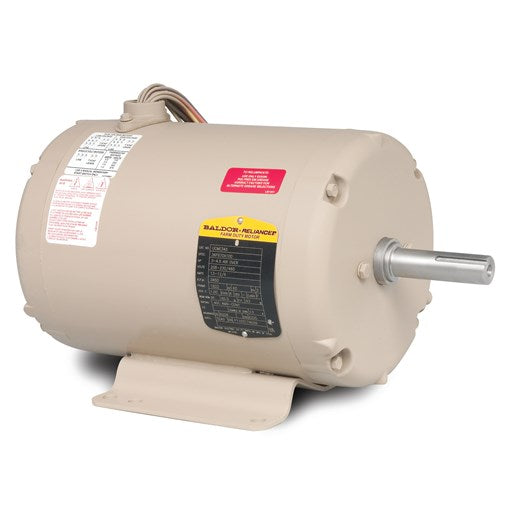

Baldor UCME1014 10-14 HP 3450 RPM Three Phase OPAO Grain Dryer Vane Axial Fan Motor
Specifically engineered for use on vane axial fan crop dryers, Shaft 3/4" longer than NEMA standard, Shaft keyed, drilled and tapped with internal 1/4-20 tap 1" deep 1.00 Service Factor, Thermostats, Epoxy paint, 101 pounds
Specifications:
- CATALOG NUMBER | UCME1014
- FL AMPS | 35-33/16.5
- 208V AMPS | 35
- BEARING-DRIVE-END | 6307
- BEARING-OPP-DRIVE-END | 6206
- DESIGN CODE | B
- ENCLOSURE | TEAO
- FRAME | 215Z
- HERTZ | 60
- VOLTAGE | 208-230/460
- SPEC. NUMBER | 37N422Y842G1
- SERVICE FACTOR | 1.0
- RATING | 40C AMB-CONT
- PHASE | 3
- OUTPUT [hp] | 10-14 AIR OVER
- SPEED [rpm] | 3450
- KVA-CODE | H
- INSULATION-CLASS | F
- SPEC. NUMBER | 37N422Y842G1
PLEASE NOTE, IMPORTANT INFORMATION:
- This Baldor Grinder ships by truck and someone will need to be present when delivered. Check one of the boxes above for Residential/Farm or Liftgate if needed.
- Manufacturer's Warranty Only!
- By purchasing this item you agree to Baldor's Terms and Conditions.
