Baldor | SKU:
BALUCME7510

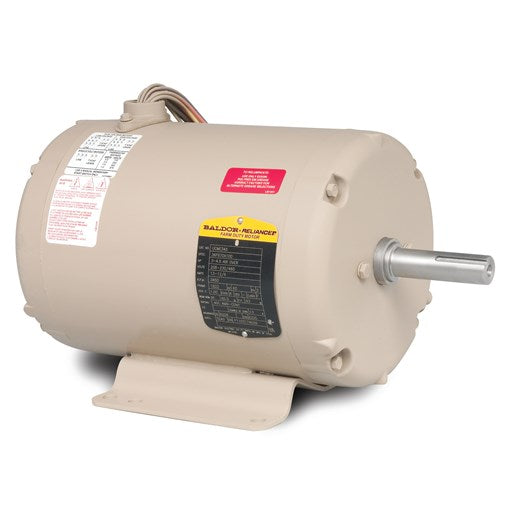

Baldor UCME7510 7.5/10HP, 3PH, 230/460V TEAO Grain Dryer/Vane Axial Fan
$1,183.93
Unit price
/
Unavailable
Baldor UCME7510 7.5/10HP, 3PH, 230/460V TEAO Grain Dryer/Vane Axial Fan is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

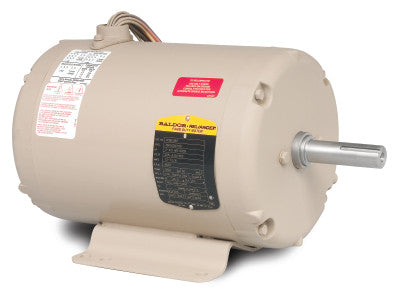

Baldor UCME7510 7.5-10 HP 3450 RPM Three Phase OPAO Grain Dryer Vane Axial Fan Motor
Specifically engineered for use on vane axial fan crop dryers, Shaft 3/4" longer than NEMA standard, Shaft keyed, drilled and tapped with internal 1/4-20 tap 1" deep, Thermostats, Epoxy paint
Specifications:
- VOLTAGE | 230/460
- SERVICE FACTOR | 1.00
- RATING | 40C AMB-CONT
- POWER-FACTOR | 94
- PHASE | 3
- OUTPUT [hp] | 7.5-10 Air Over
- SPEED [rpm] | 3450
- KVA-CODE | G
- INSULATION-CLASS | F
- HERTZ | 60
- FRAME | 182TZ
- ENCLOSURE | TEAO
- FL EFFICIENCY | 86.5
- DESIGN CODE | B
- BEARING-OPP-DRIVE-END | 6205
- BEARING-DRIVE-END | 6206
- 208V AMPS | 23.5
- FL AMPS | 23/11.5
- CATALOG NUMBER | UCME7510
- SPEC. NUMBER | 36Q213W514G2
- WEIGHT | 101
PLEASE NOTE, IMPORTANT INFORMATION:
- This Baldor Grinder ships by truck and someone will need to be present when delivered. Check one of the boxes above for Residential/Farm or Liftgate if needed.
- Manufacturer's Warranty Only!
- By purchasing this item you agree to Baldor's Terms and Conditions.
