Baldor | SKU:
BALUCME759

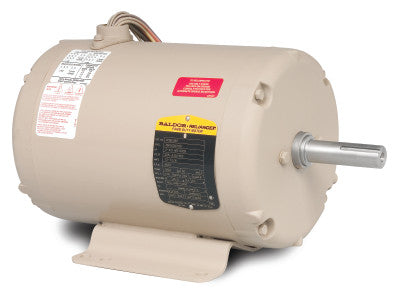

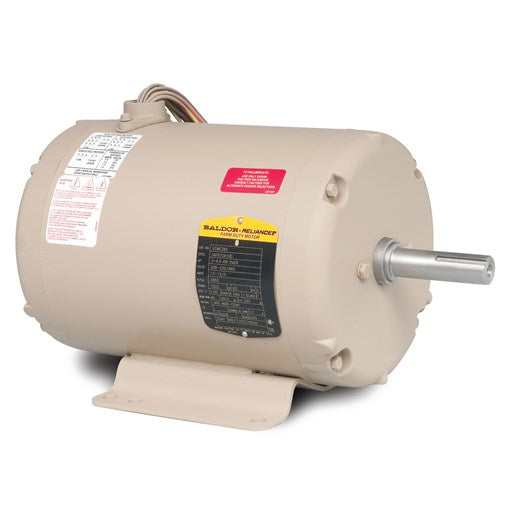

Baldor UCME759 7.5/10HP, 3PH, 208-230/460V TEAO Grain Dryer/Vane Axial Fan
$1,183.93
Unit price
/
Unavailable
Baldor UCME759 7.5/10HP, 3PH, 208-230/460V TEAO Grain Dryer/Vane Axial Fan is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Baldor UCME759 7.5-9.2 HP 3450 RPM Three Phase OPAO Grain Dryer Vane Axial Fan Motor
Specifically engineered for use on vane axial fan crop dryers. Shaft 3/4" longer than NEMA standard, Shaft keyed, drilled and tapped with internal 1/4-20 tap 1" deep, Thermostats, Epoxy paint.
Specifications:
- VOLTAGE | 208-230/460
- SERVICE FACTOR | 1.00
- RATING | 40C AMB-CONT
- POWER-FACTOR | 90
- PHASE | 3
- OUTPUT [hp] | 7.5-9.2 Air Over
- SPEED [rpm] | 3450
- KVA-CODE | M
- INSULATION-CLASS | F
- HERTZ | 60
- FRAME | 184TZ
- ENCLOSURE | TEAO
- FL EFFICIENCY | 89.5
- DESIGN CODE | B
- BEARING-OPP-DRIVE-END | 6205
- BEARING-DRIVE-END | 6206
- 208V AMPS | 18.8
- FL AMPS | 18.8-17/8.5
- CATALOG NUMBER | UCME759
- SPEC. NUMBER | 36Q213W514G1
- WEIGHT | 101
PLEASE NOTE, IMPORTANT INFORMATION:
- This Baldor Grinder ships by truck and someone will need to be present when delivered. Check one of the boxes above for Residential/Farm or Liftgate if needed.
- Manufacturer's Warranty Only!
- By purchasing this item you agree to Baldor's Terms and Conditions.
