BelAire 318HE 80 Gallon, Horizontal, ELITE Two Stage Electric Simplex Air Compressor

GREAT PERFORMANCE AND VALUE
The BelAire two stage electric compressor packages are available from 5 to 10HP (Iron Series), delivering 15.3 to 35 CFM at 100psi. Each compressor comes complete with everything you need to optimize your work and minimize down time. All BelAire Two Stage compressors come with a full 2 Year Warranty (including valves).

Features:

• Start-Stop Pressure Switch Control
• Cast Iron Cylinders
• Swedish Steel Valves
• Aluminum Heads and Coolers for Superior Cooling
• ASME Safety Valves Fully-Enclosed Belt Guard
• Tank Drain and Discharge Valve
• Magnetic Starter
• Low Oil Switch and Automatic Tank Drain
• 5 – 7.5 HP “ELITE” include triple-pass Pump Mounted Aftercooler

Specifications:

• Model | 318HE
• Part Number | 8090250009
• HP | 5
• Voltage/Phase | 208-230/1
• CFM @ 100PSI | 18.6
• CFM @ 175PSI | 16.6
• Tank | 80H
• Max Pressure | 175
• Shipping Weight | 501 lbs
• Dimensions (LxWxH) | 71x24x49

PLEASE NOTE, IMPORTANT INFORMATION:

• SALES TAX | BelAire collects Sales Tax in some States unless a properly filled out tax exemption form is provided. Sales Tax will NOT be applied at checkout.
• *** THIS UNIT INCLUDES A MAGNETIC STARTER/LOW OIL SWITCH & AUTO DRAIN ***

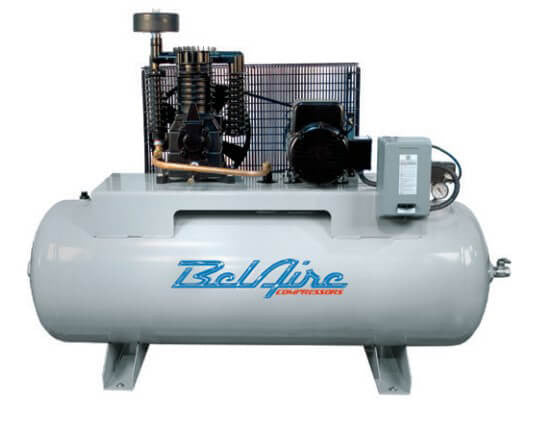

• *** IMAGE SHOWN IS OF MODEL 318H AND IS FOR REPRESENTATION ONLY, ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN ***
• ASSEMBLED IN THE USA
