BelAire 3312DL 208-230V, 3 PH Electric Duplex Air Compressor

GREAT PERFORMANCE AND VALUE
The BelAire duplex compressors are available up to 20 HP and can deliver up to 50.50 acfm on single phase power. BelAire duplex compressors feature two pumps and motors, along with an alternator which ensures optimal performance. BelAire Two Stage compressors come with a full 2 Year Warranty (including valves).

Features:

• Alternator
• Magnetic Motor Starter
• Start-Stop Dual Pressure Switch Control
• 1” Tank Discharge Valve
• Fully Enclosed Belt Guard
• ASME Tank and Safety Valves

Specifications:

• Model | 3312DL
• Part Number | 8090254770
• HP | 2 x 7.5
• Voltage/Phase | 208-230/3
• CFM @ 100PSI | 50.5
• CFM @ 175PSI | 44.6
• Tank | 120H
• Max Pressure | 175
• Shipping Weight | 886 lbs
• Dimensions (LxWxH) | 77x27x56

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck.  Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
• SALES TAX | BelAire collects Sales Tax in some States unless a properly filled out tax exemption form is provided. Sales Tax will NOT be applied at checkout.

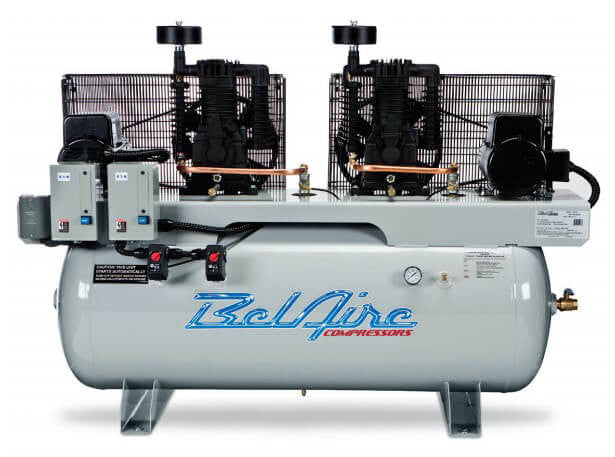

• *** IMAGE SHOWN IS OF MODEL 3112DL AND IS FOR REPRESENTATION ONLY, ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN ***
• ASSEMBLED IN THE USA
