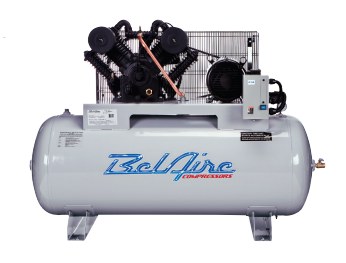

BelAire 6312H 10 HP, 208-230 Volt, 3 PH, 120 Horizontal Two Stage Electric Iron Series Compressor

Great Performance and Value

The BelAire two stage electric compressor packages are available from 5 to 10HP (Iron Series), delivering15.3 to 35 CFM at 100psi. Each compressor comes complete with everything you need to optimize your work and minimize down time. All BelAire Two Stage compressors come with a full 2 Year Warranty (including valves).

Features:

• Start-Stop Pressure Switch Control
• ASME Safety Valves Fully-Enclosed Belt Guard
• Tank Drain and Discharge Valve
• Magnetic Starters Included if Required

“E” Designates “Elite Series” Models:

• Magnetic Starter
• Low Oil Switch and Automatic Tank Drain
• 5 – 7.5 HP “ELITE” include triple-pass Pump Mounted Aftercooler

Specifications:

• Model | 6312H
• Part Number | 8090253231
• HP | 10
• Voltage | 208-230
• Phase | 3
• Tank Gal | 120 H
• CFM @ 100 PSI | 35
• CFM @ 175 PSI | 32
• Max Pressure | 175
• Mag Starter | Included
• Ship Weight | 830 lbs
• Dimensions | 73"l x 24"w x 49"h

PLEASE NOTE, IMPORTANT INFORMATION:

• SALES TAX | BelAire collects Sales Tax to some State unless a properly filled out tax exemption form is provided.  Sales Tax will NOT be applied at checkout.
• *** IMAGE SHOWN IS FOR REPRESENTATION ONLY, ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN ***
