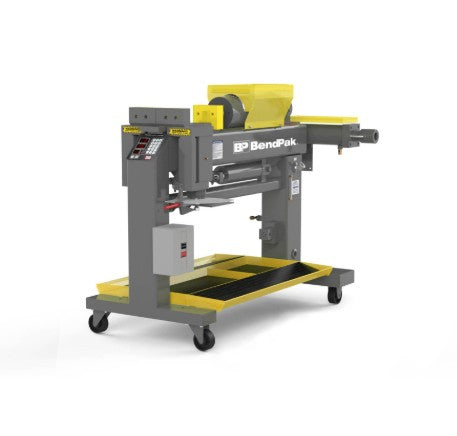

BendPak 1302 Digital Automatic Pipe Bender with Deluxe 302 Tooling

Brings an Extra Level of Precision to Your Workshop

The BendPak 1302BA series of pipe benders features an ergonomically placed and highly sophisticated keypad display that can record bending patterns for accurate and repetitive use. For extremely busy shops, an automatic pipe bender is a must-have item for anyone looking to save time and duplicate predictable results with ease.

Quick-change bending dies

BendPak pipe benders feature twist-lock tooling and quick-change bending dies that are absolutely one of our most copied designs across the entire industry. We're flattered, but make sure you go with the best and the original for your bending operations.

Digital control

Hardcore users will appreciate the convenience of our digital control that gives you digital die angle readings right up front. An advanced, programmable mini-computer is safely enclosed within the front upright of the bender, allowing effortless fabrication on virtually every original equipment exhaust system. The program data control board manages all bending functions, automatic or manual, and stores up to 99 different bend depths

Features:

• 2 separate end-finishing units at rear for all necessary flaring and expanding
• Knee control and depth-of-bend degree plate for manual bending operations
• Deluxe 302 Tooling Package (Standard)
• Deluxe Metric Tooling Package (Optional)
• Complete with quick release bending and finishing dies
• High-speed clampless swager and internal expander
• Easy-to-use drop-in collar makes swaging quick
• Twist-lock tooling
• Integrated power-relief control valve
• Rigid 6” x 6” x 3/8” welded-steel tube frame
• Commercial-grade hydraulic cylinders
• All cylinders feature chrome-molly shafts, conforming to

ANSI 92.2 standards:

• Quick-release bending dies for reduced set-up times
• Bending heads precision grounded to within .002”
• Enclosed controls keep your bending area clutter-free
• 2.5” oversized barrel shafts for maximum dependability and minimum maintenance
• Standard grease fittings allow for simple lubrication
• NEMA rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
• Pressure gauges let you know exactly what the system pressures are at all times
• Remote foot operated controls
• Adjustable pressure valve located right up front
• One piece barrel ensures that the bending gates stay perfectly aligned with the ram
• Strong, 5 HP Baldor energy efficient motor delivers maximum performance

Specification:

• Motor | 5 HP / 208-230 VAC / 60Hz / 1 Ph
• 302 Tooling Pack | 1.5", 1.75", 1.625", 2", 2.25", 2.5"
• Bending Controls | Automatic / Digital
• Expander Controls | Manual / Knee Lever
• Frame Style | Double - Ended Expander
• Max. Tube Capacity | 3" (76mm) .095 Wall
• Max. Bending Radius | 5" (127mm)
• Min. Bending Radius | 3.3" (89mm)
• Top Cylinder Force | 60,000 lbs (27,216 kg)
• Dimensions | 41" x 64" x 26" (1,041mm x 1,626mm x 660)
• Shipping Weight | 1,388 lbs (643 kg)
• Shipping Dimensions | 48" x 70" x 30" (1,219mm x 1,778mm x 762mm)

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
