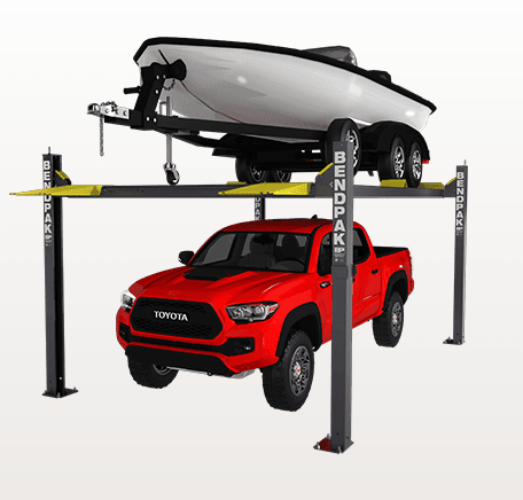

BendPak HD-7500BLX 7,500-lb. Capacity / Vehicle and Boat Storage Lift / 82" Rise

The Perfect Boat Lift for Dry Docking

Never trust your precious boat to the unpredictability of the water, nor should you pay for dry docks and/or yard storage. Salt water corrosion, barnacles, rust damage, rub marks, coating blemishes, rot and cold weather can do irreversible harm caused to your boat's engine and interior. The longer you go without a boat lift, the more you leave yourself open to catastrophe.

BendPak has the perfect solution: Keep your boat up in the air and out of the water. Because it features adjustable runways that accommodate cars and trucks, the HD-7500BLX pulls double-duty as a professional-grade car lift for ground vehicles.

BendPak designed and engineered

A BendPak boat lift is crafted to the same strict specifications as our automotive lifts, so you know that your boat is exceptionally safe.

No more docking fees

A boat lift is a great way to shield yourself from monthly boat storage fees. The larger the boat, the bigger the bill, so there's no better way to keep your boat safe than to store it in your own garage.

Great for business owners

Boat storage business owners will also benefit from BendPak boat lifts. They understand better than anyone that more storage can help the business earn a bigger bottom line. Offer your customers the safest boat storage solutions; it's one of the best business decisions you'll ever make.

Fits most boat trailers

Wide and narrow installations help accommodate virtually all boat trailer types.

Dependable design

Four heavy-duty, stainless steel wire ropes and a single hydraulic cylinder mounted underneath the runway make this lift one of the most durable, maintenance-free models on the market.

Dual-hub wire rope sheaves

Reduce stress and fatigue on the axles, sheaves and cables. We insist on using dual-hub sheaves where appropriate, even if they cost us more to make.

Multi-level locking positions

BendPak boat lifts are equipped with multiple adjustable height locking positions for variable-height parking. A convenient lock system releases all four independent safety locks simultaneously.

Heavy-duty aircraft cable

Each lift is supplied with 4 high-quality stainless steel wire ropes, each of which is rated to hold 14,400 lbs.

Electric-hydraulic power system

We incorporate maintenance-free electric hydraulic power systems into each lift for ultimate dependability. All controls are placed close at hand.

Single hydraulic cylinder

Each lift is equipped with a single hydraulic cylinder, hidden away under the runway for minimum exposure and maximum performance.

Integrated design

Lifting cables, airlines, safety latches and sheaves are all fully enclosed. This design protects all components and extends the lifespan of the lift.

Longer approach ramps

Low-profile, extended-length approach ramps ensure boat trailers will load onto the runways with ease.

Automatic safety locks

Stainless steel and aluminum pneumatic cylinders release all 4 locks simultaneously with the simple push of a button, and spring-loaded safety locks engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device for emergency protection.

Remember, dry docking is the only way to ensure that boats are safe from water-related damage. With an in-water lift, choppy waters, floods and tides can make an unexpected mess of your beautiful boat. Don't take chances! Make sure your boat is high and dry on the BendPak HD-7500BLX boat lift.

Specifications:

Capacity

• Lifting Capacity* 7,500 lbs. (3,402 kg)
• *Max Capacity / Front Axle 3,750 lbs. (1,701 kg)
• *Max Capacity / Rear Axle 3,750 lbs. (1,701 kg)

Rise

• A - Min. Runway Height: 5" (127 mm)
• B - Max. Rise: 82" (2,083 mm)
• C - Max. Lifting Height: 85.75" (2,178 mm)
• Time to Full Rise: 55 seconds

Outside Dimensions

• D - Overall Width: 132" (3,353 mm)
• E - Outside Length: 198" (5,029 mm)
• F - Overall Length: 224.5" (5,690 mm)
• G - Height of Columns: 100" (2,540 mm)

Inside Dimensions

• H - Width Between Columns: 122" (3,099 mm)
• I - Drive-Thru Clearance: 108.5" (2,756 mm)

Runways

• J - Runway Width: 19" (483 mm)
• K - Length of Runways: 182.25" (4,629 mm)
• L - Width Between Runways: 46.5" (1,181 mm) or 66.5" (1,689 mm)
• M - Runway Centerline: 68.5" (1,740 mm) or 88.5" (2,248 mm)
• N - Outside Edge of Runways: 87.5" (2,223 mm) or 107.5" (2,731 mm)

Minimum Wheelbase

• Rated Capacity: 135" (3,429 mm)
• 75% Capacity: 115" (2,921 mm)
• 50% Capacity: 95" (2,413 mm)
• 25% Capacity: 80" (2,032 mm)

Locking

• Locking Positions: 17
• Lock Spacing: Every 4" (102 mm)

Power Unit

• Motor: 220 VAC / 60 Hz / 1 Ph
• Noise: 45 dB

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck.  Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product.  You must provide a way to get it off of the truck.)
• Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201.

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
