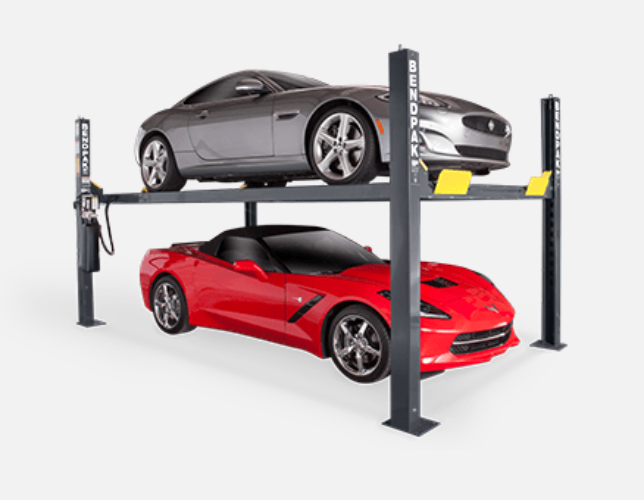

BendPak HD-9STX 4 Post 9,000 LB Lift
The HD-9STX is our tall and narrow four-post lift that combines a small horizontal footprint with extended-height runways, so higher-clearance vehicles can be easily parked underneath.
More Height in Less Floor Space
The HD-9STX is your 9,000-lb. rugged lifting solution for when you need get something heavy and high, but you don't have a lot of space on the ground. Perfect for vehicle storage and service—in the shop or garages with high ceilings. Whether you're a service professional or a DIY'er, BendPak’s got the right lift for you. This model is available with optional casters, drip-trays, jack platform and more.
With more height to work with, this lift does something others do not: it fits trucks and SUVs in the lower level. This is essential for parking purposes, especially if your lower-level vehicle is too heavy for the runways. A high-rise lift also increases the comfort of techs working underneath. Pulling transmissions and draining oil is safer and easier on high-rise car lift. The HD-9STX eliminates stooping and awkward straining when accessing the vehicle underbody. When you’re uncomfortable, you’re more likely to make mistakes, and there’s nothing better than a car lift that lifts to the perfect height. The HD-9STX maximizes versatility in a car lift that adapts to your height and lifestyle. The narrow designs fits in the same floor space as the HD-9ST but requires a bit more ceiling height to fully enjoy.
Features:
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Freestanding design
- Narrow-width
- High-rise
- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Specifications:
- Capacity:
- Lifting Capacity* | 9,000 lbs. (4,082 kg)
- *Max Capacity | Front Axle 4,500 lbs. (2,041 kg)
- *Max Capacity | Rear Axle 4,500 lbs. (2,041 kg)
- Rise:
- A - Min. Runway Height | 5" (127 mm)
- B - Max. Rise | 82" (2,083 mm)
- C - Max. Lifting Height | 86.5" (2,197 mm)
- Time to Full Rise | 50 seconds
- Outside Dimensions:
- D - Overall Width | 100.25" (2,546 mm)
- E - Outside Length | 198" (5,029 mm)
- F - Overall Length | 224" (5,690 mm)
- G - Height of Columns | 100" (2,540 mm)
- Inside Dimensions:
- H - Width Between Columns: 89.75" (2,280 mm)
- I - Drive-Thru Clearance: 76.5" (1,943 mm)
- Runways:
- J - Runway Width: 19" (483 mm)
- K - Length of Runways: 188" (4,775 mm)
- L - Width Between Runways: 37.5" (953 mm)
- M - Runway Centerline: 56.5" (1,435 mm)
- N - Outside Edge of Runways: 75.5" (1,918 mm)
- Minimum Wheelbase:
- Rated Capacity | 135" (3,429 mm)
- 75% Capacity | 115" (2,921 mm)
- 50% Capacity | 95" (2,413 mm)
- 25% Capacity | 80" (2,032 mm)
- Locking:
- Locking Positions | 15
- Lock Spacing | Every 4" / 102 mm
- Power Unit:
- Motor | 220 VAC / 60 Hz. 1Ph.
- Noise | 45 dB
- Shipping:
- Weight | 1,992 lbs. / 906 kg
- Dimensions | 190" x 22" x 41"
Optional Accessories (Sold Separately):
- 5174670 | 48" Aluminum Approach Ramp Kit / Pair
- 5210207 | 4-Post Lift Aluminum Deck Platform / Diamond Plate
- 5210997 | Portable Wheel Kit / Fits HD-7 and HD-9 Series Four-Post Lifts / Set of 4
- 5150509 | 18 Gallon Rolling Drain Pan For 4-Post Lifts
- 5175800 | Fixed Sliding Jack Tray / FITS NARROW RUNWAY POSITIONS ONLY
- 5175349 | 6,000-lb. Capacity / Telescoping Sliding Jack Platform
- 5175801 | 3,000-lb. Capacity / Telescoping Boat Trailer Tongue Platform
- 5215306 | Compressed Air Bottle for 4-Post Lifts Safety Locks
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product. You must provide a way to get it off the truck.)
- Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
- Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 2017.
