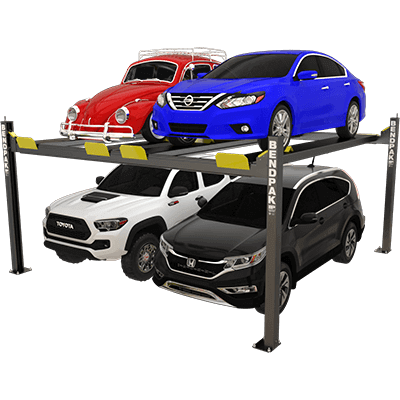

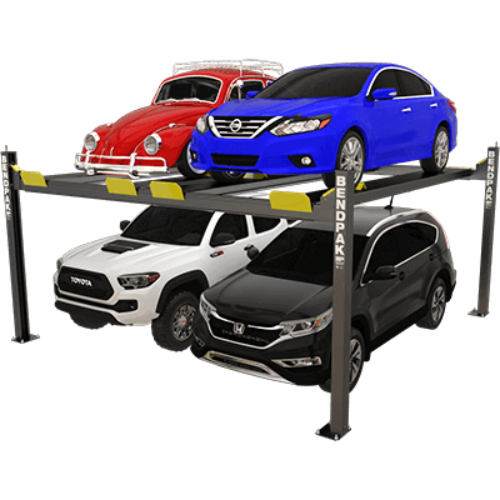

BendPak 5175023 HD-9SW 9,000-lb. Capacity / Four-Post Lift / Dual Platform / Super Wide

To accommodate super-wide vehicles on a 9,000-lb. capacity four-post lift, choose the HD-9SW. The “SW” stands for super-wide, and it’s the ideal four-post lift to double your parking and/or service wider vehicles.

Take Home a Super-Wide ​Four-Post Lift

There are thousands of vehicle types out there, and some come a bit wider than others. That’s no sweat for the HD-9SW, a four-post lift that sits fat and happy when it holds vehicles with wider frames. Plus, if you need a lift that offers truly gigantic proportions, the HD-9SWX is one heck of a choice. If your vehicles are tall, heavy and wide, and they need to be stacked or serviced, we can probably lift them. Both models are perfect for a “wide” range of vehicles.

With all the same great parts and components as the HD-9, our super-wide lift is equally safe and efficient. Check out the working parts and components below to see what makes a BendPak better than the rest, no matter what height/width modifications we make for your pleasure and convenience.

Dual-hub cable sheaves
Single-hub cable sheaves represent the cost-cutting way to make a car lift. Not our way. BendPak double-hub sheaves reduce friction against the cables while also extending the life of the lift axles.

Multi-level locking positions
Multiple lock positions permit operators to safely stop the lift at the right height for them, or simply adjust to the right height for the job. This is also useful for parking vehicles under the raised lift. Depending on the height of your vehicle(s), and depending on your ceiling height, you can adjust the lock position.

Heavy-duty aircraft cable
Four lifting cables help ensure a level rise. Each is constructed from high-grade stainless steel and rated to handle 14,000 lbs. Combined, the four cables can hold 640% more than this four post lift’s rated capacity. Of course, the cables are tucked away into the lift structure. This streamlines the lift design and maintains the sleek look of your shop. It also protects the cables from environmental damage, spills, etc.

Electric-hydraulic power system
The electric-hydraulic power system is totally maintenance-free. Controls are ergonomically placed and easy to use, so you’re totally at ease while operating the lift.

Large base plates
10" x 12" base plates can be bolted down or left unbolted for use with the caster kit. We encourage you to work in a way that’s best for you.

Caster kit
A 4-piece caster kit fits this super-wide four-post lift like a charm. With your lift on wheels, there’s no limit to where you can work and park. Remodeling projects are also easier to plan and execute.

Integrated design
All moving components are located within the structure. This isn’t just about looks (although it certainly helps with that too). The integrated design addresses a major safety concern: externally routed components are exposed to additional dangers and damages. BendPak avoids these altogether.

Low-deck runways
The runways on this BendPak four-post lift rise just 4.5" off the ground. Add the gently inclining ramps, and you can lift virtually anything.

Longer approach ramps
Not only are our runways low-profile, we extend them farther than others in the industry. This makes for a car lift that can load sports cars and other low-standing vehicles without damaging them.

Automatic safety locks
Engaging the locks is as simple as raising the ramps just past the lock (you’ll hear it click as it passes) and lowering them back on the lock. Check to make sure all locks are on the same position—safety first, after all. And that’s all there is to it! Your four-post lift can be held in that position indefinitely.

Features:

• Standard rise
• Shorter runway for smaller spaces
• Runways accommodate wide or narrow vehicles
• Runways include rail kit for optional accessories
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• Oversized sheave diameter reduces cable fatigue
• High-speed lifting
• Features heavy-duty 3/8" aircraft cable
• Rugged 1.25" roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Runways feature non-skid surface
• Push-button pneumatic safety release
• Independent backup slack-cable safety latches
• Inside runways adjust for different tread widths
• Customizable power unit location
• Removable approach ramps for additional drive-under clearance

Optional Accessories (Sold Separately):

• Optional drive-thru ramps available
• Optional drip trays available
• Optional solid deck available to increase storage capacity
• Optional 4,500-lb. air / hydraulic rolling jacks available

Specifications:

• Capacity
• Lifting Capacity* | 9,000 lbs. (4,082 kg)
• *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg)
• *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg)
• Rise
• A - Min. Runway Height | 7" (178 mm)
• B - Max. Rise | 70" (1,778 mm)
• C - Max. Lifting Height | 77" (1,956 mm)
• Time to Full Rise | 55 seconds
• Outside Dimensions
• D - Overall Width | 202" (5,131 mm)
• E - Outside Length | 174" (4,420 mm)
• F - Overall Length | 218.5" (5,550 mm)
• G - Height of Columns | 90" (2,286 mm)
• Inside Dimensions
• H - Width Between Columns | 192" (4,877 mm)
• I - Drive-Thru Clearance | 178" (4,521 mm)
• Runways
• J - Runway Width | 19" (483 mm)
• K - Length of Runways | 164" (4,166 mm)
• L - Width Between Runways | 34.25" (870 mm) or 41" (1,041 mm)
• M - Runway Centerline | 56.25" (1,429 mm) or 62.75" (1,594 mm)
• N - Outside Edge of Runways | 75.25" (1,911 mm) or 81.75" (2,076 mm)
• Minimum Wheelbase
• Rated Capacity | 115" (2,921 mm)
• 75% Capacity | 100" (2,540 mm)
• 50% Capacity | 85" (2,159 mm)
• 25% Capacity | 70" (1,778 mm)
• Locking
• Locking Positions | 14
• Lock Spacing | Every 4" (102 mm)
• Power Unit
• Motor | 220 VAC / 60 Hz /1 Ph
• Noise | 45 dB
• Shipping
• Weight | 2,796 lbs. (1,268 kg)
• Dimensions | 200" x 22" x 52" (5,080 mm x 5080 mm x 1,333 mm)

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by Flatbed truck to a Commercial address. A forklift must be present to unload lift from truck as liftgate cannot be used.
• SALES TAX | BendPak collects California Sales Tax unless a properly filled out tax exemption form is provided. Sales Tax will NOT be applied at checkout.
• Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
• Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201.
• BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
