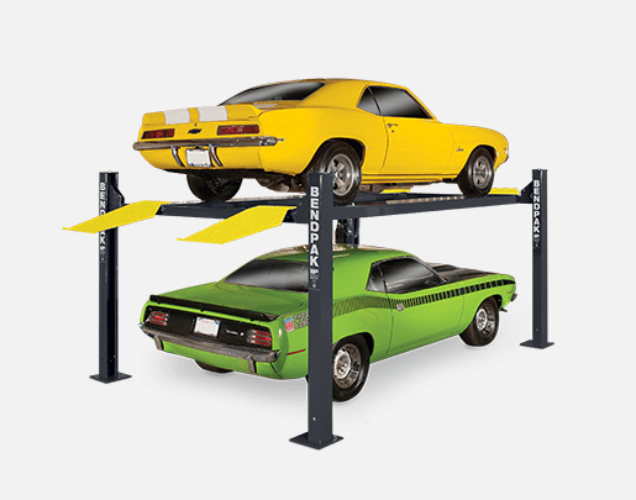

BendPak HD-9XL 4 Post 9,000 LB Lift

• Long Wheelbases Finally Have a Lift of Their Own | The HD-9XL four-post lift features that accommodate longer wheelbases. Car collectors who like those long, old Chevys can rejoice: this lift is for them. There are likewise plenty of other long-wheelbase vehicles that will sit more comfortably on this lift. Garages need a little more space to accommodate it, but not by much.
• Dual-hub cable sheaves | Wider, sturdier cable sheaves reduce friction against the cables and increase the lifespan of the parking lift. These rugged sheaves are more expensive to manufacture, but it’s worth every penny, for us and for you, because better sheaves protect both lifts and lives.
• Multi-level locking positions | When you’re preparing to park on a car lift, it’s important to understand the height you need to lock the runways at. The heights of the stacked vehicles, as well as your ceiling height, need to be factored in. Your BendPak has lock positions every few inches. There’s so much versatility in how you park, you can fit virtually endless combinations of vehicles.
• Heavy-duty aircraft cable | Powerful, aircraft-quality cables each have a 14,000-lb. capacity. So, four of them combined can lift 640% more than the capacity of the car lift. This kind of over-engineering is necessary to ensure your vehicle can be safely left on top of the raised lift for as long as you want.
• Electric-hydraulic power system | BendPak offers fully integrated electric-hydraulic power units that are always placed within easy reach on one of the parking lift columns. The units never need maintenance and practically take care of themselves for the entire duration of ownership.
• Large base plates | Safety systems are worthless without the right structural supports. We’re not afraid of a little overkill here and there, so our 10” x 12” base plates are made so stable, you don’t even need to bolt the lift down. This is especially true if you plan on using the caster kit with your car lift.
• Caster kit | Add wheels to your ​four-post lift if you want to adjust where you park. Since the HD-9XL is also a maintenance lift, the casters let you reposition the lift for purposes other than parking. Roll it across most flat, smooth surfaces. You can even keep a car parked on top while you move it.
• Integrated design | Each BendPak parking lift holds its components within its posts. This maintains a cleaner appearance and prevents accidental damage and wear.
• Low-deck runways | When you park on top, you don’t want to climb up Mt. Olympus. That’s why BendPak runways are low-profile and accommodate virtually any vehicle type. Low ground-clearance cars and low-suspension trucks are welcome to board.
• Longer approach ramps | Extending the approach ramps makes loading low ground-clearance vehicles faster and safer. Shorter ramps usually result in scratches to the front bumper.
• Automatic safety locks | The HD-9XL four-post lift features spring-loaded locks that click into place as the lift rises. They lock automatically every few inches, so each time you hear one engage the lock, you know even a catastrophic hydraulic failure will not ruin your day (or life). They also release simultaneously as the lift descends, and a secondary slack-cable detection system prevents operators from raising or lowering the parking lift in the unlikely event that slack develops in one or more of the lifting cables.

Additional Features:

• 9,000-lb. maximum lifting capacity
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
• Wide drive-thru with standard lift height and long runways
• Electric / hydraulic power system
• Internal "Anti-Sway" slider blocks in each column
• Features heavy-duty 3/8" aircraft cable
• Multi-position safety locks in each column
• Ramps feature non-skid surface
• Runways include rail-kit for optional accessories
• Single hydraulic cylinder underneath runway
• Oversized self-lubricating cable rollers
• Rugged 1.25" roller axles
• Adjustable lock ladders
• Push-button pneumatic safety release
• Optional 4,500-lb. capacity jack available (Model RBJ4500)

Specifications:

• Capacity |
• Lifting Capacity*: 9,000 lbs. (4,082 kg)
• *Max Capacity / Front Axle: 4,500 lbs. (2,041 kg)
• *Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg)
• Rise |
• A - Min. Runway Height: 5" (127 mm)
• B - Max. Rise: 70" (1,778 mm)
• C - Max. Lifting Height: 75" (1,905 mm)
• Time to Full Rise: 50 seconds
• Outside Dimensions |
• D - Overall Width: 110.25" (2,800 mm)
• E - Outside Length: 198" (5,029 mm)
• F - Overall Length: 224.5" (5,702 mm)
• G - Height of Columns: 88" (2,235 mm)
• Inside Dimensions |
• H - Width Between Columns: 100.25" (2,546 mm)
• I - Drive-Thru Clearance: 86.5" (2,197 mm)
• Runways |
• J - Runway Width: 19" (483 mm)
• K - Length of Runways: 182.25" (4,629 mm)
• L - Width Between Runways: 35" (889 mm) or 41" (1,041 mm)
• M - Runway Centerline: 56.75" (1,441 mm) or 63" (1,600 mm)
• N - Outside Edge of Runways: 75.75" (1,924 mm) or 82" (2,083 mm)
• Minimum Wheelbase |
• Rated Capacity: 135" (3,429 mm)
• 75% Capacity: 115" (2,921 mm)
• 50% Capacity: 95" (2,413 mm)
• 25% Capacity: 80" (2,032 mm)
• Locking |
• Locking Positions: 14
• Lock Spacing: Every 4" (102 mm)
• Power Unit |
• Motor: 220 VAC / 60 Hz / 1 Ph
• Noise: 45 dB
• Shipping Weight | 1,696-lbs. (769 kg)
• Shipping Dimensions | 192'' x 22'' x 28'' (4,877 mm x 558 mm x 711 mm)

Optional Accessories (Sold Separately):

• 5174670 | 48" Aluminum Approach Ramp Kit / Pair
• 5210207 | 4-Post Lift Aluminum Deck Platform / Diamond Plate
• 5210997 | Portable Wheel Kit / Fits HD-7 and HD-9 Series Four-Post Lifts / Set of 4
• 5150509 | 18 Gallon Rolling Drain Pan For 4-Post Lifts
• 5175800 | Fixed Sliding Jack Tray / FITS NARROW RUNWAY POSITIONS ONLY
• 5175349 | 6,000-lb. Capacity / Telescoping Sliding Jack Platform
• 5175801 | 3,000-lb. Capacity / Telescoping Boat Trailer Tongue Platform
• 5215306 | Compressed Air Bottle for 4-Post Lifts Safety Locks

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product. You must provide a way to get it off the truck.)
• SALES TAX | BendPak collects California Sales Tax unless a properly filled out tax exemption form is provided. Sales Tax will NOT be applied at checkout.
• Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 2017. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
• Note: BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
