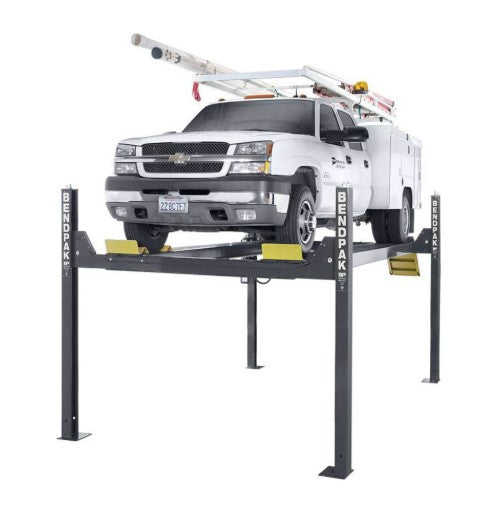

BendPack HD14T 14,000-lb. Capacity / Four-Post Lift / Tall Lift / 82" Rise

The industrial-quality HD-14T is a high four-post lift solution that provides 82” of rise – that’s more headroom under and around the lift work area for tall technicians looking to reduce painful head knocks. Not only is the HD-14T great for service work, it doubles as a high-clearance parking solution as well when you need store vehicles underneath. It’s just another way that BendPak tailors our lifts to suit your needs. With this four-post lift, you can push 14,000 pounds worth of rolling stock into the air without breaking a sweat. Be sure to consider BendPak’s RJ-7 air-hydraulic bridge jacks and our convenient rolling oil drain pan to increase the service capability even more.

Extended runways

14,000-lb. vehicles have wheelbases that need specialized equipment to keep them safe and supported. Our extended runways prevent wear and tear on your vehicle; driving onto a car lift runway should not feel like your truck is climbing Mt. Everest.

Dual-hub cable sheaves

Dual-hub cable sheaves reduce stress, fatigue and wear. Huge 10.5” diameter cable sheaves within the runway and cross tubes combine with massive 2.25” diameter sheave axles. This dramatically improves cable wear and critical component lifespan, which means less service-related expenses down the road.

Heavy-duty aircraft cable

This car lift features four, 1/2” diameter, 6 x 25 stainless-steel lifting cables that have a breaking strength of over 14,000 lbs. each. This aircraft-quality cable was specifically designed for lifting applications and provides a great balance between abrasion resistance and fatigue.

Features

• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
• Mid to long-style approach ramps for low ground clearance vehicles
• Runways include rail-kit for optional accessories
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column
• Pneumatic push-button safety release
• Features heavy-duty 1/2” aircraft cable
• Safety locks enclosed in columns minimize pinch points
• Oversized sheave diameter reduces cable fatigue
• Oversized self-lubricating cable rollers
• Rugged 1.75” roller axles
• Multi-position safety locks in each column
• Customizable power unit location
• Approach ramps incorporate built-in rear-wheel chocks
• Independent backup slack-cable safety latches
• Runways feature non-skid surface
• Optional drive-thru ramps available
• Optional drip trays available
• Optional 7,000-lb. capacity rolling jacks available
• ETL approved

Specifications:

• Model | 5175004
• Lifting Capacity | 14,000 lbs
• A - Min. Runway Height | 7.5" (191 mm)
• B - Max. Rise | 82" (2,083 mm)
• C - Max. Lifting Height | 89" (2,261 mm)
• D - Overall Width | 126" (3192 mm)
• E - Outside Length | 205" (5205 mm)
• F - Overall Length | 233.25" (5,924 mm)
• G - Heights of Columns | 100" (2,540 mm)
• H - Width Between Columns | 115.75" (2,940 mm)
• I - Drive Thru Clearance | 98" (2482 mm)
• J - Runway Width | 20" (508 mm)
• K - Length of Runway | 195" (4953 mm)
• L - Width Between Runways | 34.5" (876 mm) - 41.5" (1,054 mm)
• M - Runway Centerline | 57.5" (1461 mm) - 64.5" (1638 mm)
• N - Outside Edge of Runway | 77.5" (1968 mm) - 84.5" (2,146 mm)
• Min Wheelbase @ Rated Capacity | 135" (3429 mm)
• Min Wheelbase @ 75% Capacity | 115" (2921 mm)
• Min Wheelbase @ 50% Capacity | 100" (2540 mm)
• Min Wheelbase @ 25% Capacity | 80" (2032 mm)
• Locking Positions | 17
• Lock Spacing | Every 4" (102 mm)
• Lifting Time | 65 Sec
• Motor | 220 Vac / 60 Hz / 1 Ph
• Shipping Weight | 2408 lbs (1,092 kg)
• Shipping Dimensions | 204" x 22" x 30"

Optional Accessories (Sold Separately):

• 5210438 | WSA 100 Air-Electric Workstation / Fits BendPak 2-Post & 4-Post Lifts
• 5150509 | Rolling Oil Drain Pan 15 Gallon Rolling Drain Pan For 4-Post Lifts
• 5175800 | JP-3 Fixed Sliding Jack Tray / FITS NARROW RUNWAY POSITIONS ONLY
• 5175349 | JP-6 6,000-lb. Capacity / Telescoping Sliding Jack Platform
• 5175801 | Boat Trailer Platform 3,000-lb. Capacity / Telescoping Boat Trailer Tongue Platform
• 5215306 | Air Bottle Compressed Air Bottle for 4-Post Lifts Safety Locks

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck.  Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product.  You must provide a way to get it off of the truck.)
• Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201.
