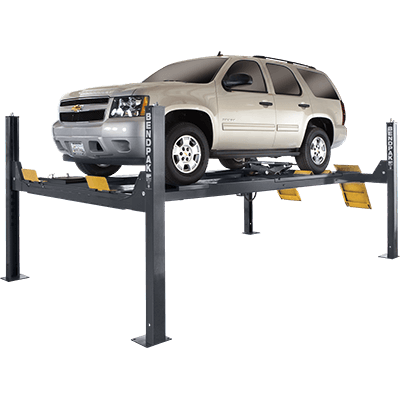

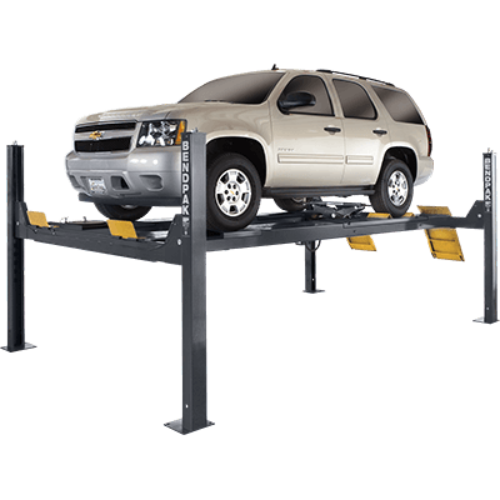

BendPak 14,000 LB Capacity, Alignment, Limo Extended

The HDS14LSXE alignment lift is the "limo style" version of the HDS14LSX. Compared to the standard length version, this lift extends the overall length of the lift, as well as the runways, by 30". This significant increase makes it possible to load longer cars, trucks, SUVs and even some limousines.

Features:

• Extended-Length Alignment Lift Offers 14,000 lbs. of Power | This model is essential for hundreds, if not thousands, of shops across the country. Busy bays are going to service a variety of vehicles, and depending where you work, you're likely to get some exceptionally big vehicles in need of alignment services. This model all but guarantees you'll be ready to handle anything. With a 14,000-lb. capacity, the HD14SLXE lifts virtually all residential vehicles, from sedans to heavy-duty pick-up trucks to municipal vehicles and farming equipment.
• Slip plates | Turn plates in the front and multi-caster slip plates in the back allow for perfectly precise, free-floating alignments.
• Deluxe Turnplates | Aluminum-alloy construction turn plates are easily positioned using BendPak’s turn plate pockets. Larger and more robust than our previous slip-plate design, they're also lighter in construction and feature dual "popsicle gap stops" for your convenience. Angled steel lock pins conveniently hold the plate in place when you want to use your machine strictly as a maintenance or storage lift.
• Dual-hub cable sheaves | To increase longevity, ensure low cost of ownership and keep your purchase low-maintenance over time, we use the biggest and best sheaves throughout the lift. Massive 10.5” diameter cable sheaves are held within the runway cross tubes, outfitted with 2.25” diameter sheave axles that are equally durable.
• Heavy-duty aircraft cable | These cables are meant to be used continuously for years on end without issue. They're extremely resistant to rubbing and other abrasions (e.g., weather, chemicals, hydraulic oil). A 1/2” diameter 6 x 25 aircraft-quality stainless-steel lifting cable runs through each column.
• Adjustable height locking positions | No need to reach or bend for the turn plates. Every few inches, a convenient built-in safety lock will let the runways auto-engage into the post. All locks engage simultaneously as the runways evenly ascend the columns.
• Built-in lubrication | Grease fittings make it easy to focus on the alignment of your wheels without worrying about the constant lubrication of the sheaves.
• Flow restrictor | You'll probably never experience a hose rupture, but we have you covered just in case. BendPak's unique hydraulic flow divider provides a smooth descent, making your alignment lift structure safe to operate at all times.
• Spring-loaded safety locks | As the alignment lift runways rise to your preferred service level, springs "snap" and hold the locks into place at each ladder position. The spring-loaded, multi-locking devices are adjustable. The design also compensates for slight slopes in your garage.
• Push-button pneumatic lock release | A simple push-button pneumatic lock release simplifies lowering operations. Stainless steel and aluminum pneumatic cylinders provide years of maintenance-free service.
• Secondary lock system | BendPak doesn't cut corners on safety, even going above and beyond required safety standards. We offer a slack-cable lock system as a backup safety mechanism that’s ready at all times to shut off the alignment lift in the development of dangerous cable slack.
• Integrated design | The cables, sheaves, airlines and hydraulic cylinder run within the lift structure. This congregation of high safety and improved aesthetics gives our lifts a highly distinguished look that also increases user safety and comfort.
• Electric-hydraulic power system | The zero-maintenance power system features ergonomically located controls for easy operator access during repetitive daily use.
• Longer approach ramps | Longer ramps make it easier to load low ground-clearance vehicles onto the car lift structure. Alignments on these vehicle types are no hassle, and of course, larger trucks and SUVs can glide on just as easily as low ground-clearance sports cars.
• Flexible protective conduit | An extra-tough yet flexible conduit protects all airlines and hydraulic hoses from daily wear. You'll handle your alignment lift with greater confidence knowing the cables won’t deliver sudden shocks, ruptures or fluid leaks.
• Rolling bridge jacks | Convert your four-post into a fully functional wheel service lift. Optional rolling jacks make a great addition and increase service capacity. Bridge jacks raise vehicles by the frame, so wheel and brake service can be performed without moving the vehicle to a different car lift. Telescoping arms and frame contact pads extend over runways and target the vehicle's lifting points. Runways are fully adjustable for different tread widths. Three locking positions offer additional operator control. ***NOT INCLUDED***

Additional Features:

• 14,000-lb. lifting capacity
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
• Two runway lengths to choose
• Heavy‐duty turn plates and integrated rear slip‐plates included
• Multi‐position turn plate pockets
• Automatic leveling system
• Runways include rail‐kit for optional accessories
• Electric/hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Internal “Anti-Sway” slider blocks in each column
• Features oversize sheaves and heavy‐duty 1/2” aircraft cable
• Rugged 1‐3/8” roller axles and oversize self‐lubricating cable sheaves
• Multi‐position safety locks in each column with push‐button safety release
• Runways adjust for different tread widths and feature non‐skid surface
• Optional 7,000 pound capacity bridge jacks available (Model R​BJ7000)

Specifications:

• Capacity
• Lifting Capacity* | 14,000 lbs. (6,350 kg)
• *Max Capacity / Front Axle | 7,000 lbs. (3,175 kg)
• *Max Capacity / Rear Axle | 7,000 lbs. (3,175 kg)
• Rise
• A - Min. Runway Height | 7.5" (191 mm)
• B - Max. Rise | 70" (1,778 mm)
• C - Max. Lifting Height | 77.5" (1,969 mm)
• Time to Full Rise | 60 seconds
• Outside Dimensions
• D - Overall Width | 130" (3,302 mm)
• E - Outside Length | 243" (6,172 mm)
• F - Overall Length | 272" (6,909 mm)
• G - Height of Columns | 92" (2,337 mm)
• Inside Dimensions
• H - Width Between Columns | 120" (3,048 mm)
• I - Drive-Thru Clearance | 98" (2,489 mm)
• Runways
• J - Runway Width | 20" (508 mm)
• K - Length of Runways | 227.5" (5,778 mm)
• L - Width Between Runways | 34.5" (876 mm) or 41.5" (1,054 mm)
• Alignment
• M - Min. 4-Wheel Alignment | 89" (2,261 mm)
• N - Max. 4-Wheel Alignment | 156" (3,962 mm)
• O - Max. 2-Wheel Alignment | 212" (5,385 mm)
• Minimum Wheelbase
• Rated Capacity | 165" (4,191 mm)
• 75% Capacity | 140" (3,556 mm)
• 50% Capacity | 115" (2,921 mm)
• 25% Capacity | 95" (2,413 mm)
• Locking
• Locking Positions | 15
• Lock Spacing | 4
• Power Unit
• Motor | 220 VAC / 60 Hz / 1 Ph
• Noise | 45 dB
• Shipping
• Weight | 3,368 lbs. (1,527 kg)
• Dimensions | 239" x 25" x 33" (6,071 mm x 635 mm x 838 mm)

Optional Accessories (Sold Separately):

• 5700236 | Deluxe Turnplate Set - Set of 2, Aluminum-Stainless, 18.5" x 18.5"
• 5210438 | WSA-100 - Air/Electric Workstation, Fits 2 and 4 Post Lifts
• 5150509 | Rolling Oil Drain Pan - 15 Gallon Rolling Drain Pan for 4 Post Lift
• 5175800 | JP-3 - Fixed Sliding Jack Tray, Fits Narrow Runway Positions ONLY
• 5175349 | JP-6 - 6,000 lb Capacity, Telescoping Sliding Jack Platform
• 5175801 | Boat Trailer Platform - 3,000 Lb Capacity, Telescoping Boat Trailer Tounge Platform
• 5174009 | Airline Kit - Integrated Rolling Bridge Airline Kit, 4 Post Lifts and Scissor Lifts
• 5215306 | Air Bottle - Compressed Air Bottle for 4 Post Lifts Safety Locks

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by Flatbed truck to a Commercial address.  A forklift must be present to unload lift from truck as liftgate cannot be used.

• SALES TAX | BendPak collects California Sales Tax unless a properly filled out tax exemption form is provided. Sales Tax will NOT be applied at checkout.
• NOTE: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
• NOTE: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201.
