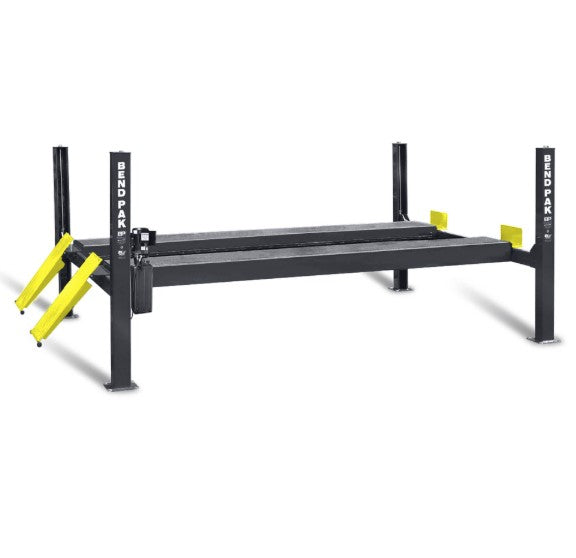

BendPak HDS-18E 18,000-lb. Capacity / Four-Post Lift / Standard

Ready to lift a bus, dump truck and some truly heavy farm equipment? You may just need the HDS-18E, BendPak’s 18,000-lb. capacity four-post truck lift. This massive lift is also ALI Certified, offering superior protection and backup safety measures for heavy-duty lifting.

Incredible Truck Lift for Heavy-Duty Lifting

BendPak's HDS-18E four-post lift is engineered to make light work out of heavy lifting. It’s built to last and features upgrades that increase safety, durability and productivity. This is the lift that graduates from the class of mid-size trucks, vans and SUVs up to heavy-duty applications. This is a professional car lift that can even handle some industrial and farming equipment. It’s also lighter-duty than other lifts in the truck-weight category, so it’s not overkill when you don’t need, for instance, 20 tons of lift capacity when 9 tons will do just fine.

Extended runways
To accommodate long wheelbases, the HDS-18E offers extended runways that are ​249” front-to-back. This is the first of the heavy-duty models to offer extended runways. All 27K, 35K and 40K lifts are built this way. Better-gripping runways ensure the massive tires on your massive vehicles stay put. If the runways gets slick, their treaded surfaces are still able to grab the wheels without damaging or marring them.

Large base plates
12" x 12" base plates don’t just provide a solid foundation, they inspire the confidence to work on virtually any-size vehicle up to the rated weight capacity.

Dual-hub cable sheaves
Supersized 12” diameter cable sheaves within the runway and cross tubes, combined with massive 4” diameter sheave axles, dramatically improve cable wear and critical component lifespan, meaning this car lift increases your safety, so you spend less money in service-related expenses down the road.

Heavy-duty aircraft cable
The HDS-18E four-post lift features four galvanized lifting cables that do an excellent job of providing abrasion resistance and preventing fatigue.

Built-in lubrication
Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.

Spring-loaded safety locks
Spring-loaded safety locks automatically engage continuously during rise, and adjustable safety ladders allow for precise runway leveling, even if the posts have been installed on slightly sloped floors.

Push-button pneumatic lock release
A simple push-button pneumatic lock release makes lowering operations simple and fast. Aircraft-quality stainless steel and aluminum pneumatic cylinders will provide years of trouble-free service.

Secondary lock system
A secondary lock system is on constant guard and acts as a slack-cable device in the unlikely event of an unexpected cable failure. Only consider a four-post lift that offers this secondary lock system.

Integrated design
Lifting cables, airlines, safety latches and sheaves are all fully enclosed within the structure.

Adjustable height locking positions
Features adjustable locking positions for variable-height parking and infinite leveling.

Electric-hydraulic power system
A maintenance-free electric-hydraulic power system assures ultimate dependability. Despite its size and lifting capacity, all controls on the HDS-18E four-post lift are conveniently located within easy reach.

Optional rolling bridge jack (Sold Separately - two makes a set)
Rolling jacks are used to raise the front or rear portion of a vehicle off the car lift’s runways, allowing operators to perform efficient wheel and brake service. A pair of jacks allows the entire vehicle to be elevated. Each jack has telescoping arms and frame contact pads that can be extended over the runways and positioned under vehicle lifting points. Each jack features three safety-lock positions and stackable truck and van adapters for increased lifting height and better access to frame contact points on high ground-clearance vehicles. The jacks come equipped with a commercial-grade air-hydraulic pump.

Features:

• 18,000-lb. lifting capacity
• ALI Certified
• Supersized 12" diameter cable sheaves
• Galvanized lifting cables
• Grease nipples
• Single hydraulic under-runway cylinder
• Integrated flow restrictor
• Durable powder coat
• Spring-loaded safety locks
• Second lock system on constant guard
• Fully enclosed lifting cables
• Multiple adjustable height locking positions
• Maintenance-free electric hydraulic power system
• Conveniently positioned operator controls
• 12" x 12" base plates
• Non-skid runways
• Optional rolling jacks (Sold Separately)



Specifications:

• Capacity
• Lifting Capacity* | 18,000 lbs. (8,165 kg)
• *Max Capacity / Front Axle | 9,000 lbs. (4,082 kg)
• *Max Capacity / Rear Axle | 9,000 lbs. (4,082 kg)
• Rise
• A - Min. Runway Height | 9.5" (241 mm)
• B - Max. Rise | 60" (1,524 mm)
• C - Max. Lifting Height | 69.5" (1,765 mm)
• Time to Full Rise | 75 seconds
• Outside Dimensions
• D - Overall Width | 153.5" (3,899 mm)
• E - Outside Length | 257" (6,528 mm)
• F - Overall Length | 312.75" (7,944 mm)
• G - Height of Columns | 91.25" (2,318 mm)
• Inside Dimensions
• H - Width Between Columns | 133.5" (3,391 mm)
• I - Drive-Thru Clearance | 109" (2,769 mm)
• Runways
• J - Runway Width | 22" (559 mm)
• K - Length of Runways | 255.5" (6,490 mm)
• L - Width Between Runways | 40" (1,016 mm) or 45.25" (1,149 mm)
• M - Runway Centerline | 67.25" (1,708 mm) or 72.5" (1,842 mm)
• N - Outside Edge of Runways | 89.25" (2,267 mm) or 94.5" (2,400 mm)
• Minimum Wheelbase
• Rated Capacity | 185" (4,699 mm)
• 75% Capacity | 160" (4,064 mm)
• 50% Capacity | 135" (3,429 mm)
• 25% Capacity | 110" (2,794 mm)
• Locking
• Locking Positions | 13
• Lock Spacing | Every 4" / 100 mm
• Power Unit
• Motor | 220 VAC / 60 Hz. 1Ph.
• Noise | 45 dB
• Shipping
• Weight | 6,003-lbs. (2,722 kg)
• Dimensions | 265'' x 27'' x 36'' (6,731 mm x 685 mm x 914 mm)

Optional Accessories (Sold Separately):

• 5210438 | WSA-100 Air-Electric Workstation
• 5150509 | Rolling Oil Drain Pan
• 5175800 | JP-3 Fixed Sliding Jack Tray - Narrow Runway Positions Only
• 5175349 | JP-6 6,000 lb Capacity Telescoping Sliding Jack Platform
• 5175801 | Boat Trailer Platform
• 5215306 | Air Bottle

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by Flatbed truck to a Commercial address. A forklift must be present to unload lift from truck as liftgate cannot be used.
• Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
• Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
• BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
