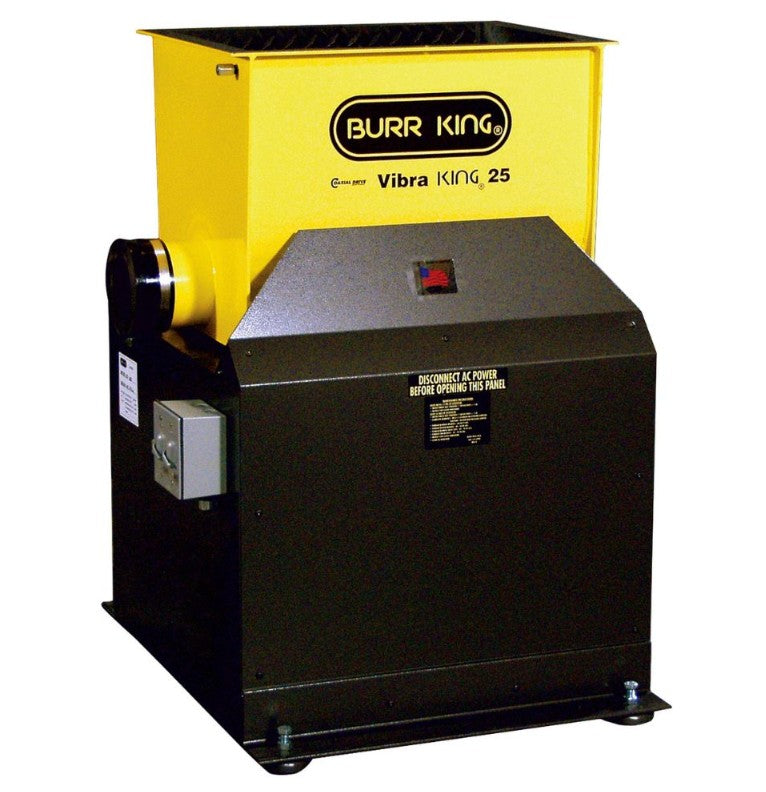

Burr King 25500 M25 Vibratory Tub - 2.5 cu ft w/ Process Timer

Burr King Vibratory Chambers deliver quiet, high performance deburring, polishing, descaling and surface conditioning.

Features:

• 1.5 HP / 120 volt / Single Phase / 60hz

• Process Timer

• 2.5 Cu Ft Total Volume

• 2.1 Cu Ft Working Volume

• 19″ Max part length

• 150 pound media capacity

• 100 pound part capacity

• Quiet performance

• Operate Wet or Dry

• High energy = Fast process results

• Portable

• Integrated, metered compound delivery system

• Flow-through design

• Accepts Filter Pak 4001 or Filter Pak 8000

• Replaceable drain

• Fully adjustable amplitude

• Bronze caged, sealed long life bearings

• Rugged welded steel construction

• Heavy 85 duro hot-pour urethane liner – 5/8″ thick

• Integrated discharge chute

Specifications:

• Total volume | 2.5 cu ft

• Working volume | 2.1 cu ft

• Overall Length | 29 max in

• Overall Width | 33 max in

• Overall Height | 41 max in

• Tub depth, inside | 15"

• Tub length, inside | 20"

• Tub Width, inside | 16"

• Max. part length | 19"

• Media load | 150 lbs

• Part load | 100 lbs

• Weight max. (empty) | 390 lbs

• Shipping Weight | 490 lbs

Optional Accessories:

• Deflector

• Dividers

• Optional Vibra Hush lids reduces sound emissions 3 to 6 db
