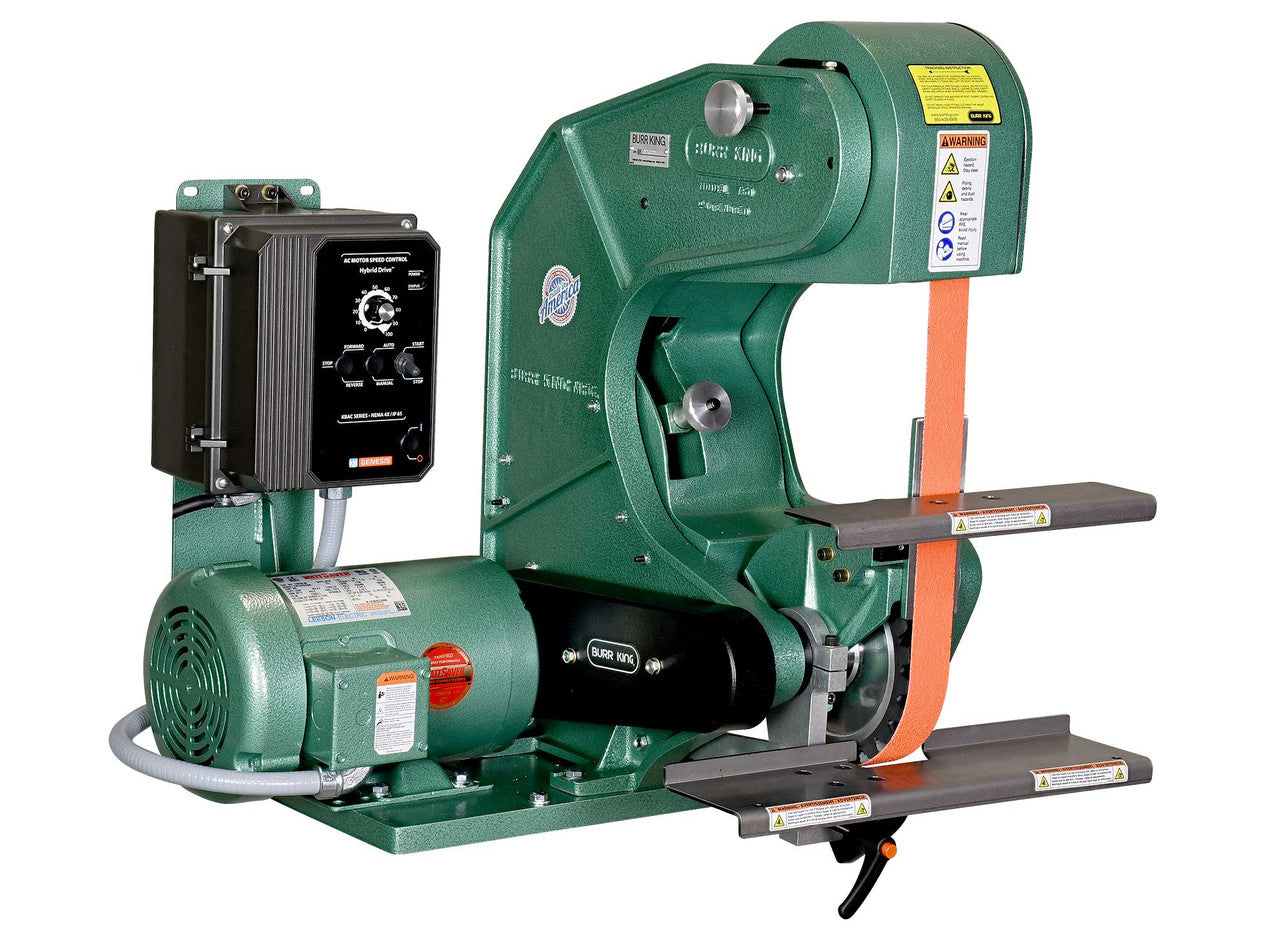

Burr King 72110-98 760 1.5 x 60 Three Wheel Belt Grinder w/ Blade Sharpener

Burr King's family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension. Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability. Model 760 is the largest example of our versatile three wheel belt grinders. Model 760 offers contact, backup platen, worktable and loose belt grinding at 8000 SFPM. Available in easily adjusted variable speed and aggressive single speed. Model 760 can be pedestal (sold in separate package) or bench mounted and uses a standard 60" belt up to 2" wide.

Grinder and Blade Sharpener Features:

• Rotating parts covered eliminating parts entanglement, greater operator safety
• Contact wheel, platen and work rest support grinding
• New urethane covered idler wheels for longer life
• New idler wheels are electrostatically conductive
• Improved dust extraction
• Slack belt grinding
• New and improved door latching system
• Adjustable belt tension
• Positive belt tracking/patented design
• Quick belt change
• Large throat clearance for enhanced work point access
• Precision machined cast aluminum frame
• Accepts internal grinding attachments
• Accepts nylon, buffing, wire, fiber wheels
• Compact footprint friendly to "cell" manufacturing
• OSHA compliant, enclosed guarding.
• 1.5 HP / 120 volt / Single Phase
• 800-8000 SFPM - Variable Speed

Grinder and Blade Sharpener Specifications:

• Wheels | 3
• Contact Wheel Size | 7 x 1.5"
• Throat Clearance | 8-7/8"
• Contact Wheel Hardness | 55 Duro
• Belt Tension Quick Change Assembly | Yes
• Positive Belt Tracking Adjustment | Yes
• Overall Dimensions | 26"h x 24"w x 23"d
• Safety Belt Guard | Yes
• Base Area for Grinder | 10" x 13"
• Steel Backup Platen | 2" x 6" x 1/4"
• Adjustable Work Rest | Yes
• Construction | Cast Aluminum
• Bench or Pedestal Mounted | Yes
• Process Evaluation | Grinding
• Main Application | Belt Grinding
