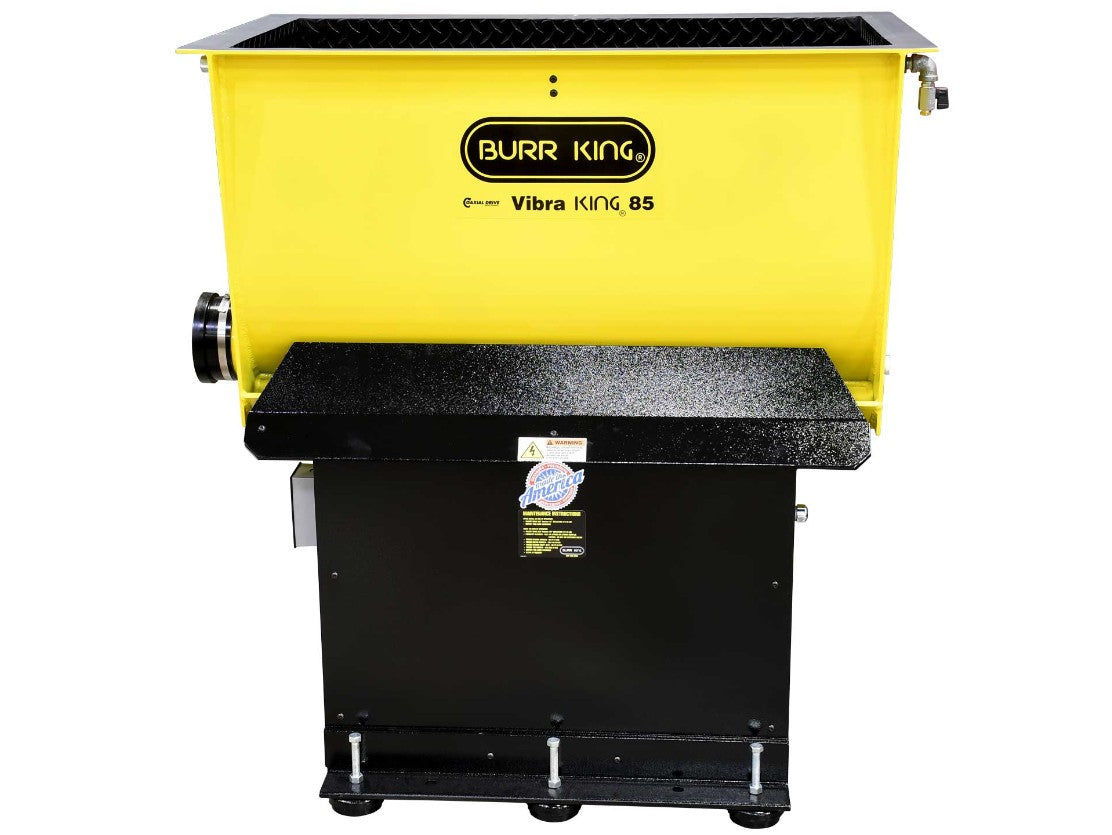

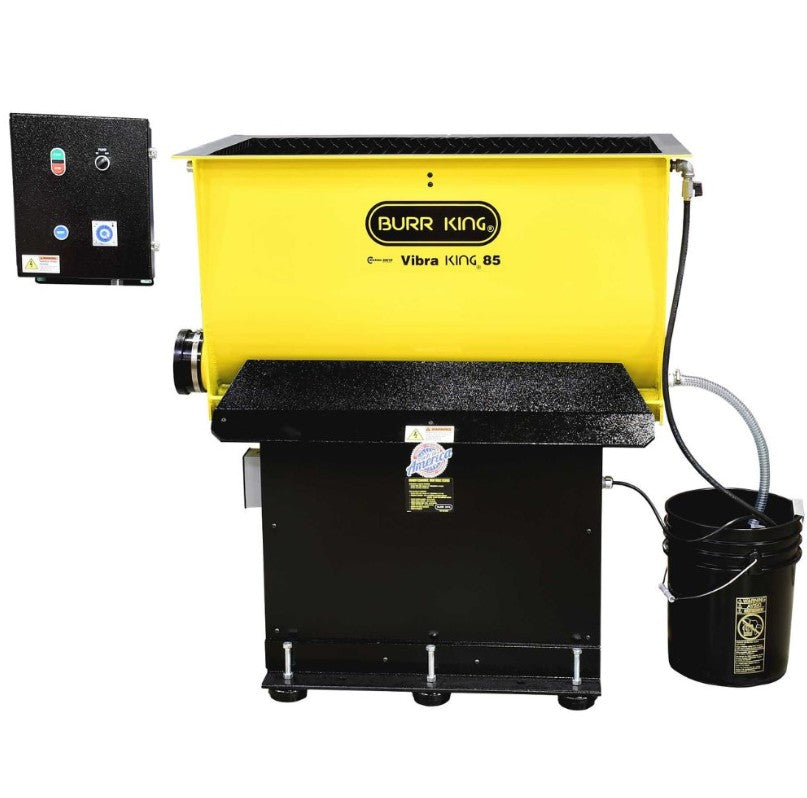

Burr King 85303 M85 Vibratory Tub - 8.5 cu ft w/ Process Timer & Magnetic Starter

Burr King Vibratory Chambers deliver quiet, high performance deburring, polishing, descaling and surface conditioning.

Features:

• 3 HP / 220 volt / Three Phase / 60hz

• Process Timer

• Magnetic Starter

• 8.5 Cu Ft Total Volume

• 7.2 Cu Ft Working Volume

• 36″ Max part length

• 450 pound media capacity

• 450 pound part capacity

• 1000 SumpPak & Pump Included

• Quiet performance

• Operate Wet or Dry

• High energy = Fast process results

• Portable

• Integrated, metered compound delivery system

• Flow-through design

• Accepts Filter Pak 4001 or Filter Pak 8000

• Replaceable drain

• Fully adjustable amplitude

• Bronze caged, sealed long life bearings

• Rugged welded steel construction

• Heavy 85 duro hot-pour urethane liner – 5/8″ thick

• Integrated discharge chute

Specifications:

• Total volume | 4.5 cu ft

• Working volume | 7.2 cu ft

• Overall Length | 48 max in

• Overall Width | 36 max in

• Overall Height | 45 max in

• Tub depth, inside | 20"

• Tub length, inside | 37"

• Tub Width, inside | 20"

• Max. part length | 36"

• Media load | 450 lbs

• Part load | 450 lbs

• Weight max. (empty) | 675 lbs

• Shipping Weight | 845 lbs

Optional Accessories:

• Deflector
• Dividers

• Vibra Hush lids reduces sound emissions 3 to 6 db
