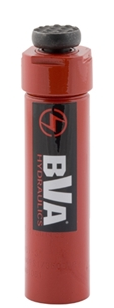

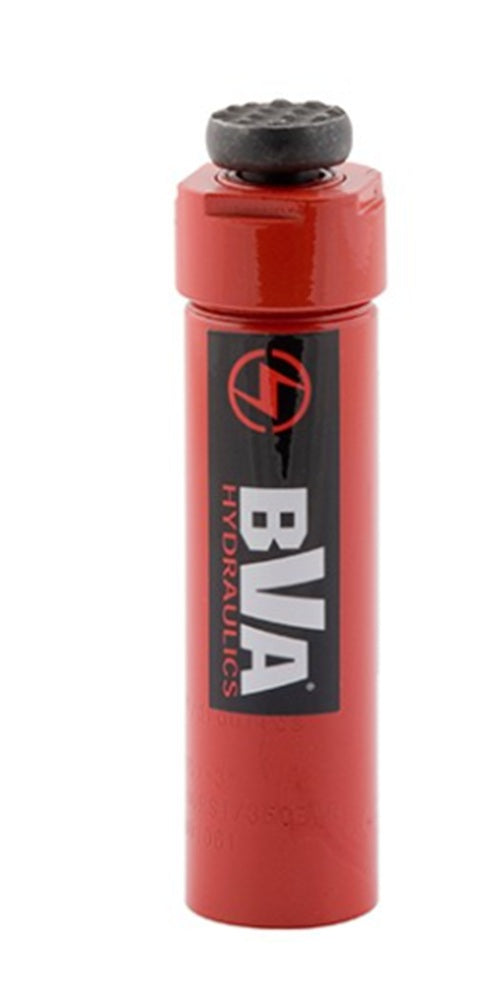

BVA H0203 2 Ton 3 Inch Stroke Single Acting Cylinder

Features:

• Internal plunger threads
• Snap-in grooved saddles
• Plunger wipers help seal out dirt
• Collar fixture threads
• Two base mounting holes
• Maximum working pressure: 10,000 psi/ 700 bar
• High strength steel construction
• High-flow couplers CRZ14F Coupler
• Collar thread protector
• Load Return
• Collar threads and base mounting holes for fixturing
• Hard chrome plated piston rod protects against corrosion and damage
• Polyurethane U-Cup seals provide a sure seal and long life
• Solid one piece alloy steel body
• One piece aluminum alloy bearing protects against cylinder wall damage
• CH38F high flow coupler with dust cap is standard on MOST cylinders

Specifications:

• Model Number | H0203*
• Cylinder Capacity | 2 ton
• Stroke | 3.07"
• Collapsed Height | 5.39"
• Oil Capacity | 2.28"
• Weight | 2 lbs

* H0203 load return
