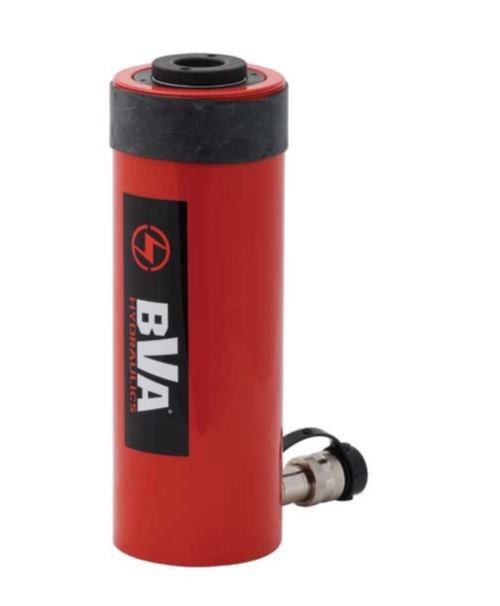

BVA HC3006T 30 Ton 2" Hollow Hole Cylinder

Features:

• Minimum leak risk
• Ideal for pulling and pushing applications
• Heavy duty compression spring
• Dual wipers help prevent contamination
• Collar thread protector
• High flow coupler with dust cap
• XT cylinders do not come with plunger internal threads

Specifications:

• Cylinder Capacity | 30 tons
• Stroke | 2.52"
• Cylinder Effective Area | 6.32"
• Internal Pressure at Capacity | 9,488 psi
• Oil Capacity | 15.93"
• Weight | 22.9 lbs
• Collapsed Height | 7.05"
• Extended Height | 9.57"
• Bore Diameter | 2.84"
• Overall Diameter | 4.5"
• Base to Inlet Port | 0.91"

Rod Specifications:

• Internal Diameter | 1.31"
• Overall Diameter | 2.48"
• Internal Thread | 1-13/16" - 16UN
• Internal Thread Length | 0.87"

Collar Thread Specifications:

• Diameter | 4-1/2" - 12"
• Length | 1.66"

Base Mounting Hole Specifications:

• Bolt Circle | 3.62"
• Thread | 3/8" - 16UNC
• Thread Depth | 0.55"

Compares To*:

• Enerpac RCH-302
• PowerTeam RH302
• Simplex RC302

*For comparison purposes only. Products are not identical.
