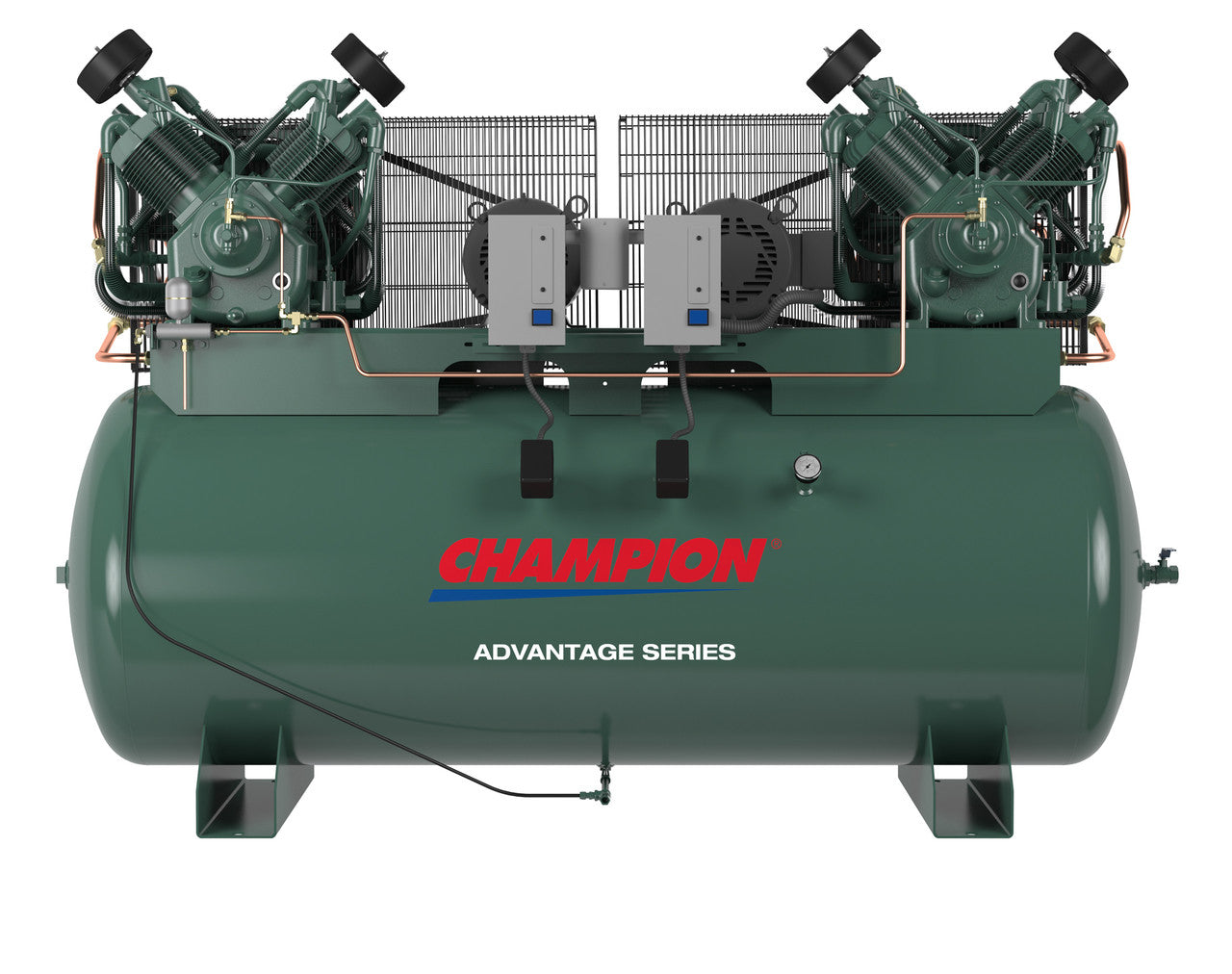

Champion HR10D-24ADV 10 HP Horizontal Tank Duplex Air Compressor

Two Stage, Splash Lubricated (5-25 HP) Reciprocating Air Compressor

The Advantage Series units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.

Features:

• 5 - 25 hp
• Maximum Pressure Up to 175 psig
• 16.5 - 90.1 acfm at 175 psig
• Two Stage, Splash Lubricated
• Tank Mounted, Simplex and Duplex Models
• Vertical or Horizontal Configurations
• Package comes standard with up to six pre-installed options
• Factory filled with ChampLub lubricant

Benefits:

• Convenience. Each package comes standard with up to six, pre-installed options: magnetic starter, auto tank drain, vibration isolator pads, low oil level monitor, air cooled aftercooler, duplex control panel.
• Confidence. Each compressor features a 3-year pump warranty and 1-year package warranty.
• Cost-Efficiency. Fully-equipped packages mean lower purchase prices and installation costs.
• Configuration. Advantage Series configuration provide maximum versatility in every application.
• Competitive Advantage. Unique features make the Advantage Series more competitive. From its heavy-duty design to its ease of maintenance, the Advantage Series exemplifies reliability, durability and quality.

Specifications:

• Phase | 3
• 60 Hz Volts | 230
• Unit Configuration | Duplex
• Tank | Horizontal
• Tanks Size (Gallons) | 240
• Unit Model Number | HR10D-24
• Pump Model | R-30D
• ACFM 175 PSIG | 67.6
• Air-Cooled Aftercooler | Standard
• Dual Control | N/A

PLEASE NOTE, IMPORTANT INFORMATION:

• *** PLEASE CONFIRM CORRECT VOLTAGE/PHASE WHEN ORDERING ***
• FREE SHIPPING IS TO A COMMERCIAL ADDRESS ONLY
• Variations to Advantage unit configurations are not accepted, for alternative options please refer to the R-Series product.
• SALES TAX | Champion is required to collect sales tax for the following states: KS, MD, MS, NV, unless a properly filled out tax exemption form is provided.
