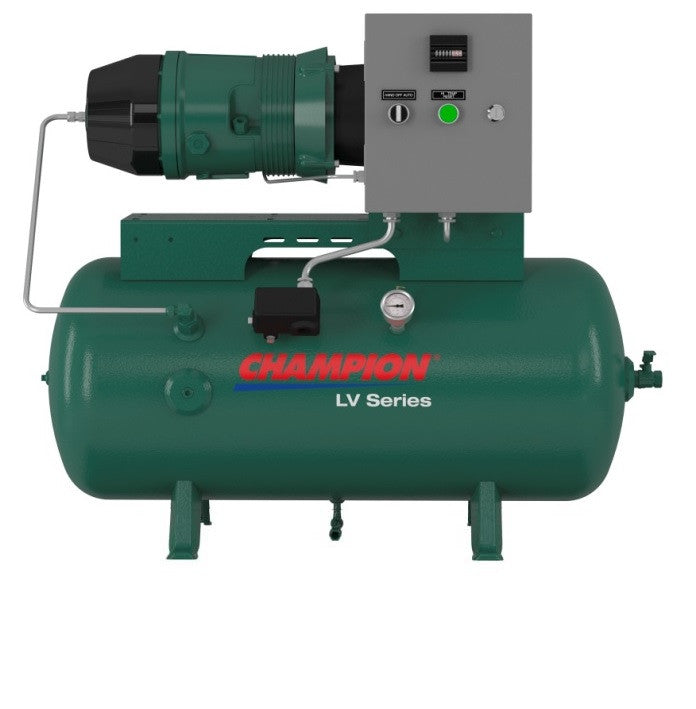

Champion LVR05PURHS-8 7.5 HP 80 Gal Horizontal Tank

7.5 HP, 208/230 Volt Single Phase, 80 Gallon Horizontal Tank

Features:

• Advanced Champion rotary vane airend with cast iron
• TEFC electric motor rotor, vanes, and stator unit
• 3ppm oil carry over
• Direct drive
• Low noise
• Slow speed - 1760RPM
• CS300 vane diester lubricant (factory filled)
• High Temperature Safety Shutdown Protection
• NEMA 1 Mounted Full Voltage Starter Panel
• 208-230/460 Volt 3 phase available - CALL FOR PRICE!

Specifications:

• Horsepower | 7.5
• Model Number | LVR05PURHS-8
• CFM Delivery | 22.2 @ 150psi
• Phase | 1
• Voltage | 208/230
• Oil Capacity | 1 gal
• Tank | 80 gal
• Shipping Weight | 550 lbs
• Dimensions | 66"l x 23"w x 43"h
• Tank Outlet | 1/2 NPT

*This Unit Includes Vibration Isolators and Electric Automatic Tank Drain*
