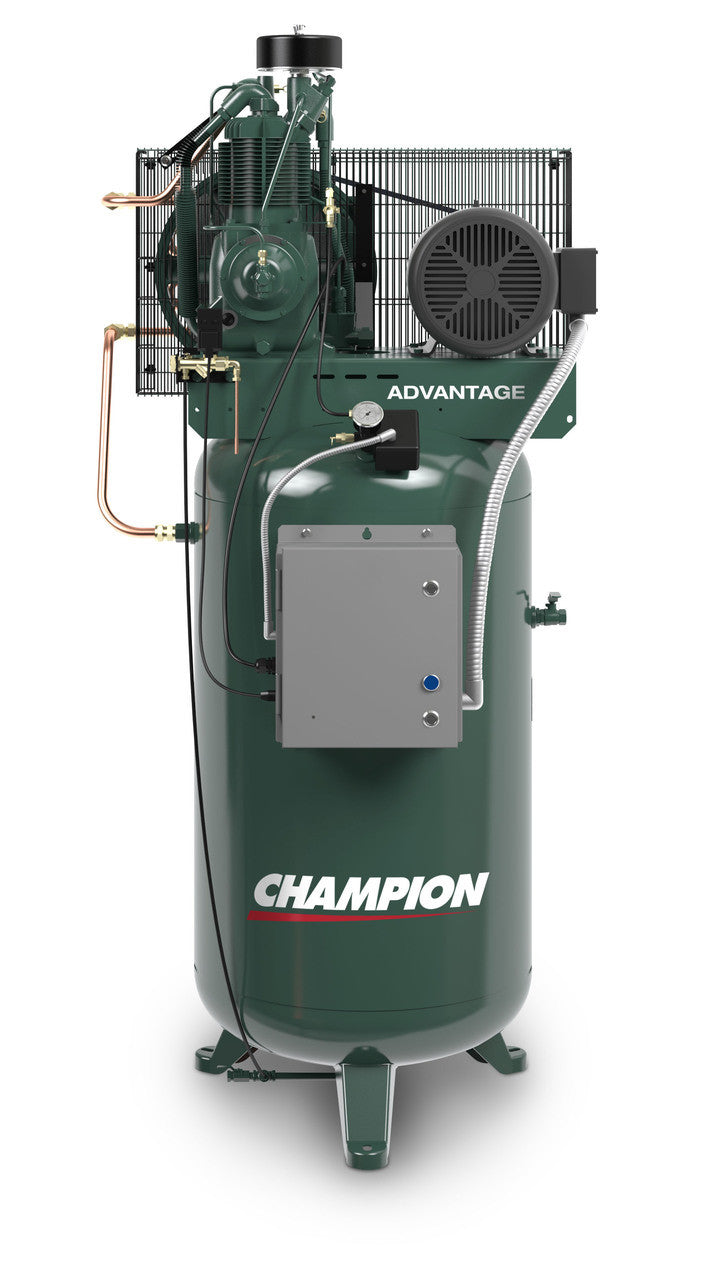

Champion VR5-8ADV-3 5 HP 3 Phase Vertical Tank Air Compressor

Advantage Standard Features: Simplex

• Heavy Duty Two-Stage, Splash-Lubricated Air Compressor Pump(s)
• Multi-Finned Cylinders
• Integral Cylinder Head
• Intercoolers for Cooling Between Stages
• Reliable High Flow Disc Valves
• Tapered Roller Main Bearings
• Balanced Crankshaft
• Oil-Level Site Glass
• Centrifungal Unloader for Loadless Starting
• 0-300 PSIG Air Pressure Gauge
• Factory Fill with ChampLub Lubricants
• Mounted Nema 1 Control Panel
• Low Oil Stop Control
• Electric - Auto Tank Drain
• Vibration Isolators
• R-Series, two stage pump
• Loadless Starting
• Intake Filter
• Start/Stop Pressure Switch Control
• 1800 RPM Motor
• ASME Coded Receiver
• Pressure Relief Valve
• Service Valve
• Drain Valve
• Pressure Gauge
• Enclosed Belt Guard
• Oversized Inlet Filter

Premium Accessories Included:

• Vibration Isolator Pads | Isolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from out-of-level floor situation that could cause vibration and damage
• Control Panel (Duplex units utilize two magnetic starters and alternators) | Provides thermal overload protection, and transformer (simplex only) provides reliable low voltage output to the auxiliary components. May be mounted or unmounted.
• Automatic Tank Drain | A pneumatic or adjustable electric time drain automatically discharges moisture from the receiver
• Low Oil-Level Monitor | Low oil-level monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.

Specifications:

• Tank | Vertical
• Tank Size (Gallons) | 80
• Phase | 3
• Volts | 208 OR 230
• Model Number | VR5-8
• Control Panel, Level 1 | Standard
• Panel Mounting | Standard
• Low Oil Stop Control | Standard
• Electric Tank Drain | Standard
• Vibration Isolators | Standard
• Air Cooled Aftercooler | N/A
• Dual Control | N/A
• California Compliant | Yes
• Pump Model | R15
• Pump RPM | 710
• ACFM @ 175 PSIG | 17.3
• Est Weight (lbs) | 550

PLEASE NOTE, IMPORTANT INFORMATION:

• *** PLEASE CONFIRM CORRECT VOLTAGE/PHASE WHEN ORDERING ***
• Variations to Advantage unit configurations are not accepted, for alternative options please refer to the R-Series product.
• SALES TAX | Champion is required to collect sales tax for the following states: KS, MD, MS, NV, unless a properly filled out tax exemption form is provided.
