Champion  |  SKU: CHAVR7F8ADV

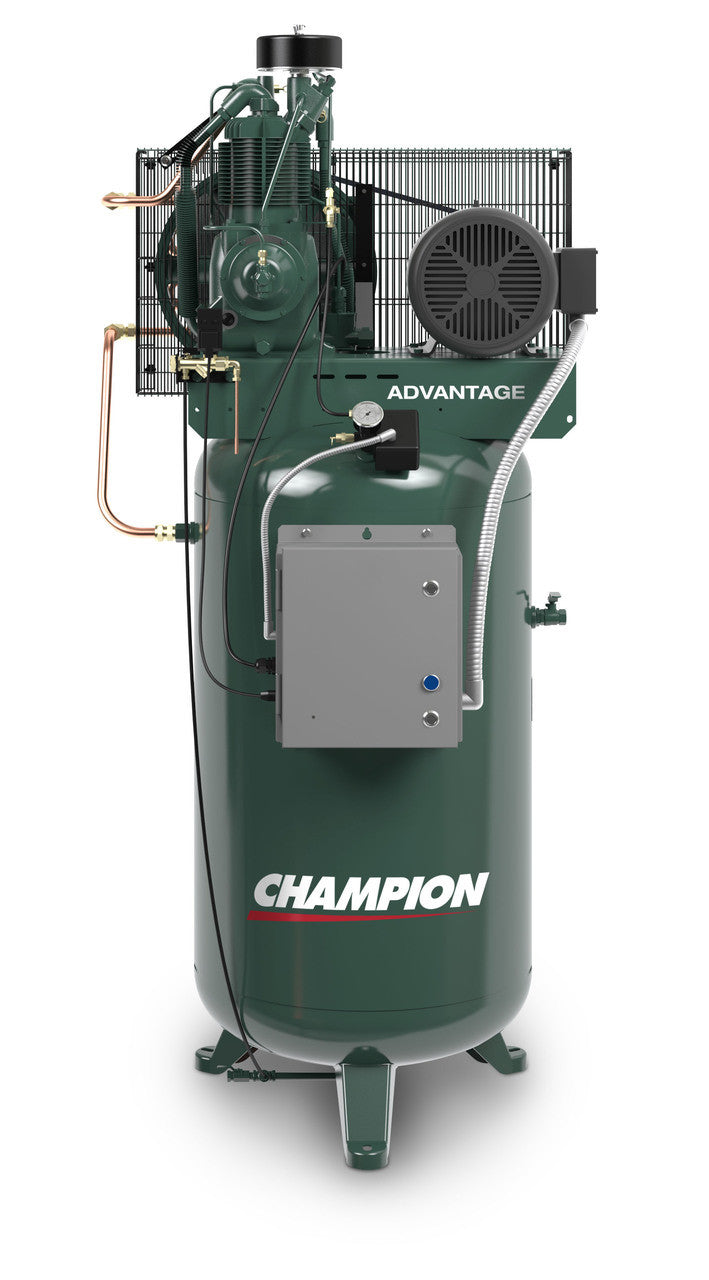

Champion VR7F-8ADV 7 1/2 HP Vertical Tank Air Compressor

$4,709.07
Contact Us

Champion VR7F-8ADV 7 1/2 HP Vertical Tank Air Compressor

Advantage Standard Features: Simplex

  • Heavy Duty Two-Stage, Splash-Lubricated Air Compressor Pump(s)
  • Multi-Finned Cylinders
  • Integral Cylinder Head
  • Intercoolers for Cooling Between Stages
  • Reliable High Flow Disc Valves
  • Tapered Roller Main Bearings
  • Balanced Crankshaft
  • Oil-Level Site Glass
  • Centrifungal Unloader for Loadless Starting
  • 0-300 PSIG Air Pressure Gauge
  • Factory Fill with ChampLub Lubricants
  • Mounted Nema 1 Control Panel
  • Low Oil Stop Control
  • Electric - Auto Tank Drain
  • Vibration Isolators
  • Air Cooled After Cooler
  • R-Series, two stage pump
  • Loadless Starting
  • Intake Filter
  • Start/Stop Pressure Switch Control
  • 1800 RPM Motor
  • ASME Coded Receiver
    • Pressure Relief Valve
    • Service Valve
    • Drain Valve
    • Pressure Gauge
  • Enclosed Belt Guard
  • Oversized Inlet Filter

Premium Accessories Included:

  • Vibration Isolator Pads | Isolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from out-of-level floor situation that could cause vibration and damage
  • Control Panel (Duplex units utilize two magnetic starters and alternators) | Provides thermal overload protection, and transformer (simplex only) provides reliable low voltage output to the auxiliary components. May be mounted or unmounted.
  • Automatic Tank Drain | A pneumatic or adjustable electric time drain automatically discharges moisture from the receiver
  • Low Oil-Level Monitor | Low oil-level monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.
  • Air Cooled After Cooler |

Specifications:

  • Tank | Vertical
  • Tank Size (Gallons) | 80
  • Phase |
  • Volts | 208
  • Model Number | VR7F-8
  • Control Panel, Level 1 | Standard
  • Panel Mounting | Standard
  • Low Oil Stop Control | Standard
  • Electric Tank Drain | Standard
  • Vibration Isolators | Standard
  • Air Cooled Aftercooler | Standard
  • Dual Control | N/A
  • California Compliant | Yes
  • Pump Model | R15
  • Pump RPM | 990
  • ACFM @ 175 PSIG | 23.1
  • Est Weight (lbs) | 640

PLEASE NOTE, IMPORTANT INFORMATION:

  • *** PLEASE CONFIRM CORRECT VOLTAGE/PHASE WHEN ORDERING ***
  • Variations to Advantage unit configurations are not accepted, for alternative options please refer to the R-Series product.
  • SALES TAX | Champion is required to collect sales tax for the following states: KS, MD, MS, NV, unless a properly filled out tax exemption form is provided.
