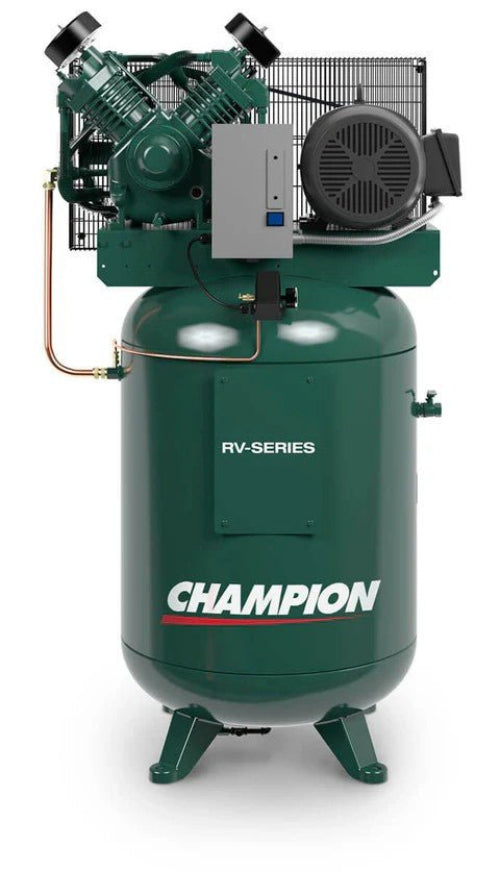

Champion VRV10-12 10 HP 3 Ph, RPM 1800, Vert 120 Gal Tank Air Compressor
Champion VRV10-12 10 HP 3 Ph, RPM 1800, Vert 120 Gal Tank Air Compressor is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

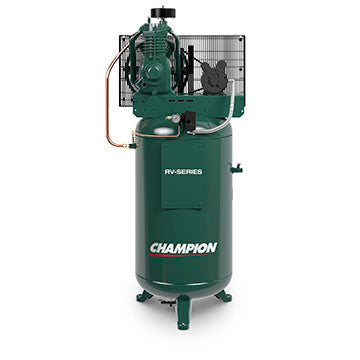

Champion VRV10-12 10HP, 120 Gallon RV-Series Air Compressor
With Champion, you not only get value, you also get the confidence that comes with owning a solid, reliable compressor. The RV-Series exemplifies quality, reliability, long life and tremendous value. Champion provides the total package -- a low cost solution with a broad range of options -- saving money and providing peace of mind.
Features:
- Mounted NEMA 1 Starter
- Controls | Tank mounted Simplex is start/stop pressure switch control
- ASME coded receiver (EXCEPT Base Mount Models)
- 1800 RPM Motor
- Intake Filter/Silencer
- Enclosed Belt Guard
- Loadless Starting
- California Code Compliant Receiver
Specifications:
- Model Number | VRV10-12
- Configurator | RV2-15A
- Product Configuration | Simplex
- Tank Configuration | Vertical
- Pump Model | RV30
- Motor RPM | 1800
- Pump RPM @ 175 PSI | 718
- Tank Size (Gallons) | 120
- ACFM @ 125 PSIG | 34.7
- ACFM @ 175 PSIG | 33.8
- Est Ship Weight (Lbs) | 895
- Voltage | 208 / 230 / 460 / 575V - 3PH
- Starter - NEMA 1 | Standard
Additional Available Options (Additional Up-charges Apply):
- Mass. Code Fittings
- Air Cooled Aftercooler
- Low Oil Stop Control*
- Auto Tank Drain
- Vibration Isolators
* NOTES: Low Oil Stop Control has N4 rating ast he standard product offering.
PLEASE NOTE, IMPORTANT INFORMATION:
- *** PLEASE CONFIRM CORRECT VOLTAGE/PHASE WHEN ORDERING ***
- This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
- SALES TAX | Champion is required to collect sales tax for the following states: KS, MD, MS, NV, unless a properly filled out tax exemption form is provided. Sales Tax will NOT be applied at checkout.
