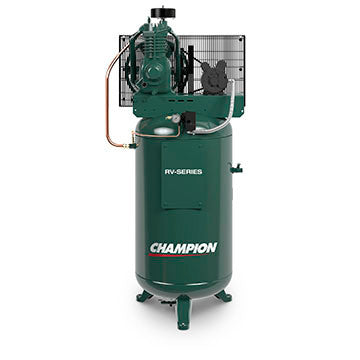

Champion VRV7-8 7.5 HP, 80 Gallon RV-Series Air Compressor

**Image may vary from Actual Product**

With Champion, you not only get value, you also get the confidence that comes with owning a solid, reliable compressor. The RV-Series exemplifies quality, reliability, long life and tremendous value. Champion provides the total package -- a low cost solution with a broad range of options -- saving money and providing peace of mind.

Standard Features:

• Mounted NEMA 1 Starter
• Controls | Tank mounted Simplex is start/stop pressure switch control
• ASME coded receiver (EXCEPT Base Mount Models)
• 1800 RPM Motor
• Intake Filter/Silencer
• Enclosed Belt Guard
• Loadless Starting
• California Code Compliant Receiver

Specifications:

• Model Number | VRV7-8
• Configurator | RV2-15A
• Product Configuration | Simplex
• Tank Configuration | Vertical
• Pump Model | RV30
• Motor RPM | 1800
• Pump RPM @ 175 PSI | 570
• Tank Size (Gallons) | 80
• ACFM @ 125 PSIG | 28.7
• ACFM @ 175 PSIG | 25.6
• Est Ship Weight (Lbs) | 710
• Voltage | 208 / 230V - 1PH or 208 / 230 / 460 / 575V - 3PH
• Starter - NEMA 1 | Standard

Additional Available Options (Additional Up-charges Apply):

• Mass. Code Fittings
• Air Cooled Aftercooler
• Low Oil Stop Control*
• Auto Tank Drain
• Vibration Isolators

* NOTES: Low Oil Stop Control has N4 rating ast he standard product offering.
