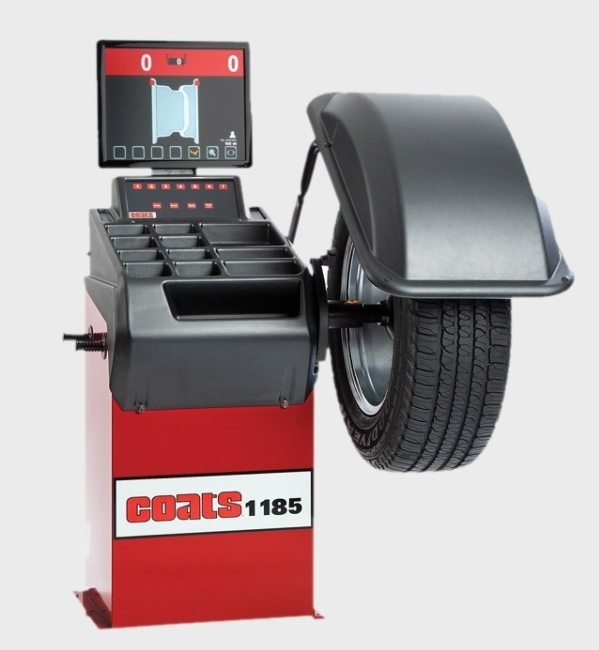

COATS 1185 Wheel Balancer

The Coats 1185 Wheel Balancer is designed for precision and efficiency in light to medium-duty environments, offering features typically found on larger, more advanced machines. Its Laser Line Weight Placement Guidance ensures exact weight positioning, while the color LCD display and Live Position Indexing Guidance provide real-time visual and audio cues for accurate balancing. With automatic braking, hood-close auto start, and hidden weight mode, the Coats 1185 simplifies the balancing process for improved workflow.

Built to handle wheels up to 30" in diameter and 130 lbs in weight, the Coats 1185 Wheel Balancer delivers professional-grade accuracy with an imbalance resolution of 0.1 oz at speeds under 130 rpm. Complete with essential accessories, including a full set of cones, a premium wheel weight hammer, and calipers, this wheel balancer is a reliable solution for shops looking to enhance efficiency without compromising precision.

Features:

• LASER LINE WEIGHT PLACEMENT GUIDANCE | Easily visible laser line helps operators place weights right where they are needed.
• COLOR LCD DISPLAY | Vivid color display alerts operator to the imbalance location and identifies the optimal tape on or clip weight location
• LIVE POSITION INDEXING GUIDANCE | Audio and graphics-based notifications alert operator when weight placement is needed

Specifications:

• Balancing Modes | 5
• Display / User Interface | LCD video display / Soft Touch key input
• Data Entry | A&D Arm
• Hidden Weight Mode | Yes
• Cones Included | Cones (A,B,C & D)
• Laser | 6 o'clock bottom center
• Braking System | Automatic
• Auto Start | Yes - hood close
• Max Assembly Weight | 130 Lbs
• Max Tire Width | 20"
• Max Wheel Diameter | 30"
• Balancing Speed | <130 rpm
• Shaft Diameter | 40mm
• Imbalance Resolution | 0.1 oz
• Electrical requirements | 110V, 1 ph, 50/60 Hz, 3 amp
• Weight | 243 Lbs
• Footprint | 36.96 x 39.60 x 52.32
• Part Number | 8001185
• Warranty | 1 Year Parts, 6 Months Labor

Accessories (Included with Purchase):

• 8112098 Small A Cone
• 8112099 Medium B Cone
• 8112100 Large C Cone
• 8112101 Light Truck D Cone
• 8113175 Premium Wheel Weight Hammer
• 8309011 Calipers
• 8112103 Hub Nut
• 8112106 Small Pressure Drum w/Ring
• 8112421 Short Cone

Recommended Optional Accessories (Sold Separately):

• 85606394 Light Truck Back Cone Spacer
• 8113795 In-Between Cone Set
• 8113277C Light Truck Cone Kit
• 85009998 2-Jaw Slide Nut Kit
• 85609499 Double Sided Low Angle Collets
