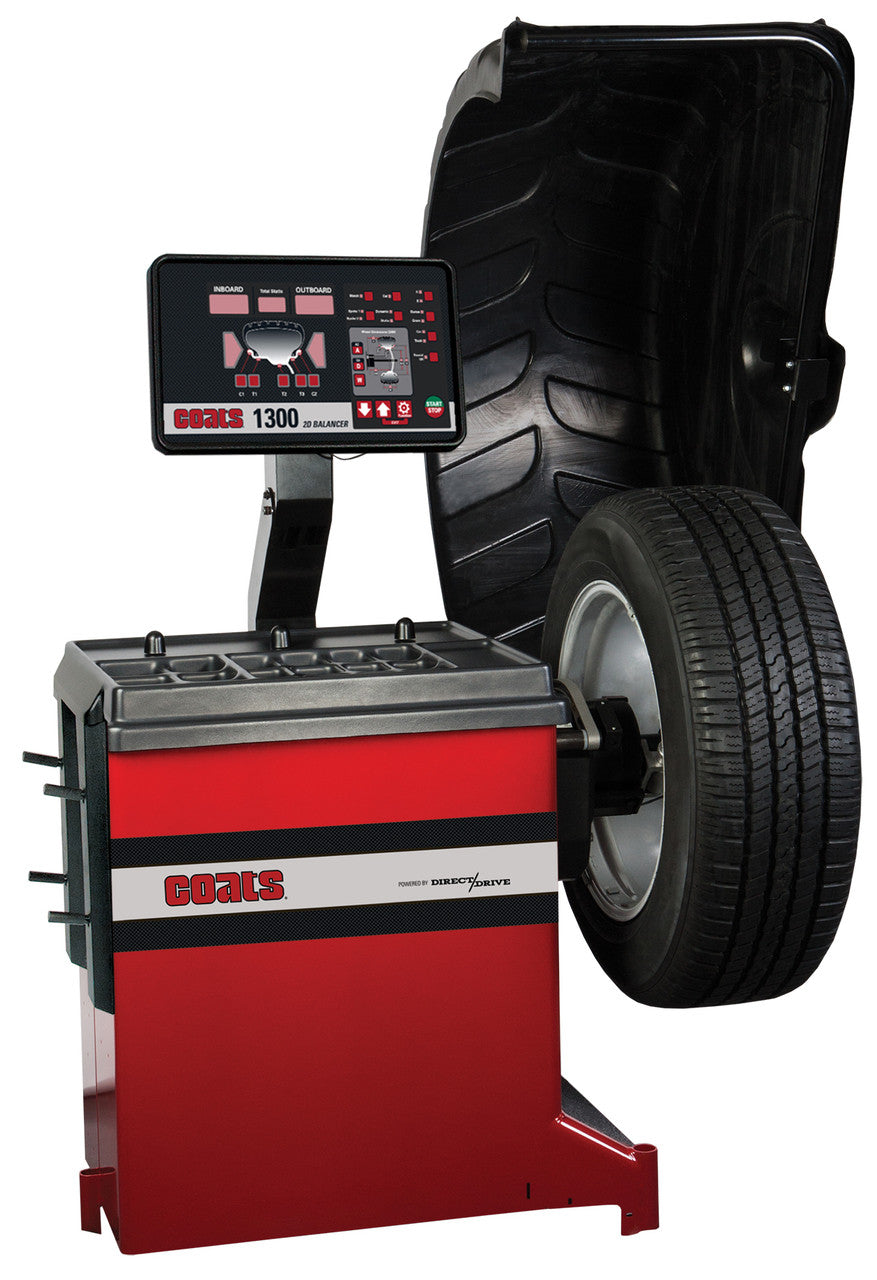

Coats 1300 Wheel Balancer

REBATE | $250 OFFER EXPIRES DECEMBER 15, 2024 | http://rebate.ammcoats.com/rebate.aspx

Packed with Features for Front Line Tire Service:

• The Direct Drive Series combines the accuracy and durability of Coats’ Direct Drive system with an exclusive set of easy to use balancing features designed to get the job done right the first time, every time.

Top Features:

• Powered by Direct Drive | Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.
• Static-on-Screen | Simultaneously displays both static and dynamic unbalance data.
• 2-D Automatic Data Entry | Offers automatic data entry of distance and diameter. This eliminates the chance of technician error and speeds up the balancing.

Behind the Spoke

• Behind the Spoke mode allows you to hide the Tape-A-Weight behind the spokes of a decorative wheel quickly and easily. This keeps the weights hidden from view. Now balancing more complex wheel designs is faster and easier than ever before, plus you maintain a clean look on custom wheels for maximum customer satisfaction.

Specifications:

• Balancing Modes | 8
• Wheel Diameter Range | 8" - 30"
• Wheel Width Range | 2" - 20"
• Maximum Tire Diameter | Up to 44"
• Maximum Tire Weight | 150 lbs.
• Shaft Diameter | 40 mm
• Resolution (Round Off Mode) | 0.01 oz
• Foot print | 60"w x 60"d x 78"h
• Ship Weight | 639 lbs.
• Interface | LED
• Automatic Data Entry | Distance/Diameter
• Electrical Requirements | 220v, 1ph or 220v, 3ph
• Warranty | 3 Year Parts, 6 Months Labor
• Part Number | 80013002D - 1ph / 80013002D01 - 3ph

Accessories: (Included With Purchase)

• 8112098 | Small A Cone
• 8112099 | Medium B Cone
• 8112100 | Large C Cone
• 8112101 | Light Truck Back Cone - D Cone
• 85607780 | Premium Wheel Weight Hammer
• 8110542 | Small Pressure Cup & Rubber Lip
• 8112107 | Spring
• 8309011 | Calipers
• 8112103 | Hub Nut
• 85608312 | No Mar Ring

1300 Optional Accessories (Sold Separately):

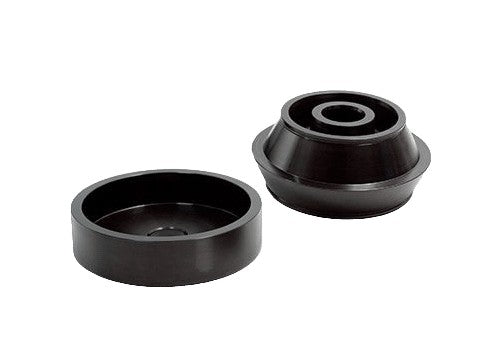

• Part Number 113277C | Light Truck Cone Kit (40mm)
• Part Number 113795 | In-Between Cone Set, 40MM
• Part Number 112421 | Short Cone, Balancer, 40mm i.d., Range 2.650" - 3.025" (67.31-76.84mm)

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck and extra shipping charges will apply to ship to a non-commercial address.
