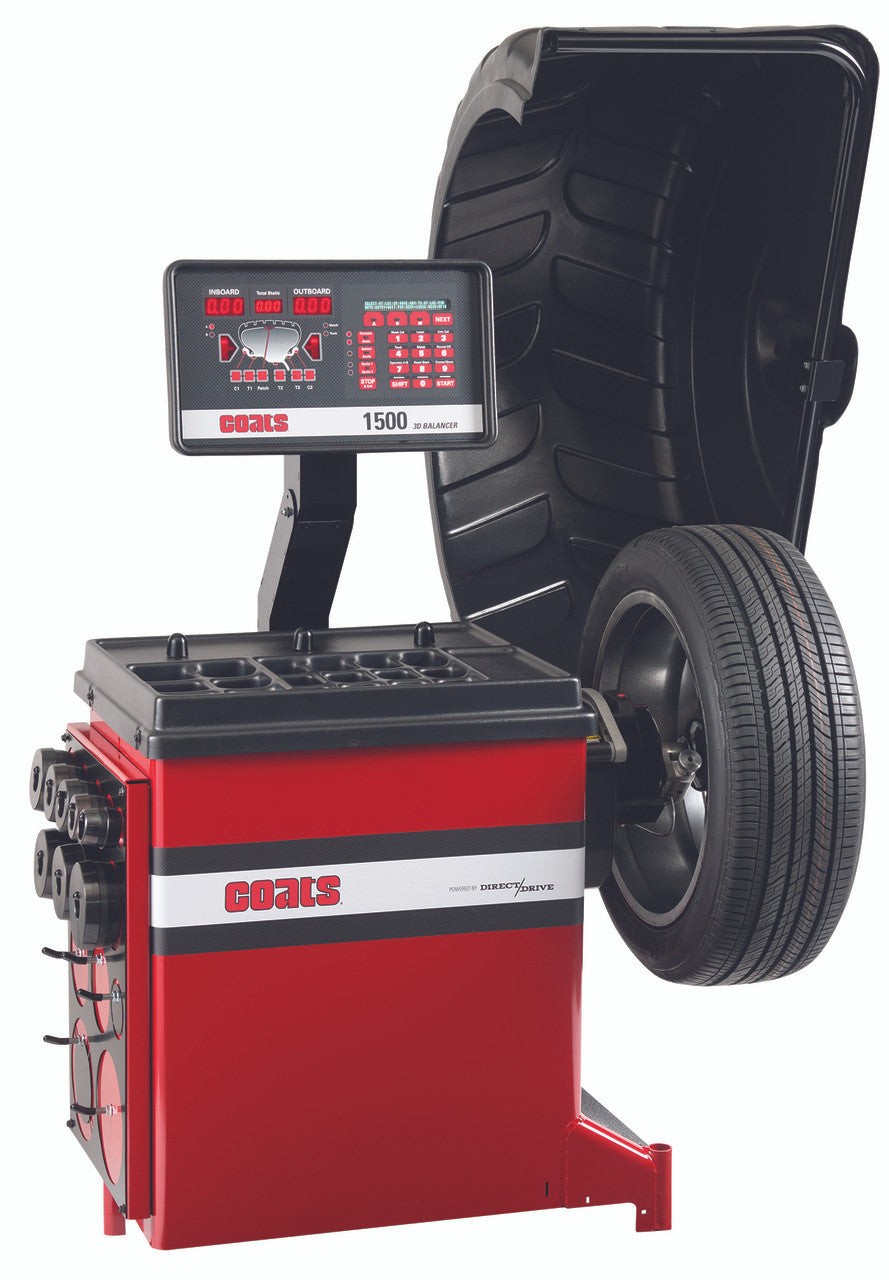

Coats 1500 Wheel Balancer

REBATE | $1500 OFFER EXPIRES DECEMBER 15, 2024 | http://rebate.ammcoats.com/rebate.aspx

Top Features:

• Powered By Direct Drive | Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.
• Laser Guided Operation System | Pinpoints the exact weight location, both radially and axially and eliminates trial and error.
• Stop, Lock and Index | Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application

LEGENDARY RELIABILITY WITH STATE OF THE ART CAPABILITY

• Powered by Direct Drive
• Premium Quicknut
• Stop, Lock & Index
• 8 Balancing Modes
• Automatic 3-D Data Entry
• Basic Adapter Kit Included

Features:

• 3D Automatic Data Entry | Offers automatic data entry of the distance, diameter and width. This eliminates the chance of technician error and speeds up the balancing process
• Behind Spoke | Behind Spoke mode allows you to hide the Tape-A-Weight behind the spokes of a decorative wheel quickly and easily. This keeps the weights hidden from view. Now balancing more complex wheel designs, the Coats 1500 is faster and easier than ever before, plus you maintain a clean look on custom wheels for maximum customer satisfaction.
• Side Shadow Board | The side shadow board with basic accessory kit comes standard on the 1500 balancer.

Specifications:

• Rim Diameter | 8"–30"
• Rim Width | 2"–20"
• Tire Diameter | 44"
• Shaft Diameter | 40mm
• Footprint | 57"w x 55"d x 75"h
• Shipping Weight | 616 lbs.
• Part Number:
• 80015003D | 1 PH, 220V
• 80015003D01 | 3PH, 220V

Optional Accessories (Sold Separately):

• 113277C | Light Truck Cone Kit (40MM)

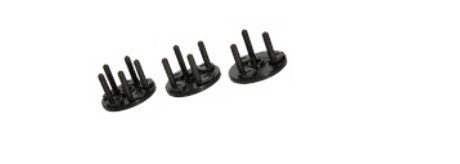

• 85610104 | 3, 4, 5 Lug Adjustable Pin Plate Set
• 5611072 | Double Sided Mazda Collet

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
