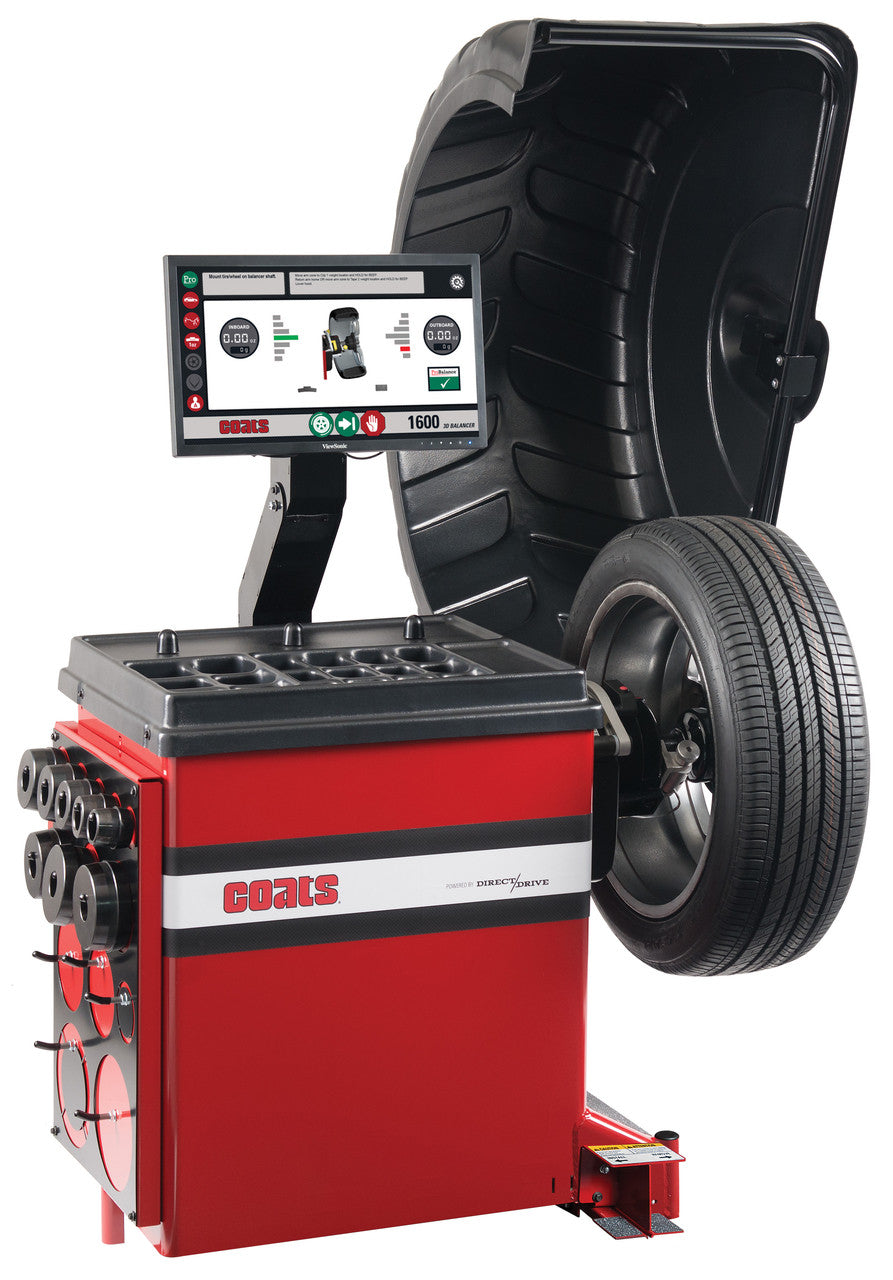

Coats 1600 Wheel Balancer

REBATE | $750 OFFER EXPIRES DECEMBER 15, 2024 | http://rebate.ammcoats.com/rebate.aspx

Top Features:

• Powered By Direct Drive | Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.
• Probalance Technology | A unique balancing system (unbalance correction methodology) that minimizes both static and couple unbalance.
• Speed Thread | Provides the ability to thread the hub nut at the push of a pedal to improve the ease-of-use and speed of mounting the wheel.

EVERY FEATURE OF THE 1600 WAS DESIGNED TO DELIVER A PERFORMANCE BALANCE FOR YOUR CUSTOMERS

• Powered by Direct Drive
• ProBalance Technology
• Touchscreen
• Automatic 3-D Data Entry
• Basic Adapter Kit Included
• NEW Collet Adapters

Features:

• Stop, Lock and Index | Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application.
• Laser Guided Operation System | Pinpoints the exact weight location, both radially and axially and eliminates trial and error.
• LED Barrel Lighting | Illuminates the barrel of the wheel to aid wheel weight placement.

Specifications:

• Rim Diameter | 8"–30"
• Rim Width | 2"–20"
• Tire Diameter | 44"
• Shaft Diameter | 40mm
• Footprint | 57"w x 55"d x 75"h
• Shipping Weight | 650 lbs.
• Part Number:
• 80016003D | 1PH, 220V
• 80016003D01 | 3PH, 220V

Optional Accessories (Sold Separately):

• 85610104 | 3, 4, 5 Lug Adjustable Pin Plate Set
• 5611072 | Double Sided Mazda Collet
• 112421 | Short Cone, Balancer, 40mm I.D., Range 2.650" - 3.025"
• 5009945 | Toyota Adapter Kit
• 113277C | Light Truck Cone Kit, 40mm
• 1141821 | 40 Ford ULA 3 Degree Cone

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
