Coats | SKU:
COA4T216SSR1

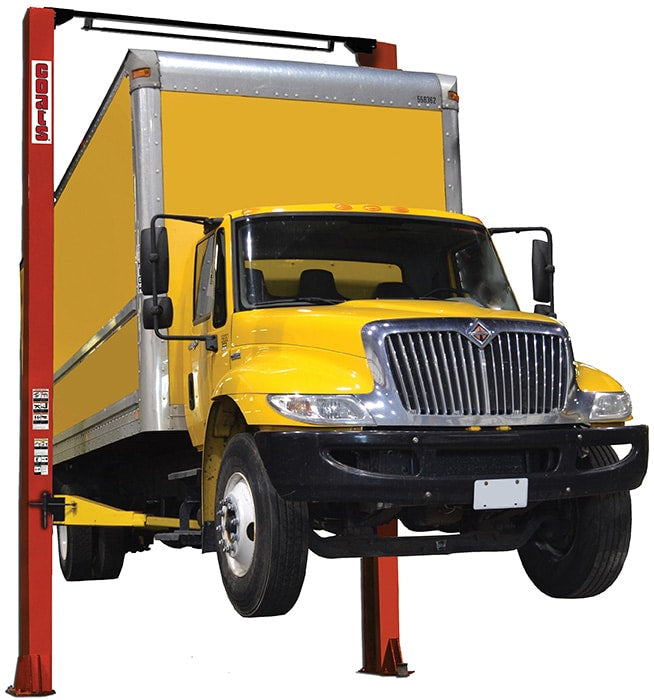

Coats 4T216SSR1 16,000 LB Capacity 2 Post Lift
$18,629.00
Unit price
/
Unavailable
Coats 4T216SSR1 16,000 LB Capacity 2 Post Lift is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Coats 4T216SSR1 16,000 Lb Capacity Two Post Lift.
REBATE | $1000 OFFER EXPIRES DECEMBER 15, 2024 | http://rebate.ammcoats.com/rebate.aspx
Features:
- Premium bake Powder coat Finish
- 5”/127mm Steel Pulleys & 3/8”/9.5mm IWRC 6 x 36 cables
- 1 piece 199 1/2”/ 5067mm column can be ordered shorter
- Replaceable plated heavy duty arm restraints
- Heavy duty 2 piece non sag adjustable arms
- Air release single point locking 7. Standard air regulator Filter
- Premium US Made Bucher 4Hp / 3kw Power Unit
- 72”/ 1829mm stroke cylinders raises 87 1/2” 2172mm
- 120 1/2”/ 3061mm space between columns
- Large irregular shaped base 17” x 31” / 432x 787mm
- Low arm pad drive over height 4” or 5” / 102 or 127mm
Specifications:
- Overall Height 199 1/2” (5067mm)
- B Overall Width 152” (3861mm)
- C Width Between Columns 120 1/2” (3061mm)
- D Drive Thru Width 106 3/4” (2711mm)
- E Under Bar Clearance 192 1/2” (4890mm)
- F Height to Lowered Lift Pad 4" (102mm)
- G Raised Height with Standard Pad 76" / 1930 mm
- H Raise Height with Adapters 87-1/2” (2222mm)
- I Front Arm Reach 34” to 62” (864mm to 1575mm)
- J Rear Arm Reach 34” to 62” (864mm to 1575mm)
- Lifting Time 75 seconds
- Standard Power Requirements 230 Volts - 60 Hz - 1PH - 20 Amp 4HP / 2 kw motor
- ALI Certified with Gold Label Yes
- Shipping Weight 3,350 lb.
- Model Number 4T220SSR1
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product. You must provide a way to get it off of the truck.)
