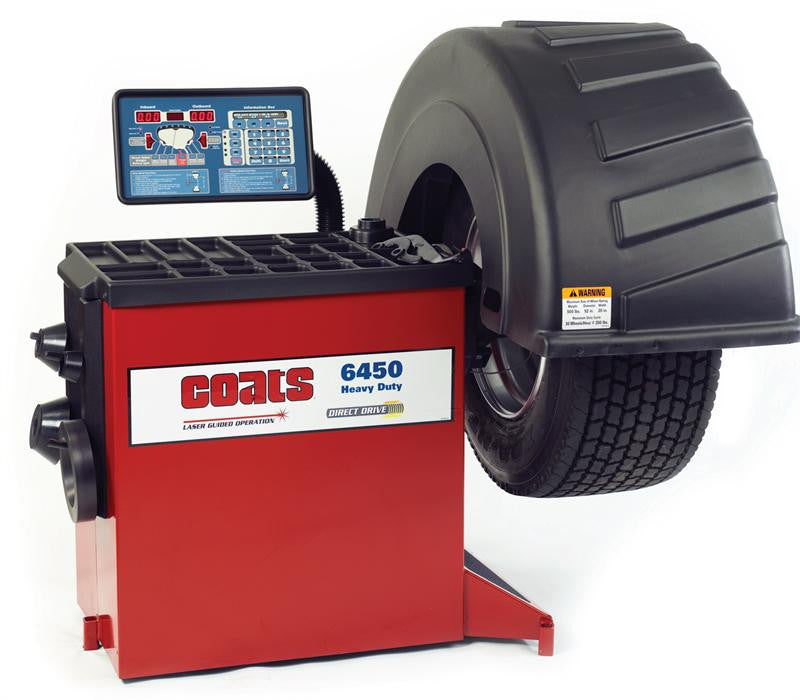

Coats 6450-3D Heavy-Duty Balancer

Take control of your toughest jobs with Coats heavy duty wheel balancers.  Our full line of heavy duty balancers are proven performers, and are some of the most robust wheel balancers you can buy.  They also come standard with loads of features that make your job faster and easier.

From the first push of a button, you're in complete control. Load wheel parameters and automatically index the wheel to the weight positions.  And with the Stop and Lock feature, you can lock the spindle firmly in place at the weight location for easier, more accurate weight installation.  Coats heavy duty balancers also come standard with an AC Vector Drive motor, which shaves 20 seconds off a typical 22.5" wheel spin.  And with the laser Tape-A-Weight weight placement capability, you'll achieve more one-spin balances than ever before.

It all adds up to making your toughest balancing jobs faster and easier, for years to come.

The Coats 6450 Series is a huge step forward.  Bar none, one of the best Heavy-Duty Balancers in the business.

Features:

• Powerful 1.5 HP direct drive motor shaves 20 seconds off a typical 22.5" spin
• Static on screen provides simultaneous display of static and dynamic data and identifies any excess residual static imbalance.
• DCS ensures the 6450 is the most accurate heavy duty balancer in car/light truck mode on the market, like two balancers in one.
• Laser weight placement for 3 parameter auto data entry in tape modes
• 500 lbs Met Lab / UL approved
• Designed for front line, high-volume balancing
• Easy-to-read LED readouts
• Auto Data Entry for all three parameters with one touch.  Just drop the hood and go.
• Auto indexing automatically moves the wheel to the required weight positions.
• Stop and Lock feature locks the spindle firmly in place for easier, more accurate weight placement

Static on Screen Display | Simultaneous display of static and dynamic data identifies any excess residual static imbalance

Laser Guided Operation | Pinpoints accurate Tape-A-Weight placements

Direct Drive | Coats direct drive wheel balancers feature a uniquely designed dynamic section (the system that senses and reports vibration to the balancer).  Our direct drive system integrates the balancer's robust motor and spindle into a single, factory pre-balanced assembly with ZERO noise that can result in balancing errors.

Specifications:

• Model | 3450-3D
• Drive System | Direct
• Tire Diameter | 52"
• Rim Width | 20"
• Maximum Tire Weight | 500 lbs (UL)
• Self Calibrating | Yes
• On Screen Calibration Directions | Yes
• Auto Data Entry | 3 Parameter
• Stop On Top | Stop & Lock
• Auto Indexing | Yes
• Operator A & B | Yes
• Match Mount | Yes
• Motor Size | 1.5 hp Direct
• Cycle Time | R11 22.5 (200 lb) 18 sec.
• Cones | 2 Auto, 2 Light Truck
• Ounce/Gram Selectable | Yes
• Adapter Storage | Side Pegs
• Direct Weight Placement | Yes
• Monitor / Display | LED w/ Text Instruction Box
• Balancing Modes | 11
• Shaft Diameter | 2" (51 cm)
• Resolution Displayed | .01 oz
• Accuracy | .01 oz
• Round Off | 1/4 - 1/2 - 2 oz.
• Footprint | 72" w x 62" d
• Shipping Weight | 1,100 lbs
• 220v/1ph @ 60hz | 8506450
• 220v/3ph @ 60hz | 850645001

Included Adapter Kits:

• 4 Cone Set / Range: 2.44" - 6.95"

Optional Adapter Kits (Sold Separately):

• 8109877 | Hub Centered Budd Cone Kit / Range: 8.52" - 8.89"
• 8110785 | Dayton Standard Center Adapter / Range: 20" - 22.5"
• 8110786 | Extension Kit for Standard Adapter / Range: 24.5" - 26"
• 8143935 | Stud Piloted Budd Adapter / Range: 22.5" and 24.5"
