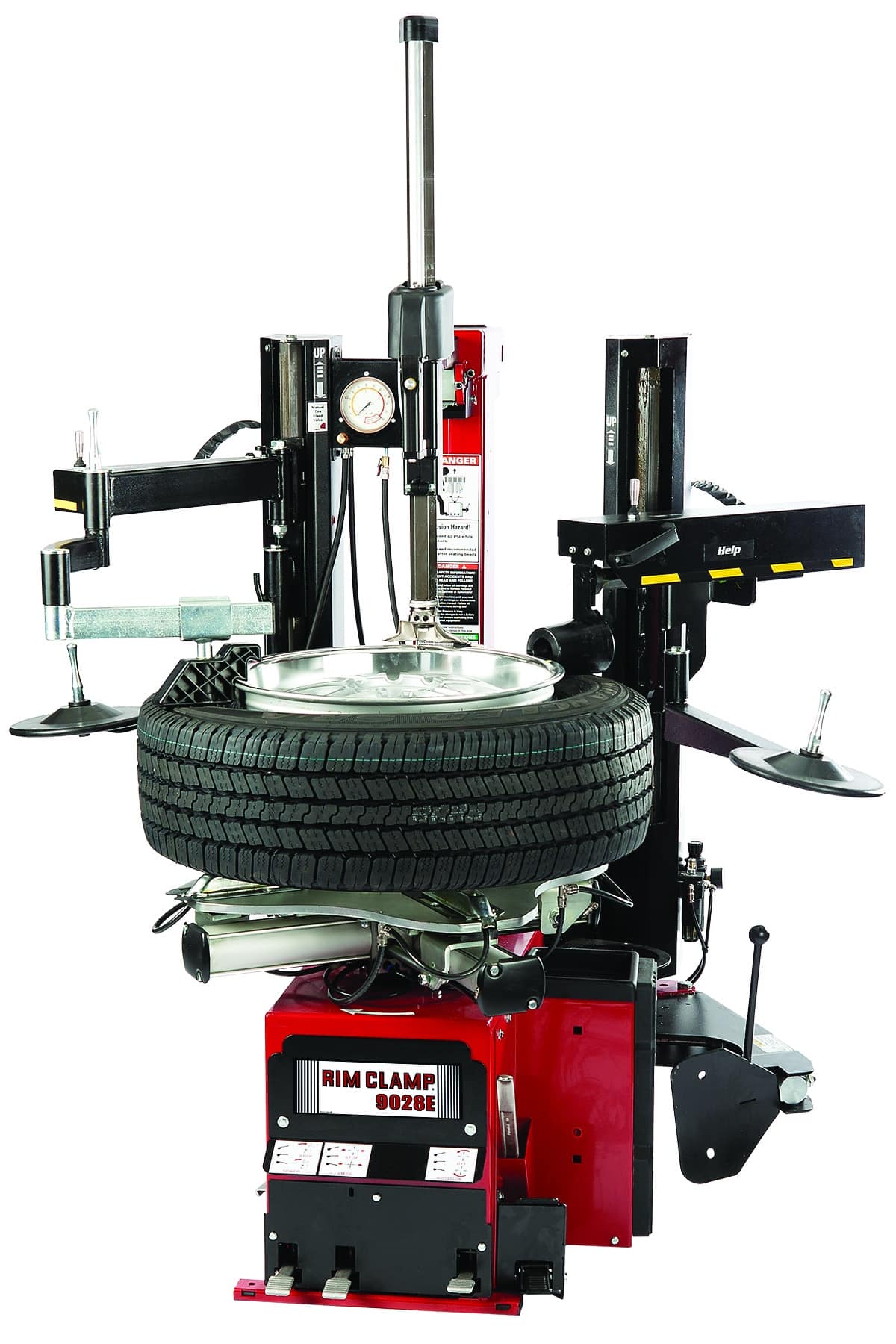

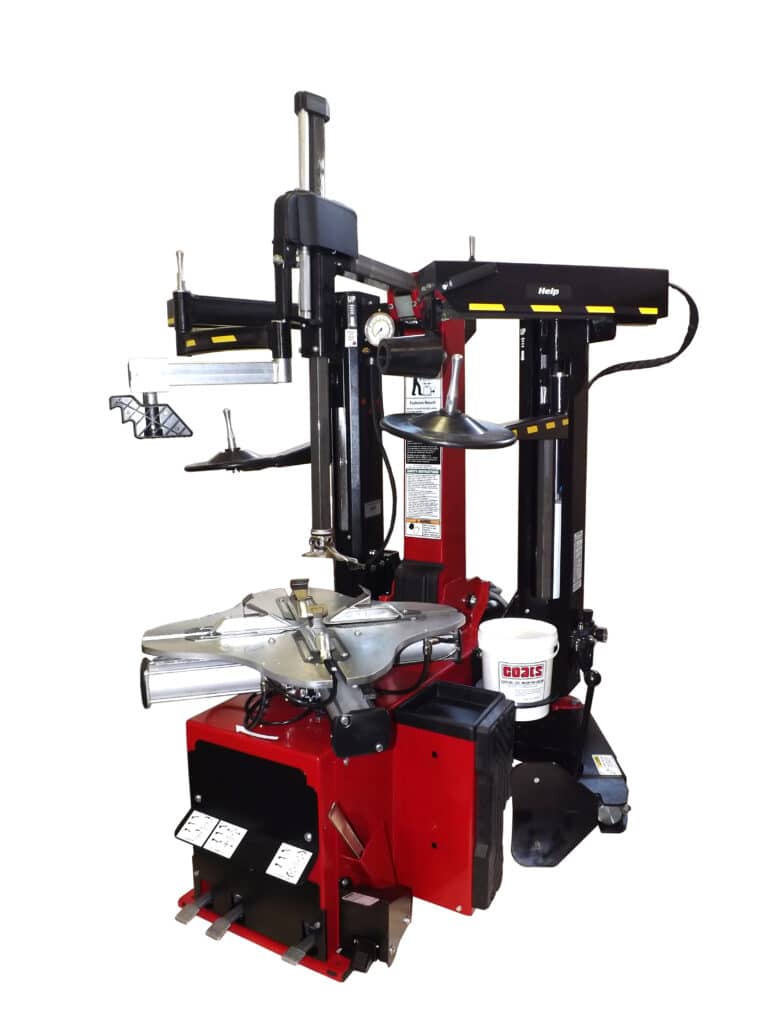

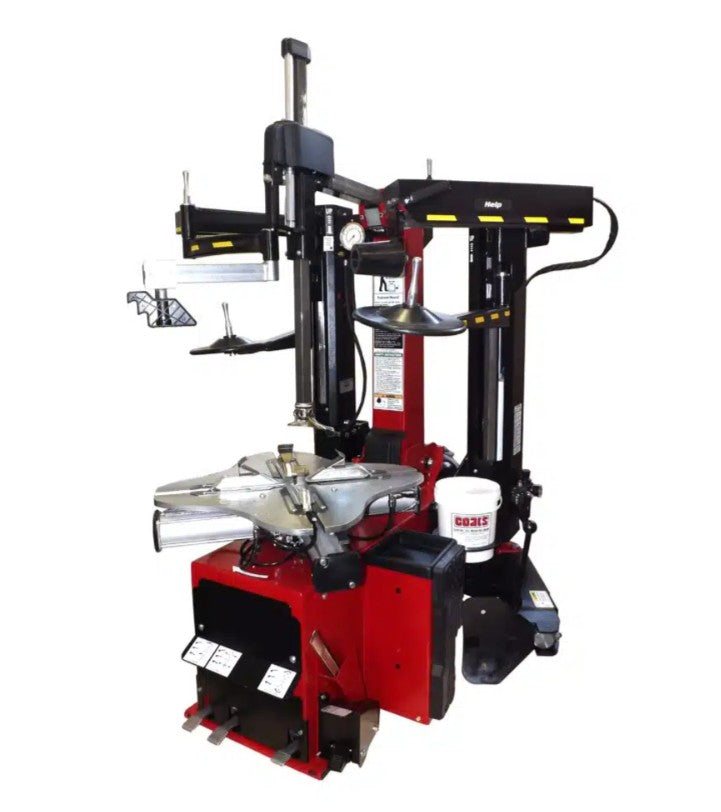

Coats 9028E Rim Clamp Tire Changer

Features:

• Tilt back tower
• Power devices

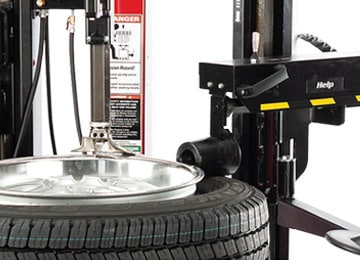

• Power taper roller

Specifications:

• Model Number | 9028E
• Part Number | 8009028
• Wheel Handled:
• Alloy
• Steel
• Car and Light Truck
• Rim Diameter | 10" - 28" External
• Maximum Tire Diameter | 47" Max
• Maximum Rim Width | 14" Max

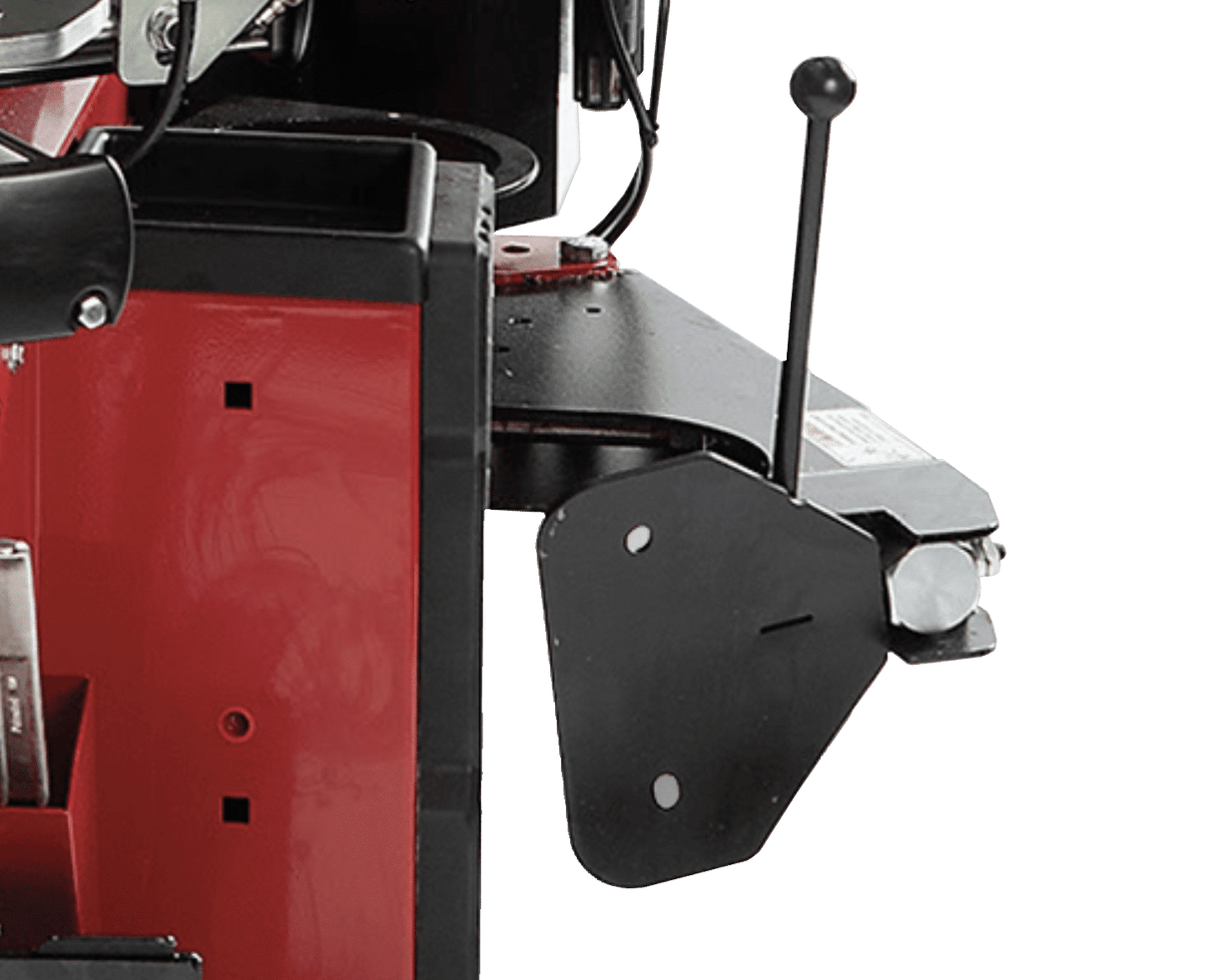

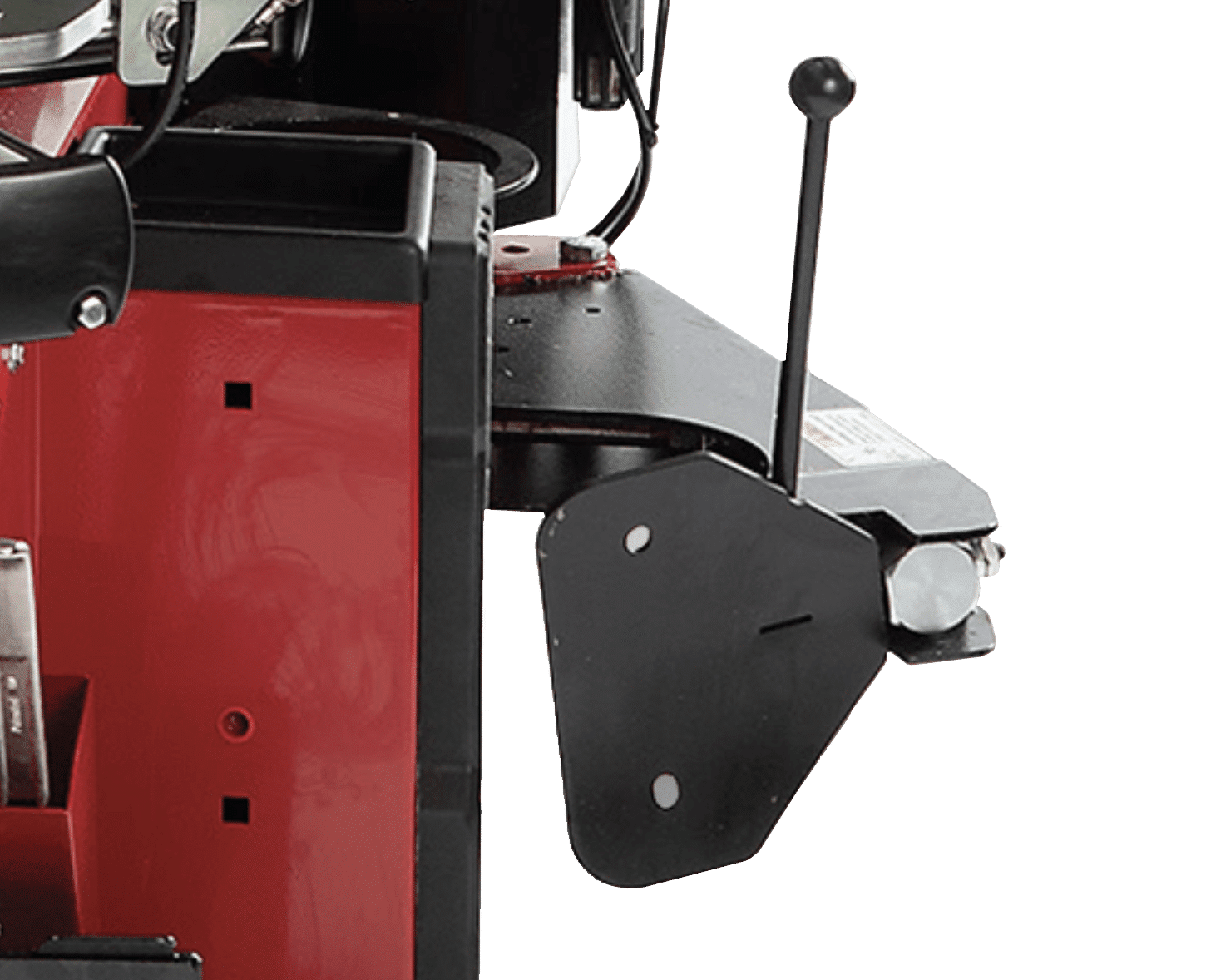

• Bead Loosening System | Foot Control, Up to 14" Wide

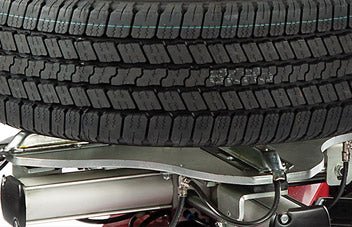

• Wheel Clamping System | 4 Cylinder Geared Actuation
• Mount/Demount Mechanism | Automatic Tilt Back
• Helper Devices:
• Lower Bead Roller Disc (left and right)
• Upper Bead Roller (right side)
• Bead Pressing Arm (left side)
• Bead Seating Air Volume | Vertical 5.3 Gallons in Tower
• Inflation Gauge | 0 - 60 psi
• Air Supply Gauge | 0 - 230 psi
• Electric Drive System | 125 V, 60 Hz, 30 amp, NEMA L5-30P
• Footprint | 79"w x 76"d x 86"h
• Ship Weight | 988 lbs.
• Warranty | 1 Year Parts, 6 Months Labor

Included Accessories:

• 84296517 | Paste Lube Brush
• 8183710 | Paste Lube Bucket
• 89219196 | Bead Shovel Plastic Protectors
• 89209612 | Clamp Plastic Protectors (6)
• 89219195 | Bead Lever Plastic Protectors (2)
• 89210961 | Plastic Mounting Tool Kit
• 89209611 | Plastic Protectors for Mount/Demount Tool (6)
• 89236146 | Duckhead Plastic Protectors
• 83006970 | Bead Lifting Lever
• 8185590 | Clamp Extensions (4)

Optional Accessories (Sold Separately):

• 889233410 Extension Foot
• 89240910 Wheel Lift

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
