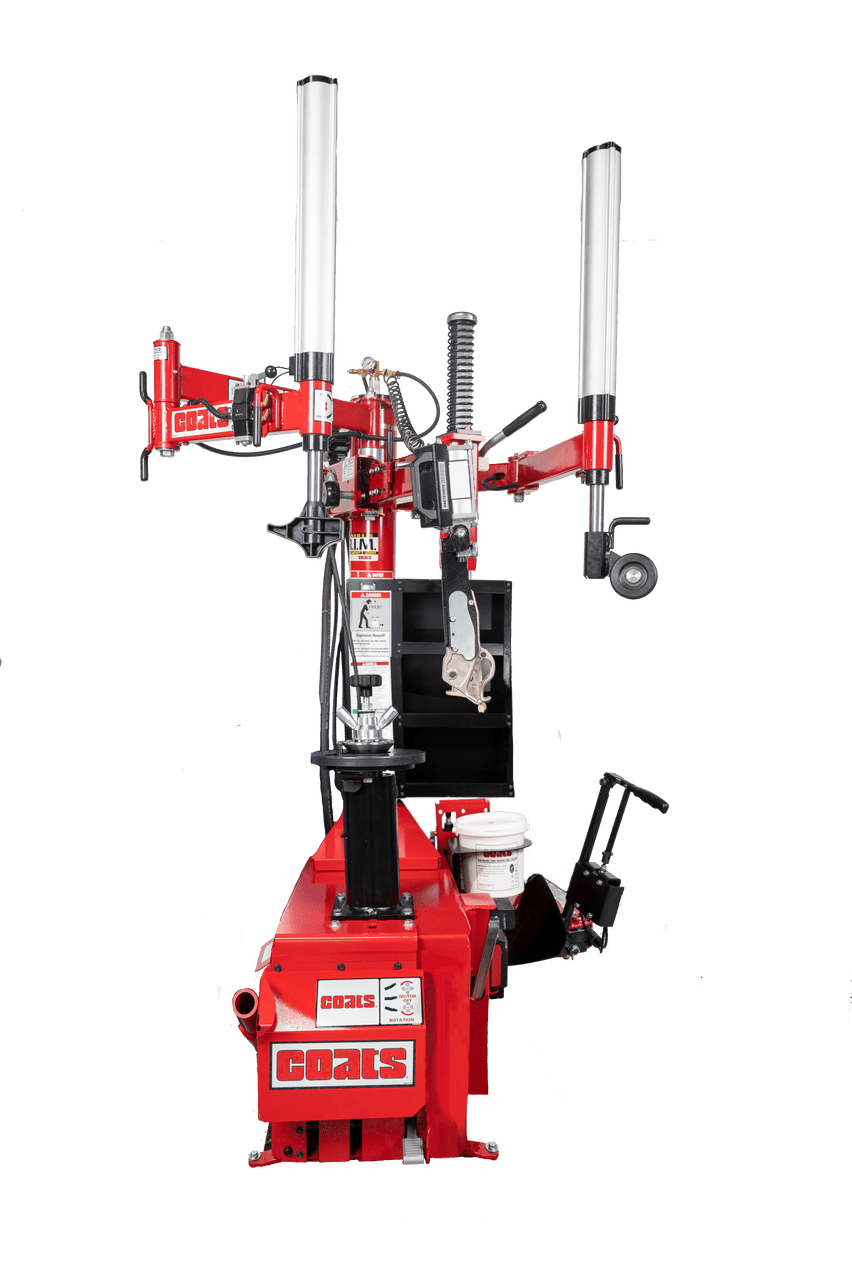

Coats 90CA Leverless Tire Changer -Air Model

Classic swing arm speed with the confidence of a center clamp and leverless design.

Features:

• Center Clamp Design | Center Clamp Design for quick, easy operation while minimizing risk of wheel damage
• Leverless Duckhead Mount/Demount Tool | This feature acts as a traditional helper device and eliminates traditional tire tools that can mar the surface due to application difficulty
• RoboRoller Powered Assist | The RoboRoller provides additional power when mounting difficult tires by preventing the bead from rolling back over the mount tool

Specifications:

• Wheels Handled | Alloy and Steel for Car and Light Truck
• Rim Diameter | 12" - 30"
• Maximum Tire Diameter | 50" Max
• Maximum Rim Width | 15" Max
• Bead Loosening System | Hand Control - Power In/Out and Freeze
• Wheel Clamping System | Center Clamp with Manual Lock
• Mount/Demount Mechanism | Leverless Duckhead Mount/Demount Tool - no tire bar necessary
• Helper Devices | Robo-Arm (18" of Automated Vertical Stroke) RoboRoller
• Bead Seating Air Volume | 5.4 Gallons in Tower
• Inflation Gauge | 0 - 60 psi
• Air Supply Gauge | 0 - 300 psi
• Air Drive System | 1.5 HP Air Motor, 110 - 175 psi, 15 scfm
• Footprint | 74"w x 88"h x 65"d
• Ship Weight | 700 lbs.
• Warranty | 3 Year Parts, 6 Months Labor

Included Accessories:

• 85606545 Auxiliary Bead Sealer (ABS)
• 8183606 Bead Loosener Shoe Socks - 2
• 85009048 Paste Lube Bracket & Brush
• 83019057 Protection Cone for Center Lock - 2
• 89233409 Leverless Duckhead mount/demount tool plastic inserts
• 8183710 Paste Lube
• 83031335 Anti-Rotation Extension Pin
• 83032475 Light Truck Cone - 5.86" Center Bore
• 89231517 Rubber Protection Pad - 2
• 85610105 Premium Storage Cabinet
• 85612559 Reverse Mount Adapter
