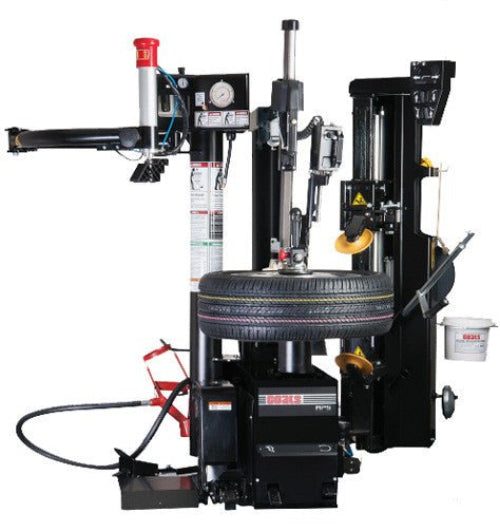

Coats APS 3000 Leverless Tire Changer

Engineered for complete customer satisfaction

Ideal machine for Custom or Specialty Wheels and Run-Flat Tires.

SPECIFICALLY DESIGNED TO HANDLE EXPENSIVE AND DELICATE WHEELS.

Our APS tire changers share core elements with many of our other products, but we’ve added advanced innovation as you move up the line. That’s why a Coats APS tire changer is ideal for changing difficult, expensive or delicate wheels for your discerning customers.

Top Features:

• LEVERLESS DUCKHEAD WITH AUTO-OFFSET | Bead lifting tool eliminates traditional tire tools, and automatically offsets from the rim to prevent wheel damage.
• TILT-BACK TOWER | Provides operator more room to work and holds tool position automatically.
• CENTER POST DESIGN | Center post clamping system with Smart Lock cam quickly locks wheels into place with minimal effort.

Features:

• AUTO-RETRACTING ROBO ARM | Automatically swings back to home position after use to stay out of the operators way.
• AUTO-OFFSET LEVERLESS DUCKHEAD | Automatically offsets away from the rim to minimize risk of rim damage.
• INTEGRATED WHEEL LIFT | Lifts heavy assemblies reducing both damage risk to expensive wheels and back strain.
• TWO-SPEED ELECTRIC MOTOR | The two-speed electric motor provides total control with the option to maximize shop efficiency based on application difficulty.
• UPPER AND LOWER BEAD LOOSENER AND ROLLER DISCS | Individually Operated Power Rollers provide easy bead loosening and assistance with mounting - also demounts lower bead without a tire tool.
• CENTER POST DESIGN WITH SMART LOCK | Allows for fast and easy wheel clamping.

Specifications:

• Model Number | APS3000
• Part Number | 800APS3000
• Clamping Range | 12" - 34"
• Maximum Tire Diameter | 47"
• Maximum Rim Width | 16"
• Operating Pressure | 115 - 145 psi
• Bead Loosening System | Roller Disc
• Wheel Clamping System | Manual
• Mount/Demount Mechanism | Leverless/Tilt-back
• Helper Devices | Robo-Arm, Bead Loosener Disks
• Bead Seating Air Volume | On Machine
• Inflation Gauge | Standard
• Air Supply Gauge | Standard
• Power Supply | 230V, 50/60 Hz, 1 ph, 20A
• Footprint | 90"h x 77"w x 75"d
• Ship Weight | 940 lbs.
• Warranty | 1 Year Parts, 6 Months

Accessories (Sold Separately):

• 89231517 | Table Top Pad (2)
• 82041474 | Adjustment Knob for Smart Lock
• 83040730 | Plastic Cone (70mm)
• 89231516 | Plastic Protectors for Smart Lock Centering Cone (2)
• 83032133 | Pin Extensions (Medium - 33mm)
• 83031335 | Pin Extensions (Large - 72mm) (2)
• 89231518 | Positioning Pin Bootie
• 89237711 | Manual Bead Depressor
• 89231515 | Plastic Protectors for Mount/Demount Tool (3)
• 8183710 | Paste Lube Bucket
• 85000850 | Paste Lube Brush
• 83032475 | Light Truck Cone
• 89242832 | Reverse Mount Adaptor
• 89231513 | Light Truck Cone (140 - 220 mm center hole)
