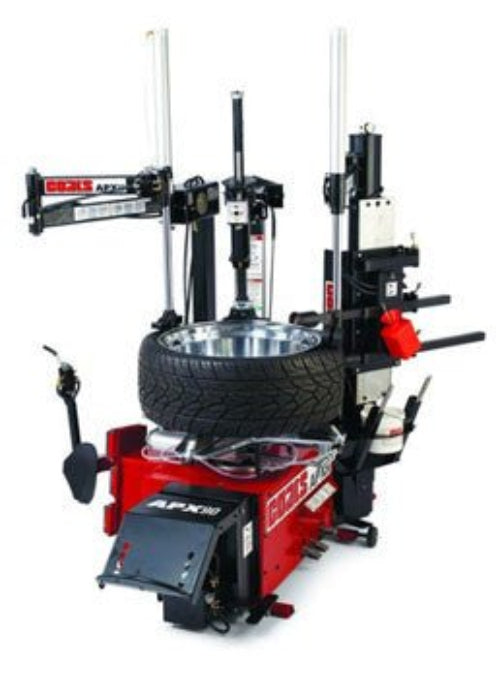

Coats APX90 Air Rim Clamp Tire Changer

The Tire Changer Platform for the Future

Wheels are getting larger, heavier and more expensive. New tire systems are becoming tougher to change. Today, tire service is more challenging than it’s ever been—and choosing the right equipment to serve your customers is even more critical.

The APX90 was designed to change the toughest run flats and extra-large custom wheels with ease—including Michelin PAX (with optional accessory kit). Without strenuous effort and without damage to expensive custom wheels. Not only are these tough jobs made easy, but the APX90 makes quick and efficient work of conventional tires and wheels. The Coats APX90 provides a path to increased shop efficiency and profitability, enabling you to service virtually any job that comes in your shop.

The APX90 can handle nearly any application, with the ability to service wheels from 9" to 30" externally and without the need for additional adapters. At the same time it provides an ergonomic user experience with intuitive and easy to operate features, so that you can focus on changing tires without complicated training issues. Capacity, Productivity, and Protection—the Coats APX90 delivers on all counts.

Protecting Expensive Wheels

When your customers entrust you with their expensive wheels, you need a tire changer that you can count on to do the job safely and without worry. With features such as the Coats® exclusive bead loosening system, the APX90 was designed from the ground up to give peace of mind for even the most challenging jobs.

Increasing Shop Productivity

As tires and wheels get larger and heavier, they also get harder to change. With features such as an integrated wheel lift and more power helpers than any other tire changer, the Coats APX90 helps your staff work faster and more efficiently. And because the Coats APX90 has evolved from the most popular family of tire changers in the United States, it is intuitive and easy to operate. Technicians can focus on the customer rather than complex training.

Maximizing Your Investment

We know tires and wheels will continue to change. Coats engineered the APX90 so that it can adapt and be enhanced for the future. That means your equipment investment lasts.

Key Features

• Large clamping capacity to externally clamp wheels up to 30" or as small as 9" in diameter to maximize service flexibility.
• High-torque electric turntable gives you the power you need for tough applications.
• Three-position hand-operated bead-loosener provides complete control, reducing wait time and minimizing risk of wheel damage.
• Duckhead roller prevents top bead from flipping over Duckhead mount head on large, stiff sidewall tires.
• Robo-Arm helper device applies pressure to create bead lock and hold top bead in drop center when mounting.
• Horizontal power rollers allow easy bead and rim lubrication, loosen top beads, and assist in mounting run-flat and low-profile tires.
• Ergonomically positioned foot pedals and helper controls located at point of use minimize training and opportunities for error.
• Built-in wheel lift raises heavy wheels to tabletop height, reducing operator effort and the risk of wheel damage while improving control.
• The Robo-Roller comes installed, and it is used on the toughest of tires to help keep the following bead in the drop center.

WE OFFER A 5% DISCOUNT ON THIS ITEM FOR GOVERNMENT ENTITIES. TO CLAIM THE DISCOUNT, PLEASE ENTER CODE: GOV5 AT THE CHECKOUT.  PLEASE NOTE THAT IF YOU CLAIM THE DISCOUNT AND ARE DEEMED NOT A GOVERNMENT AGENCY, YOU WILL BE CONTACTED FOR THE ADDITIONAL 5% PAYMENT PRIOR TO ORDER PROCESSING

Specifications:

• Drive System: APX90E - Electric or APX90A - Air
• Wheels Handled: Steel, alloy, and high-performance
• Rim Diameter: 9” - 30” Outside Clamps OR 11” - 32” Inside Clamps
• Maximum Tire Width: 16”
• Tire Diameter: 44”
• Mount/Demount Mechanism: Tilt back with automatic safety lock.
• Tool Head Offset Adjustment: Pneumatic lift, set back, and lock, 18” Clearance Duckhead to Clamps.
• Shape of Tabletop: “X” shaped for rigid perimeter support of the wheel.
• Wheel Clamping Method: Four self-cleaning and self-centering clamps in table top actuated by two pneumatic cylinders.
• Bead Loosening System: Hand actuated 8” dual action cylinder for wheels up to 16” wide.
• Helper Devices: RoboArm, RoboRoller, Horizontal Power Rollers, Duckhead Roller, Wheel Lift.
• Bead Seating Reservoir: 5.7 gal. separate tank, pressure protected.
• Pressure Limiter: Standard
• Filter Lubricator: Standard with automatic drain and large capacity lubricator bowl.
• Inflation Gauge: Easily calibrated 0 to 60 PSI gauge with protection to 200 PSI. Damage resistant Lexan faceplate.
• Electric Drive System:2HP high-torque, 110v, single phase,25 amp.
• Required Air Source: 110 to 175 PSI 2HP compressor 5 SCFM @ 150 PSI (for Electric Model); 15 SCFM @150PSI (for Air Drive Model).
• Operating Footprint:90” x 102”
• Shipping Weight: 1,510 lbs.
