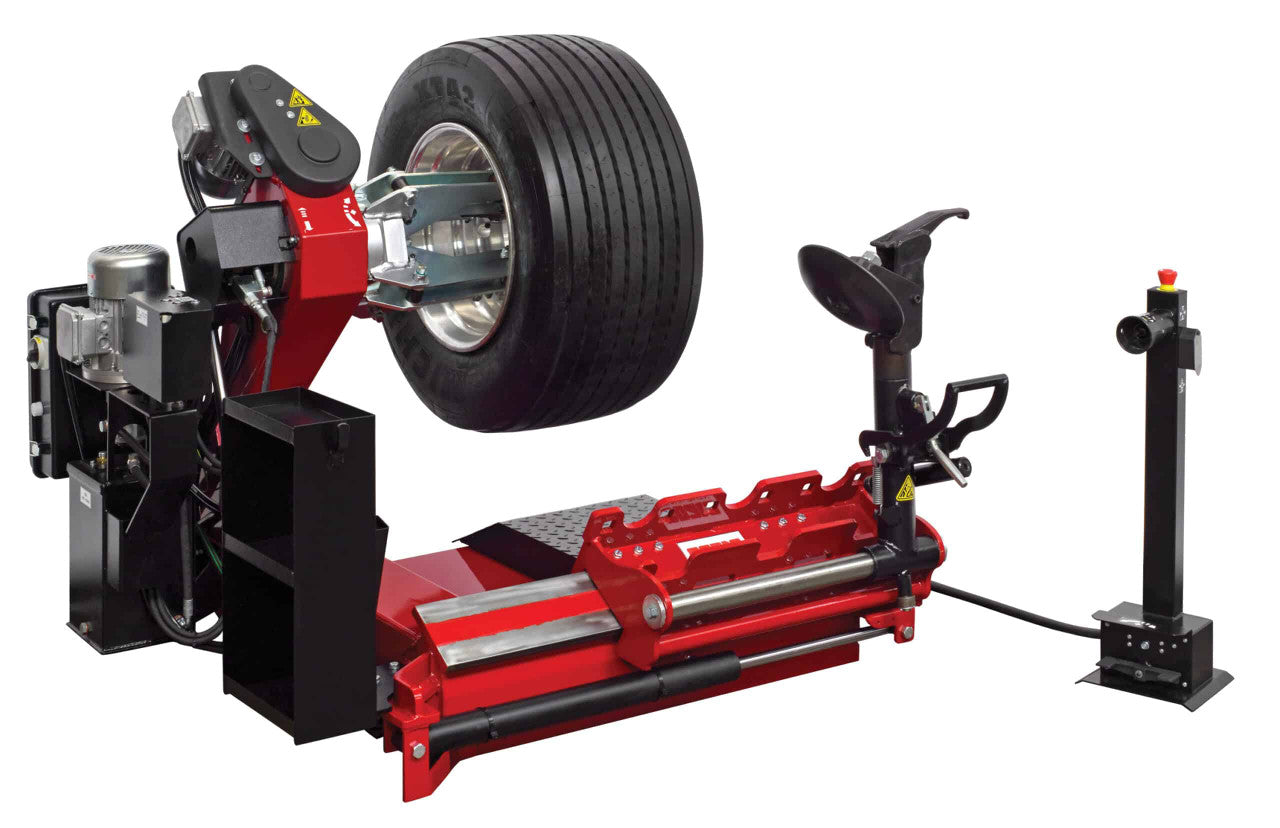

Coats CHD-63301PH Heavy Duty Tire Changer - 1 Phase

REBATE | $1000 OFFER EXPIRES DECEMBER 15, 2024 | http://rebate.ammcoats.com/rebate.aspx

The smart choice as your volume increases! It's the most compact of the jaw-style clamping machines available today. This easy-to-learn model is designed for shops with moderate to high volume with a wide range of applications.

Features:

• Four-jaw chuck allows fast and easy clamping of virtually all rim styles, including de-mountable, reverse disc, standard disc, and off-road style wheels.
• Floating jaws match wheel contours for excellent grip and safety.
• Solid, single-piece frame for added capacity and reliability.
• Portable wired control unit lets you work from the best angle at all times.
• Handles rims from 13" to 27" and tires up to 63" in diameter and 30.5" wide.

Specifications:

• Max. Tire Diameter | 63" (1600 mm)
• Max. Tire Width | 30.5" (780 mm)
• Rim Diameter Range | 13"-27"
• Electric Specifications | 120V, 1 phase, 60hz, 24 amps
• Hydraulic Motor Power | 2.0 HP (1.5 kW)
• Chuck Rotation Motor Power | 1.5-2 HP (1.1-1.5 kW)
• Max. Chuck Torque | 4816 ft/lbs (3552 Nm)
• Clamping Power | 7407 lbs (3360 kg)
• Chuck Rotation Speed | 8-16 rpm
• Max. Wheel Weight | 3300 lbs (1500 kg)
• Acoustic Pressure | <70dBA
• Single piece frame with solid floor-plate | Yes
• Tool Arm Positioning | Manual
• Tool Head Positioning | Manual
• Max. Overall Dimension | 69"(w) x 68.5"(d) x 50"(h)
• Weight with Standard Accessories | 1245 lbs (565 kg)

Standard and Optional Accessories:
