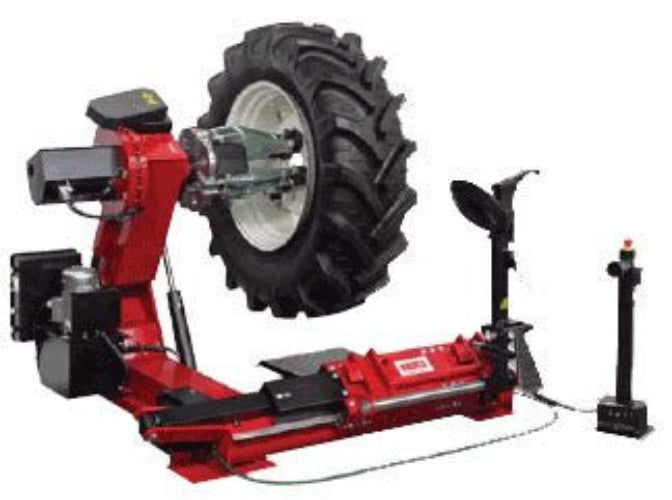

Coats CHD-9041 Heavy Duty Tire Changer

Step up to a full range of fitment solutions! A great solution for moderate to high volume shops and fleets where fitments vary widely, including agricultural applications.

Features:

• Extended capacity four-jaw chuck, which allows for use on a massive range of applications.
• Open frame design for easy wheel movement.
• Handles rims from 14” to 46” (up to 56” with clamp extensions) and tires up to 90.5” in diameter and 42” wide.

Specifications:

• Max. Tire Diameter | 90.5" (2300 mm)
• Max. Tire Width | 42" (1065 mm)
• Rim Diameter Range | 14"-46" (47"-56" with clamping extensions)
• Electric Specifications | 208-230VAC, 3ph, 60Hz, 15Amp
• Hydraulic Motor Power | 2.0 HP (1.5 kW)
• Chuck Rotation Motor Power | 1.7-2.4 HP (1.3-1.8 kW)
• Max. Chuck Torque | 5262 ft/lbs (3881 Nm)
• Clamping Power | 10,362 lbs (4700 kg)
• Chuck Rotation Speed | 5-11 rpm
• Max. Wheel Weight | 3300 lbs (1500 kg)
• Acoustic Pressure | <70dBA
• Single piece frame with solid floor-plate | No
• Tool Arm Positioning | Manual
• Tool Head Positioning | Manual
• Max. Overall Dimension | 88"(w) x 79"(d) x 59"(h)
• Weight with Standard Accessories | 1698 lbs (770 kg)

Standard and Optional Accessories:
