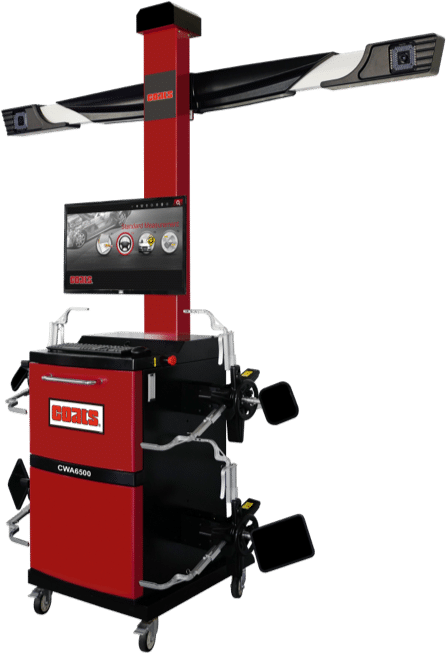

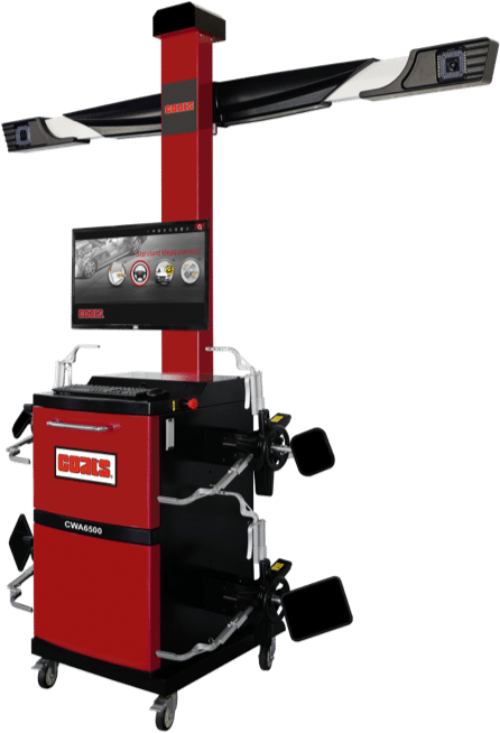

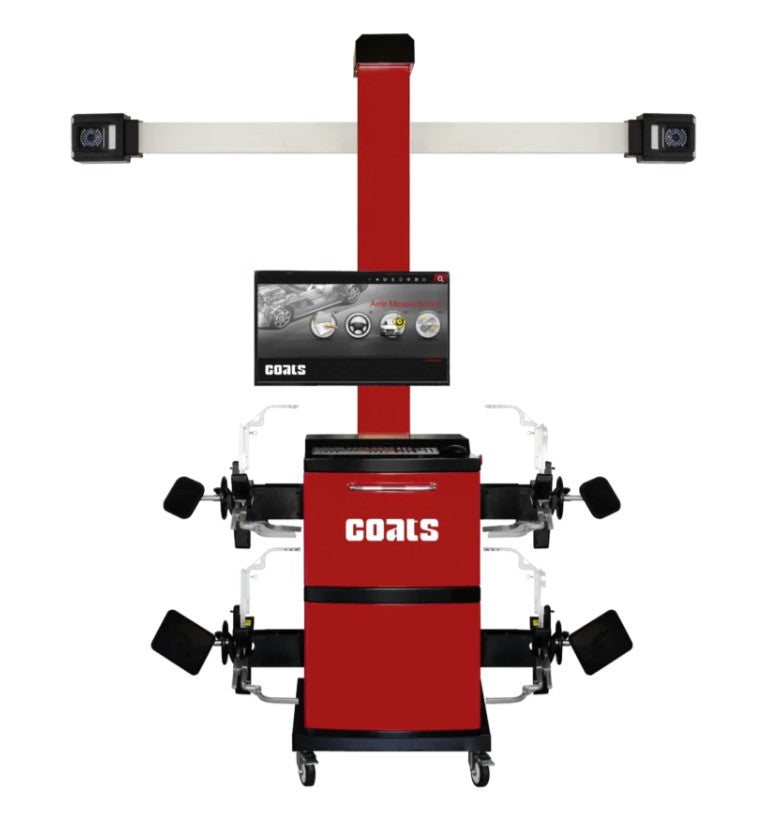

Coats CWA6500 3D Aligner

The Coats CWA6500 3D Aligner is a fast all in one alignment solution. Coats created a system that will not only help you align any vehicle that comes through your shop, but do it efficiently and easily.

Features:

• Extendable clamps up to 43”
• No need for swapping out adjustable arms
• No metal to metal contact
• Quickly install with one turn
• QC20 clamps are self-centering
• Align specialty wheels without damage

Specifications:

• Minimum Installation Distance | 71”
• Maximum Installation Distance | 120”
• Recommended Installation Distance | 95”
• Self-Centering Wheel Clamps (4) | 13”- 24.5” on rim
• Tire Gripping Adapters (4) | 20”- 43” on tire
• Monitor | 32”
• Motorized Camera Beam | 89”
• VIN Scanner | Standard
• Electrical Requirements | 115v 1PH, 15 amp
• Dimensions | 106"h x 31"d
• Shipping Weight | 550 lbs.
